Panasonic MSMD012P1U Original Industrial Spare MINAS A5 Compatible

Product Overview

Panasonic MSMD012P1U Original Industrial Spare MINAS A5 Compatible: Ensuring System Stability in Demanding Automation Environments

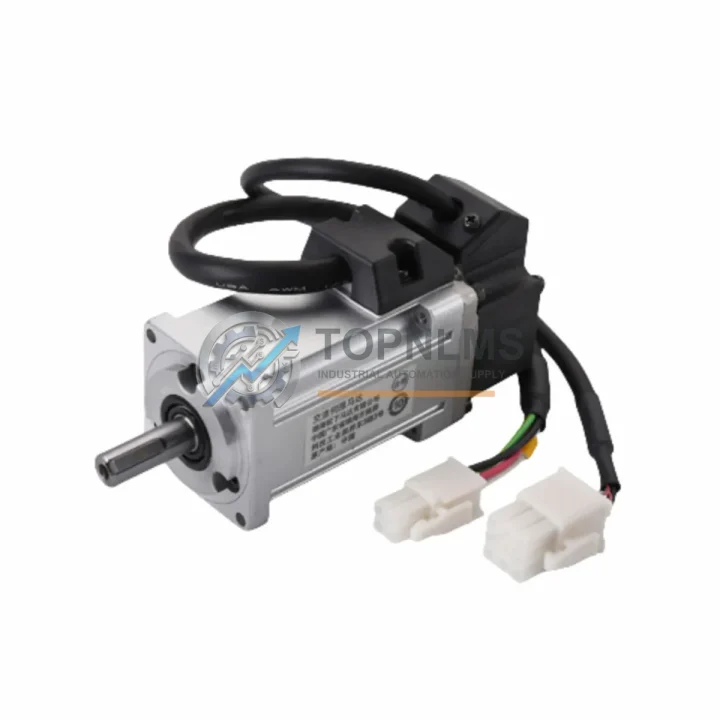

The Panasonic MSMD012P1U is a 100W AC servo motor from the MINAS A5 series, engineered for precision motion control in industrial automation systems. Rated at 3000 rpm with an IP65 ingress protection rating, this motor is a critical drive component in CNC machining centers, robotic arms, packaging lines, semiconductor handling equipment, and general-purpose servo-driven axes. When a servo motor fails on the production floor, every minute of downtime translates directly into lost output and escalating maintenance costs. Stocking a verified original MSMD012P1U as a ready-to-deploy spare is one of the most cost-effective decisions a maintenance engineer can make.

At TOPNLMS, every MSMD012P1U unit is sourced from authorized supply channels, individually inspected prior to dispatch, and covered by a 12-month warranty. Our fulfillment process includes functional verification, secure anti-static packaging, and full documentation support to ensure the part arrives ready for immediate installation.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your MINAS A5 Servo System

A servo motor does not fail in isolation. The MSMD012P1U operates as part of an integrated motion control loop, and its long-term reliability depends on the health of every upstream and downstream component in the servo axis. When scheduling a planned maintenance window or responding to an unplanned shutdown, experienced maintenance teams know that replacing only the failed component without inspecting the surrounding system is a recipe for repeat failures.

Begin any MINAS A5 servo axis inspection by verifying the condition of the servo driver (e.g., MADDT1207 or MBDDT2210). The driver and motor are tuned as a matched pair; a degraded driver can cause premature motor winding stress, encoder communication errors, and erratic torque response. If the motor has failed due to overcurrent or overload, the driver’s internal IGBTs and capacitors should be evaluated before reinstalling a new motor.

Next, inspect the encoder cable and motor power cable. Panasonic MINAS A5 systems use dedicated shielded encoder cables (e.g., MFECA series) with locking connectors. Cable insulation breakdown, connector pin corrosion, or shield discontinuity are among the most common root causes of servo alarm codes (e.g., Err 25.0 encoder disconnection). Replacing the MSMD012P1U without renewing a degraded encoder cable will result in recurring faults.

The servo power supply module feeding the driver bus should also be checked. Voltage sag or ripple on the DC bus rail can cause the driver to generate nuisance over-voltage or under-voltage alarms, which are often misdiagnosed as motor faults. If your control cabinet uses a Panasonic or third-party 24V DC power supply for logic circuits, verify its output stability under load — logic power instability can corrupt parameter memory in the driver.

For systems using I/O expansion modules or relay output modules to interface the servo ready signal, servo alarm output, or brake control signal, inspect the relay contacts and terminal connections for oxidation. A high-resistance contact in the servo enable circuit can cause intermittent axis faults that are difficult to reproduce during static testing. Similarly, terminal blocks and DIN rail connectors in the servo axis wiring should be re-torqued and inspected for thermal discoloration, which indicates sustained overload conditions.

If the MSMD012P1U is part of a multi-axis system, consider auditing the communication module or motion controller (e.g., Panasonic FP series PLC or a third-party EtherCAT master) for firmware currency and parameter backup integrity. A corrupted axis parameter set can cause the replacement motor to behave unexpectedly during the first commissioning run. Always restore from a verified parameter backup before powering up a newly installed servo motor.

Finally, if the machine uses an electromagnetic brake motor variant in adjacent axes, verify brake release voltage and brake wear. Brake drag on a neighboring axis can impose unexpected load on the MSMD012P1U axis, accelerating bearing wear and thermal stress. Proactive replacement of brake modules and signal isolators in the brake control circuit is a low-cost intervention that significantly extends servo motor service life across the entire machine.

Strategic Replacement Solutions: Minimizing Downtime with Original Spare Parts

The MINAS A5 series has been in production for over a decade and remains widely deployed across Asia, Europe, and the Americas in both OEM machine builds and retrofit projects. However, as machines age and original documentation becomes harder to source, maintenance teams increasingly face the challenge of identifying correct replacement parts under time pressure.

The MSMD012P1U is a direct drop-in replacement for any MINAS A5 100W servo motor application using a 60mm flange, straight shaft, and 200V AC supply. It is fully compatible with existing MINAS A5 driver parameter sets, eliminating the need for re-tuning in most standard applications. This plug-and-play compatibility is a critical advantage over generic or counterfeit alternatives, which may require parameter adjustment, exhibit reduced encoder resolution, or carry no warranty coverage.

For facilities managing aging MINAS A4 or earlier Panasonic servo systems, the MSMD012P1U combined with a compatible A5 driver represents a cost-effective modernization path that preserves the existing mechanical interface while upgrading control performance. This approach avoids the capital expenditure of full machine replacement while extending productive service life by five to ten years.

TOPNLMS maintains ready stock of MSMD012P1U units to support emergency procurement scenarios. Standard lead time from order confirmation to dispatch is 1–3 business days, with express shipping options available for critical production line recovery situations. All units are dispatched with inspection records and are eligible for the 12-month warranty from the date of shipment.

Support FAQ

Q1: Is the MSMD012P1U covered by a warranty, and what does it include?
Yes. Every MSMD012P1U sold by TOPNLMS carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and verified functional failures under normal operating conditions. Each unit undergoes pre-shipment inspection, and warranty claims are supported with replacement or refund resolution within agreed service timelines. Contact [email protected] to initiate a warranty claim.

Q2: How do I verify compatibility between the MSMD012P1U and my existing MINAS A5 driver?
Compatibility is determined by the driver model number and the motor capacity code. The MSMD012P1U (100W) is compatible with MINAS A5 drivers rated for 100W motors, such as the MADDT1207. Verify the driver nameplate and cross-reference with the Panasonic MINAS A5 motor-driver combination table. If you are unsure, provide your driver model number to our technical team at [email protected] and we will confirm compatibility before you place an order.

Q3: Can the MSMD012P1U replace motors from older Panasonic servo series such as MINAS A4?
The MSMD012P1U is a MINAS A5 series motor and is not directly backward-compatible with MINAS A4 drivers at the connector and parameter level. However, it can be used as part of a driver-and-motor upgrade where both the motor and driver are replaced simultaneously. This is a common and cost-effective modernization strategy for aging A4-based systems. Our team can advise on the appropriate A5 driver pairing for your specific application.

Q4: What is your recommended inventory strategy for servo motors in a multi-axis production environment?
For facilities operating three or more MINAS A5 servo axes, we recommend maintaining at least one MSMD012P1U unit per motor power class as a cold standby spare. For high-criticality axes (e.g., main spindle, primary feed axis), a hot standby with pre-loaded parameters is advisable. Servo motors have a typical MTBF of 20,000–30,000 hours under rated conditions; proactive spare stocking based on machine age and duty cycle significantly reduces mean time to repair (MTTR) and protects production throughput.
