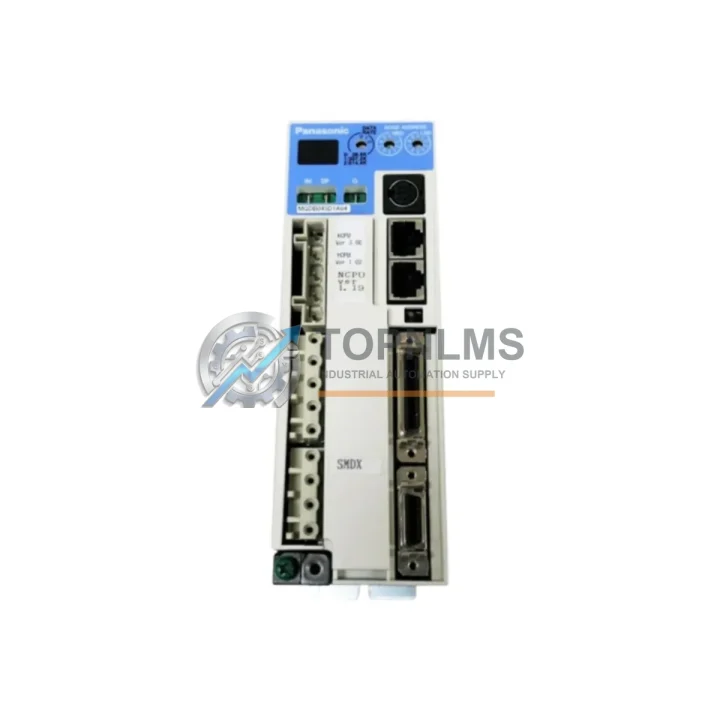

Panasonic MQDB045D1A04 Ruggedized AC Servo Drive: Industrial Resilience for Harsh Environments

The Panasonic MQDB045D1A04 is a 400W three-phase AC servo drive from the renowned MINAS A6 Series, engineered to deliver precise motion control and unwavering reliability in the most demanding industrial environments. Designed for continuous operation in high-temperature workshops, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing lines, this servo drive is a cornerstone component for engineers who cannot afford downtime.

Built on Panasonic’s advanced MINAS A6 platform, the MQDB045D1A04 integrates seamlessly into modern automation architectures, supporting EtherCAT and MECHATROLINK-III communication protocols for deterministic, real-time control. Its compact form factor and robust thermal management make it equally suited for dense control cabinet installations and standalone machine-mounted configurations.

Rugged Specifications Table

Comprehensive Protection Solutions

The MQDB045D1A04 is rarely deployed in isolation — it operates as part of a tightly integrated motion and control ecosystem. In a typical servo system, this drive pairs directly with a Panasonic MINAS A6 servo motor (such as the MHMF042L1U2M or MSMD042L1U2M series), forming a matched drive-motor set that maximizes torque linearity and encoder fidelity. For multi-axis machine tools or robotic assembly lines, it is commonly coordinated through a Panasonic FP-X or FP0R PLC, which handles high-speed pulse output and position latch functions critical for precision indexing.

In control cabinet designs, the MQDB045D1A04 is typically installed alongside a Panasonic BFV series variable frequency drive for auxiliary motor control, and a Panasonic LP-S series industrial power supply to ensure clean, regulated 24VDC logic power. Surge and transient protection is handled upstream by a Panasonic DVOP series EMC filter or equivalent line reactor, which is especially important in facilities with heavy welding equipment or large motor starts that generate significant line-side disturbances.

For safety-critical applications, the STO input of the MQDB045D1A04 is wired to a Panasonic SF4B safety light curtain controller or a dedicated safety relay module (such as the Pilz PNOZ or Omron G9SA series), ensuring IEC 62061 SIL 2 compliance for the overall machine safety function. Communication integrity across the EtherCAT network is maintained through managed industrial Ethernet switches, while I/O expansion is handled via Panasonic FP-X I/O expansion modules or compatible distributed I/O terminal blocks mounted on DIN rail within the same cabinet.

When replacing aging servo drives in legacy systems, the MQDB045D1A04 is also compatible with standard Panasonic MINAS A5 series wiring harnesses with minor adaptation, reducing retrofit time and minimizing production interruption during planned maintenance windows.

Application in Critical Infrastructure

In oil and gas processing facilities, the MQDB045D1A04 drives precision valve actuators and pump control systems where positional accuracy directly impacts process safety. Its STO function allows the drive to be integrated into emergency shutdown (ESD) systems, cutting motor torque within milliseconds upon a safety event without requiring a full power cycle of the control cabinet.

In underground mining operations, servo drives face extreme challenges: coal dust infiltration, continuous vibration from blasting and conveyor systems, and wide ambient temperature swings between surface and underground environments. The MQDB045D1A04’s sealed connector design and robust PCB conformal coating provide a meaningful barrier against particulate ingress when installed in a properly rated IP54 or IP65 enclosure.

At power generation plants and substations, this drive controls positioning systems for turbine blade pitch adjustment, cooling tower fan speed regulation, and automated switchgear mechanisms. Its EMC-compliant design ensures it operates without interference from the high-voltage switching transients common in power infrastructure environments.

In water and wastewater treatment facilities, the MQDB045D1A04 is deployed in dosing pump control, sluice gate positioning, and filtration system automation. The drive’s ability to maintain precise velocity control under variable load conditions — such as changing fluid viscosity or filter backpressure — makes it a reliable choice for 24/7 continuous process operations.

For metallurgical and steel mill applications, where ambient temperatures can exceed 45°C and electromagnetic noise from arc furnaces is severe, the MQDB045D1A04’s built-in noise filter and wide operating temperature range provide the stability required for rolling mill positioning, ladle transfer car control, and continuous casting line synchronization.
