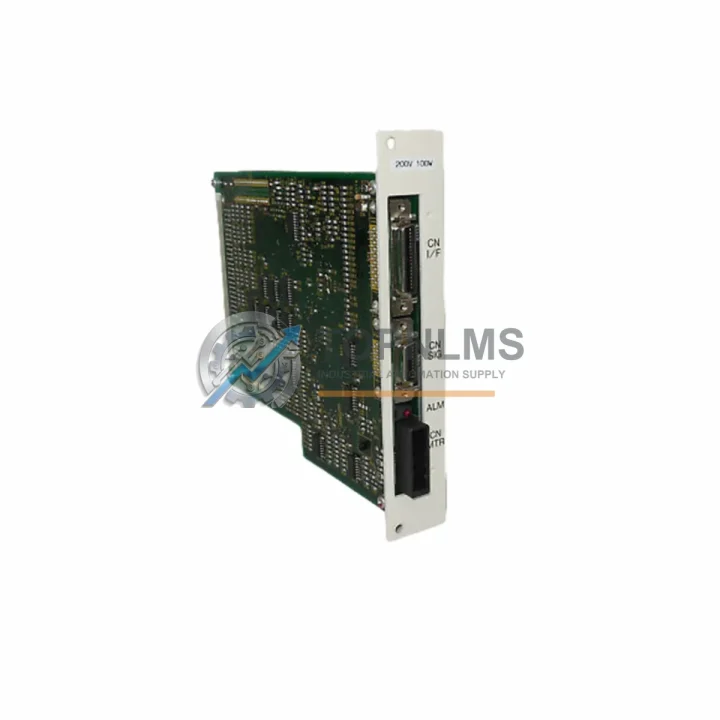

Panasonic MSD013A1Y Replacement for MINAS A4 Series

Product Overview

Panasonic MSD013A1Y Replacement for MINAS A4 Series: Seamless Transition from Legacy Servo Systems

The Panasonic MSD013A1Y is a 100W AC servo drive from the MINAS A4 Series, widely deployed across precision manufacturing, packaging machinery, semiconductor handling, and general-purpose motion control applications. As industrial facilities face the challenge of maintaining aging servo systems — particularly those built around discontinued or end-of-life Panasonic MINAS A-Series and MINAS A4 predecessors — the MSD013A1Y serves as a direct-fit replacement and upgrade solution that minimizes engineering rework, reduces downtime, and preserves existing control architecture investments.

When migrating from older MINAS A-Series drives such as the MSDA013A1A or MSDA013A1B, engineers frequently encounter concerns around connector pinout compatibility, encoder feedback wiring, and control signal mapping. The MSD013A1Y maintains backward-compatible CN X5 and CN X6 connector layouts with the MINAS A4 platform, allowing existing servo motor cables — including those paired with MSMD012P1S or MSMD012G1S servo motors — to be reused without modification in most installations. This dramatically reduces rewiring labor and the risk of commissioning errors during a live production environment retrofit.

For facilities running Panasonic FP-series PLCs or third-party controllers communicating via pulse-train (PULS/SIGN or CW/CCW) or analog ±10V command interfaces, the MSD013A1Y supports all standard command modes without requiring firmware changes on the host controller side. Sites using MINAS A4 drives in a multi-axis configuration alongside the MFDDTA392 communication module or RTEX network interface will find that the MSD013A1Y integrates into existing network topologies with minimal parameter re-entry — typically limited to axis address assignment and gain tuning.

Physical installation compatibility is a key consideration in control cabinet retrofits. The MSD013A1Y shares the same DIN-rail and panel-mount footprint as other 100W class MINAS A4 drives, making it a drop-in replacement in existing enclosures without requiring cabinet modification. Power supply requirements remain consistent at single-phase 200–240V AC input, meaning existing 24VDC control power rails and main circuit breakers sized for the original drive do not need to be replaced. When upgrading from a MSDA013A1A in a multi-axis rack alongside larger drives such as the MSD023A1XX (200W) or MSD043A1XX (400W), the MSD013A1Y occupies the same slot width, preserving cable management and thermal spacing.

Commissioning the MSD013A1Y in a replacement scenario is straightforward using the Panasonic PANATERM setup software, which supports parameter backup and restore from previous MINAS A4 drives. Engineers can upload saved parameter files from the outgoing drive and apply them to the MSD013A1Y with minor adjustments for motor inertia ratio and auto-tuning, significantly reducing on-site calibration time. For sites without a laptop-based setup tool, the front-panel seven-segment display and push-button interface allows manual parameter entry using the same menu structure as other MINAS A4 family members.

Procurement teams evaluating the MSD013A1Y as a strategic spare or emergency replacement should note that TOPNLMS maintains ready stock of this unit, with standard lead times of 3–7 business days for international shipments from Xiamen. Each unit undergoes pre-shipment functional verification including power-on self-test, encoder feedback loop check, and parameter default confirmation. Units are shipped in original or equivalent protective packaging with ESD precautions appropriate for servo drive electronics.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete servo system migration around the MSD013A1Y typically involves several companion components. The MSMD012P1S or MSMD012G1S servo motors are the standard matched motors for this 100W drive class and can be reused from the existing installation if within service life. For multi-axis systems, the MSD023A1XX and MSD043A1XX drives handle 200W and 400W axes respectively on the same MINAS A4 platform, allowing a phased cabinet upgrade without mixing incompatible drive generations.

Communication infrastructure upgrades often accompany servo drive replacements. The MFDDTA392 RTEX network module enables high-speed synchronous control when migrating from pulse-train to network-based motion, while the AFP7CPS31E EtherNet/IP communication module on the FP7 PLC side provides the controller-level network interface. For sites retaining legacy FP-series PLCs during a phased migration, a dedicated programming cable (USB-miniB to RS232 adapter compatible with PANATERM) is essential for parameter transfer and drive commissioning without disrupting the host controller.

Terminal block modules and signal isolators are frequently required when integrating the MSD013A1Y into existing wiring harnesses that were originally designed for older drive pinouts. A 50-pin breakout terminal board compatible with CN X5 simplifies I/O rewiring and allows technicians to verify signal continuity before final commissioning. Where analog command signals are subject to noise in long cable runs, a DIN-rail signal isolator rated for ±10V analog input protects drive integrity and ensures positioning accuracy.

Retrofit Guidance FAQ

Q: Can I reuse my existing servo motor cables when replacing MSDA013A1A with MSD013A1Y?
A: Yes. The CN X5 and CN X6 connector pinouts are compatible between MINAS A-Series and MINAS A4 for standard incremental encoder motors. Verify cable shielding integrity before reconnection.

Q: Do I need to reprogram my PLC after replacing the servo drive?
A: No PLC program changes are required if the command interface (pulse train or analog) and I/O signal mapping remain unchanged. Only servo drive parameters need to be re-entered or restored via PANATERM.

Q: Is the MSD013A1Y compatible with RTEX network control?
A: The base MSD013A1Y supports pulse-train and analog command modes. RTEX network control requires the optional MFDDTA392 network module to be installed in the drive’s option slot.

Q: What is the physical clearance requirement for installation?
A: Maintain a minimum 10mm clearance on left/right sides and 50mm on top/bottom for adequate airflow. The MSD013A1Y shares the same thermal management requirements as other MINAS A4 100W class drives.

Q: Can the MSD013A1Y operate with absolute encoders from the previous system?
A: The MSD013A1Y supports 17-bit absolute encoders when paired with compatible MINAS A4 absolute servo motors. Legacy incremental encoder motors remain fully compatible.

Warranty Assurance

Every MSD013A1Y unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Pre-shipment testing includes power-on self-diagnostic, encoder feedback loop verification, and factory default parameter confirmation. Units found to exhibit any functional defect within the warranty period are eligible for replacement or repair at no additional cost, subject to standard return authorization procedures.

TOPNLMS maintains dedicated after-sales support for servo drive replacements, with technical response within 1 business day for warranty claims and commissioning queries. Expedited replacement units are available from stock for critical production line applications where extended downtime is not acceptable. All units are shipped with appropriate ESD protective packaging and are accompanied by a basic parameter sheet to assist on-site commissioning engineers.

For volume procurement, blanket order arrangements and consignment stock programs are available to ensure MSD013A1Y availability aligns with your planned maintenance schedules and emergency spare requirements.
