Panasonic MDDDT5540003 Replacement for MINAS A5

Product Overview

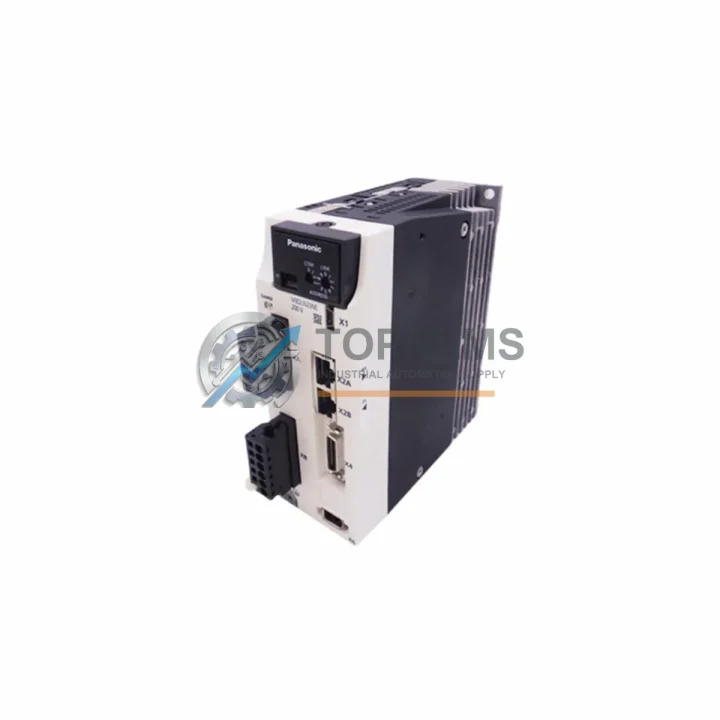

Panasonic MDDDT5540003 Replacement for MINAS A5: Seamless Transition from Legacy Servo Systems

When your production line depends on a Panasonic MDDDT5540003 AC Servo Drive and the unit reaches end-of-life or fails unexpectedly, every hour of downtime translates directly into lost output and escalating maintenance costs. The MDDDT5540003 is a 750W single-axis AC servo drive from Panasonic’s MINAS A5 series — a platform widely deployed across CNC machining centers, semiconductor handling equipment, packaging lines, and precision assembly systems throughout Asia and globally. This product page is dedicated to engineers and procurement teams seeking a verified replacement, upgrade, or retrofit solution for the MDDDT5540003 with full compatibility assurance, documented wiring guidance, and a 12-month warranty.

The MINAS A5 series was engineered for high-speed, high-accuracy motion control. The MDDDT5540003 accepts a 200V AC three-phase input and delivers 750W continuous output power, making it suitable for medium-duty servo axes. Its control interface supports both pulse-train (position mode) and analog velocity/torque command inputs, and the drive communicates via RS-232C and RS-485 serial ports for parameter configuration and monitoring. Many installations also integrate the drive into a MECHATROLINK-II network alongside Panasonic FP-series PLCs or third-party motion controllers, enabling synchronized multi-axis coordination.

Over time, MINAS A5 drives in the field develop common failure modes: IGBT module degradation, encoder feedback errors (Err 24.0, Err 25.0), regenerative resistor burnout, and control board capacitor aging. When these faults appear on a MDDDT5540003, the fastest path to recovery is a direct replacement unit — not a repair cycle that can take weeks. TOPNLMS maintains verified stock of the MDDDT5540003 and ships from Xiamen with full pre-shipment functional testing.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MDDDT5540003 retrofit rarely involves the servo drive alone. In most MINAS A5 installations, the drive operates as part of a tightly integrated motion system. During the upgrade or replacement process, engineers typically need to address several adjacent components to ensure the new drive performs correctly from day one.

The servo motor paired with the MDDDT5540003 is most commonly a MSMD082P1S or MSMD082G1S (750W, 200V, with 17-bit absolute encoder). If the motor’s encoder cable or power cable has aged alongside the drive, replacing the MFECA0030EAM encoder cable and MFMCA0032EAM motor power cable at the same time eliminates a common source of post-replacement encoder errors. The CN X6 encoder connector pinout on the A5 drive is identical to the A4 series, so existing cable assemblies are typically reusable — but insulation resistance should be verified before reconnection.

For multi-axis systems, the MDDDT5540003 is often installed in the same control cabinet alongside other MINAS A5 drives such as the MDDDT3530003 (400W) or MDDDT7530003 (1kW), sharing a common DC bus or regenerative resistor bank. When replacing a single axis in a multi-axis cabinet, confirm that the shared regenerative resistor — often a MFBA0100 external braking resistor — is rated for the combined regenerative energy of all axes. Undersized resistors are a leading cause of OHC (overheat) faults after drive replacement.

The upper-level controller communicating with the MDDDT5540003 is frequently a Panasonic FP0R or FP-XH series PLC, or a third-party motion controller issuing pulse-train commands via the CN X5 I/O connector. If the replacement drive is being integrated into a MECHATROLINK-II network, the MINAS A5 RTEX/MECHATROLINK option card must be confirmed present. For RS-485 parameter setup and monitoring, the PANATERM software (PC connection via CN X3 using a USB-RS232 adapter) remains the standard commissioning tool for the A5 series.

In retrofit projects where the original MINAS A4 drive (e.g., MDDDT5540) is being upgraded to the A5 MDDDT5540003, the primary wiring changes involve the CN X5 I/O connector pin reassignment for some digital I/O signals and the encoder cable connector type. The A5 series also introduces auto-tuning and vibration suppression features that require parameter initialization before the first test run. TOPNLMS recommends requesting the MINAS A5 parameter sheet specific to your machine model to accelerate commissioning.

For installations where the control cabinet also houses a Panasonic AFP0RC32ET or AFP7CPS31E CPU module, the servo drive’s alarm output (ALM signal on CN X5) should be wired to a dedicated digital input on the PLC for fault monitoring and automatic axis inhibit logic. This integration step is often overlooked during emergency replacements and leads to uncontrolled axis movement on drive recovery.

Retrofit Guidance FAQ

Q: Can the MDDDT5540003 directly replace an older MDDDT5540 (MINAS A4) without rewiring?
A: The power wiring (L1/L2/L3 input, U/V/W motor output) is identical. The CN X5 I/O connector has minor pin reassignments for some digital I/O signals — review the A4-to-A5 migration guide before connecting. The encoder cable connector (CN X6) is compatible with A4 motor cables.

Q: What parameter backup steps are required before replacing the drive?
A: Use PANATERM software to export the full parameter file (.prm) from the existing drive via RS-232C (CN X3) before removal. After installing the MDDDT5540003, import the parameter file and verify Pr0.01 (control mode), Pr0.04 (command pulse input), and Pr3.00–Pr3.15 (I/O signal assignment) before enabling the axis.

Q: Is MECHATROLINK-II communication supported on this unit?
A: The base MDDDT5540003 supports RS-232C and RS-485. MECHATROLINK-II requires the optional network interface card. Confirm the option card part number with TOPNLMS before ordering if your system uses MECHATROLINK-II synchronization.

Q: What are the physical installation space requirements?
A: The MDDDT5540003 is 45mm wide, 170mm tall, and 162mm deep (approximate). It requires 30mm clearance above and below for airflow. Mounting is compatible with standard DIN rail or M4 panel screws. The unit weight is approximately 1.2kg.

Q: How do I handle the regenerative resistor when replacing the drive?
A: The MDDDT5540003 has a built-in regenerative resistor rated for light-duty cycles. For high-inertia loads or frequent deceleration cycles, connect an external MFBA0100 resistor to the P and RB terminals. Disconnect the internal resistor jumper (between P and D terminals) when using an external resistor.

Q: What communication protocol does the drive use for PLC integration?
A: RS-485 (Modbus RTU compatible for monitoring) via CN X3. For pulse-train position control, the CN X5 connector accepts line-driver or open-collector pulse inputs up to 4 Mpps. Analog velocity/torque command is via ±10V differential input on CN X5 pins 14/15.

Warranty Assurance

Every MDDDT5540003 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment testing protocol includes power-on functional verification, encoder feedback signal check, and alarm output test. Units are shipped in anti-static packaging with foam protection to prevent transit damage.

If a unit arrives with a functional defect (DOA), TOPNLMS will arrange priority replacement shipment within 3 business days of fault confirmation. For warranty claims within the 12-month period due to manufacturing defects, we provide repair or replacement at no additional cost. Our after-sales team responds to technical inquiries within 24 hours on business days.

Procurement teams can request a pre-shipment inspection report and serial number documentation for quality records. We support purchase orders, proforma invoices, and bank transfer payment terms for B2B customers. Stock availability is confirmed at time of order — contact us for lead time on high-volume requirements.

For urgent replacement needs, express DHL/FedEx shipping from Xiamen is available with typical transit times of 3–5 business days to most destinations in Asia, Europe, and North America.
