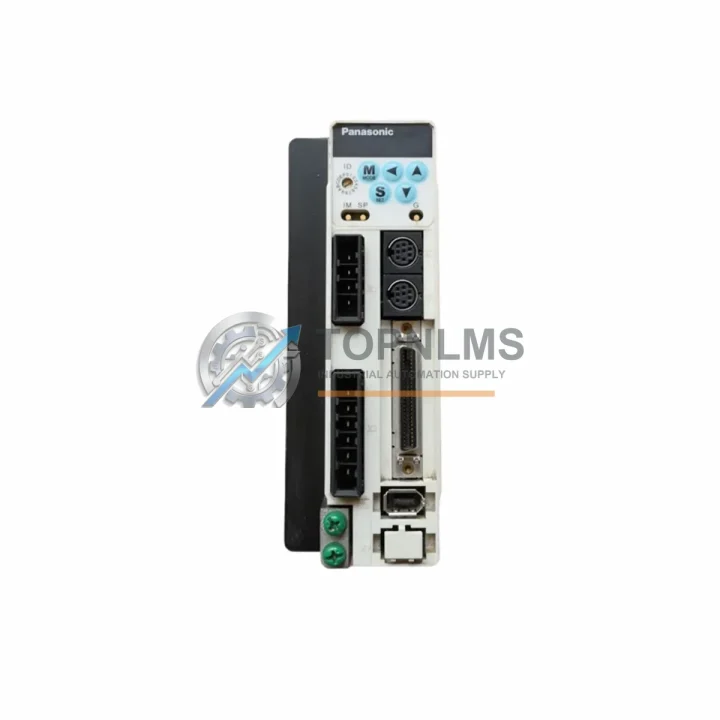

Panasonic MBDDT2210053 Ruggedized AC Servo Drive Module

Product Overview

Panasonic MBDDT2210053 Ruggedized AC Servo Drive Module: Industrial Resilience for Harsh Environments

The Panasonic MBDDT2210053 is a high-performance AC Servo Drive Unit from the renowned MINAS A Series, engineered to deliver precise motion control and sustained reliability in the most demanding industrial environments. Whether deployed on a continuous production line in a steel mill, integrated into a petrochemical processing facility, or installed within a control cabinet in a high-vibration mining operation, the MBDDT2210053 is built to perform where lesser drives fail.

Designed with industrial resilience at its core, this servo drive unit maintains stable closed-loop control under conditions of elevated ambient temperature, high humidity, airborne particulate contamination, and persistent electromagnetic interference (EMI). Its robust internal architecture and Panasonic’s proven MINAS A Series signal processing technology ensure that servo positioning accuracy is maintained even when the surrounding environment is far from ideal. For plant engineers and procurement specialists sourcing replacement drives or expanding automation capacity, the MBDDT2210053 represents a dependable, specification-accurate solution backed by a 12-month warranty and pre-shipment functional testing.

Rugged Specifications Table

Comprehensive Protection Solutions

The MBDDT2210053 does not operate in isolation — it is a critical node within a broader automation architecture. In a typical servo-controlled production cell, this drive interfaces directly with a Panasonic MINAS A Series servo motor via a dedicated encoder feedback cable, while receiving motion commands from an upstream Mitsubishi MELSEC Q-Series PLC or a Siemens S7-300 CPU module through high-speed pulse train output. Reliable power delivery to the drive is ensured by a dedicated Panasonic or Omron industrial power supply unit, typically rated at 24 VDC for control circuits, with the main drive bus supplied from a properly sized isolation transformer.

In multi-axis configurations — common in CNC machining centers, robotic welding lines, and automated assembly systems — the MBDDT2210053 operates alongside companion MINAS A Series drives such as the MBDDT2210 and MADDT1207 variants, all sharing a common DC bus or coordinated through a Panasonic FP-series programmable controller. Safety interlock signals are typically routed through a Pilz PNOZ safety relay module or an equivalent Omron G9SA safety relay, ensuring that the servo drive de-energizes immediately upon detection of a guard door open, E-stop activation, or overtravel limit breach.

For installations requiring fieldbus integration, the drive’s RS-485 port can be connected to a PROFIBUS DP communication module or a DeviceNet adapter, enabling centralized parameter monitoring and fault diagnostics from a SCADA or DCS workstation. Terminal block wiring within the control cabinet is typically managed through Phoenix Contact or Weidmüller DIN-rail terminal modules, ensuring clean, labeled, and maintainable signal routing. Where regenerative braking energy is a concern — particularly in vertical axis or high-inertia load applications — an external Panasonic regenerative resistor unit is connected to the drive’s dedicated braking resistor terminals to safely dissipate excess energy and protect the drive’s internal components.

Application in Critical Infrastructure

The Panasonic MBDDT2210053 has established a strong track record across critical infrastructure sectors where unplanned downtime carries severe operational and financial consequences.

In oil and gas processing facilities, servo drives of this class are deployed in valve actuator control systems, pipeline inspection equipment, and precision metering pump drives. The MBDDT2210053’s tolerance for wide ambient temperature swings and its robust EMI immunity make it well-suited for installation in electrical rooms adjacent to high-power variable frequency drives (VFDs) and motor control centers (MCCs), where conducted and radiated interference levels are consistently elevated.

In mining and mineral processing operations, the drive is used in conveyor positioning systems, ore sampling equipment, and automated drilling rigs. Vibration levels in these environments can be extreme, and the MINAS A Series platform’s proven mechanical design ensures that internal solder joints, connector interfaces, and power semiconductor assemblies remain intact over extended service cycles.

In power generation and electrical utilities, the MBDDT2210053 supports precision positioning of turbine blade pitch actuators, generator excitation control mechanisms, and automated switchgear testing rigs. The drive’s ability to maintain sub-millisecond position loop response times under varying load conditions is essential in these applications.

In water and wastewater treatment plants, servo drives control the positioning of automated valve manifolds, chemical dosing pump drives, and filter backwash sequencing systems. The MBDDT2210053’s low-speed torque stability and smooth velocity control make it particularly effective in applications requiring precise flow regulation.

In metallurgical and steel production facilities, the drive is integrated into rolling mill positioning systems, ladle transfer car controls, and continuous casting machine drives — environments characterized by intense heat radiation, heavy vibration, and aggressive electromagnetic interference from large induction furnaces and arc welding equipment.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every Panasonic MBDDT2210053 unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, premature component failure under normal operating conditions, and any functional anomalies identified during the warranty period. In the event of a warranty claim, TOPNLMS provides a replacement unit or full repair service at no additional cost to the buyer. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q2: How is each unit tested before shipment?
All MBDDT2210053 units undergo a comprehensive pre-shipment functional test protocol. This includes power-on verification, encoder interface signal integrity check, control mode switching validation (position / velocity / torque), fault code diagnostic scan, and output current measurement under simulated load conditions. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for OEM and system integrator customers.

Q3: Is the MBDDT2210053 compatible with third-party PLCs and servo motors?
The MBDDT2210053 is natively designed for use with Panasonic MINAS A Series servo motors. However, its pulse train input interface (for position control mode) is compatible with the pulse output modules of major PLC platforms including Mitsubishi MELSEC, Siemens S7, Omron CJ/CS Series, and Keyence KV Series controllers. For velocity and torque control modes, analog command input (±10 VDC) is supported, providing broad compatibility with third-party motion controllers and DCS analog output cards. Customers requiring specific compatibility confirmation are encouraged to contact our technical team prior to ordering.

Q4: Can TOPNLMS guarantee long-term supply and support for this model?
Yes. TOPNLMS maintains dedicated inventory of the MBDDT2210053 and other MINAS A Series components to support customers with long-term production commitments and maintenance contracts. For facilities operating legacy Panasonic servo systems where the original model has been discontinued or is difficult to source through standard distribution channels, TOPNLMS provides a reliable alternative supply path with consistent lead times, competitive pricing, and full technical documentation support. Bulk order pricing and consignment stock arrangements are available for qualified industrial customers.
