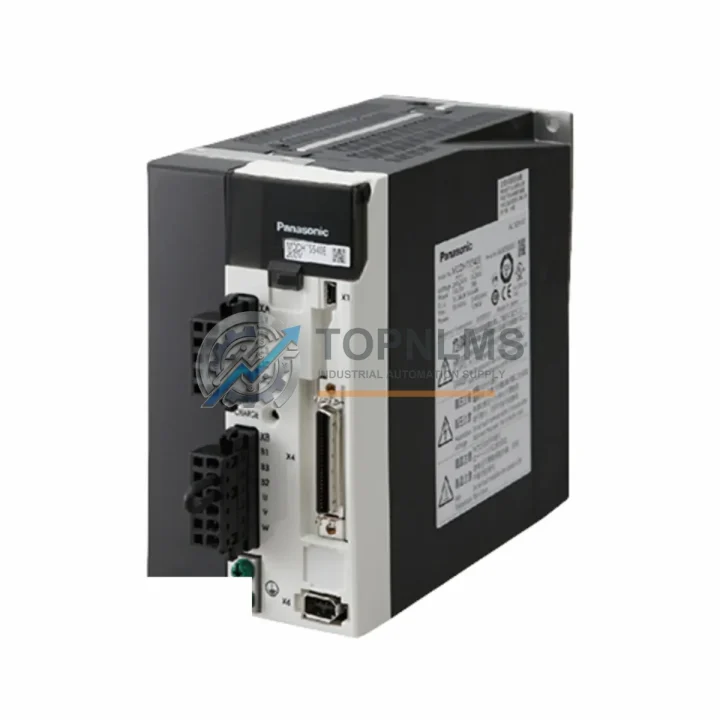

Panasonic MADKT1505E MINAS A5 750W Servo Drive Upgrade

Product Overview

Panasonic MADKT1505E MINAS A5 750W Servo Drive Upgrade: Seamless Transition from Legacy Systems

The Panasonic MADKT1505E is a 750W single-phase AC servo drive from the MINAS A5 series — one of Panasonic’s most widely deployed servo platforms in precision motion control, CNC machining centers, packaging lines, semiconductor handling equipment, and general industrial automation. As legacy servo drives such as the MINAS A4 series (MADDT1207, MADDT1507) and earlier MINAS III units reach end-of-life or become increasingly difficult to source, the MADKT1505E represents the most direct and technically validated upgrade path available today.

At TOPNLMS, we maintain ready stock of the MADKT1505E to support urgent replacement scenarios, planned retrofit projects, and long-term spare parts programs. Every unit is sourced from authorized supply chains, individually tested before dispatch, and backed by a 12-month warranty. Our team ships from Xiamen with full export documentation, supporting customers across Southeast Asia, the Middle East, Europe, and the Americas.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy Panasonic servo system to the MADKT1505E involves more than a direct drive swap. In most retrofit projects, engineers must evaluate the full drive-motor-controller chain to ensure compatibility at every interface point.

The MADKT1505E is designed to pair with Panasonic MINAS A5 series servo motors — particularly the MSMD series (MSMD082G1S, MSMD5AZS1C) and MDMD series motors rated at 750W. If the existing installation uses older MINAS A4 motors with 2500 P/R incremental encoders, a motor replacement to an A5-compatible unit with 17-bit or 20-bit absolute encoder feedback is strongly recommended to unlock the full performance envelope of the MADKT1505E, including vibration suppression, auto-tuning, and full-closed loop control.

On the controller side, the MADKT1505E accepts pulse-train command signals from a wide range of upper-level controllers, including Panasonic FP-XH and FP0R series PLCs via high-speed pulse output modules. For installations using Mitsubishi Q-series or iQ-R series PLCs with QD75 or RD77 positioning modules, the MADKT1505E integrates cleanly via differential line driver pulse input, requiring only parameter adjustment for electronic gear ratio and command pulse polarity. Similarly, Omron CJ1M or NX1P2 controllers with pulse output units can drive the MADKT1505E without hardware modification.

Wiring the MADKT1505E into an existing control cabinet requires attention to the CN X5 I/O connector. The A5 series revised several pin assignments compared to the A4 generation. Engineers migrating from MADDT1507 should cross-reference the CN X5 pinout in the MINAS A5 technical manual (SX-DSV02470) and verify the mapping of servo-on (S-ON), alarm clear (A-CLR), and deviation counter clear (CL) signals. In most cases, a custom wiring harness or terminal adapter — such as those compatible with the DV0PM20042 breakout terminal block — simplifies this process and reduces field wiring errors.

For installations where the MADKT1505E replaces a drive in a multi-axis rack or shared DC bus configuration, the power supply module and regenerative resistor sizing must be recalculated. The MADKT1505E supports an external regenerative resistor (DV0P4284 for standard duty, DV0P4285 for high-duty cycles), and the built-in resistor is sufficient for most single-axis, low-inertia applications. In high-cycle packaging or press-feed applications, an external resistor is recommended to prevent overvoltage faults during rapid deceleration.

Communication-based commissioning is significantly improved in the MINAS A5 generation. The MADKT1505E includes a USB port for direct connection to PANATERM software (Ver. 5.x), enabling parameter upload/download, real-time oscilloscope monitoring, and auto-tuning without requiring a dedicated RS-232 programming cable. For legacy installations that relied on the DV0P4430 RS-232 cable, the USB interface eliminates this dependency and accelerates commissioning time on the factory floor.

In distributed I/O architectures where the servo drive interfaces with a remote I/O station — such as a Panasonic AFP0RC32T FP0R unit or a third-party DeviceNet/PROFIBUS gateway — the MADKT1505E’s analog monitor outputs (CN X5 pins 43/44) provide real-time speed and torque feedback signals that can be wired into the plant’s existing signal conditioning or SCADA infrastructure without additional signal isolators in most cases.

Retrofit Guidance FAQ

Q: Can the MADKT1505E directly replace a MADDT1507 without motor replacement?
A: In many cases, yes — if the existing motor is a MINAS A4 750W unit with a compatible frame size and the application does not require absolute encoder feedback. However, the encoder interface differs between A4 (incremental, 2500 P/R) and A5 (absolute, 17/20-bit). You must configure the MADKT1505E for incremental encoder mode (Pr0.03 = 0) and verify that the encoder cable pinout matches. A motor upgrade to an A5-compatible unit is recommended for new installations.

Q: What wiring changes are required at the CN X5 connector?
A: The A5 series revised several I/O pin assignments relative to the A4 series. Key changes include the position of the servo-ready (S-RDY) output and the torque limit input (TL). Always cross-reference the MINAS A5 User’s Manual (SX-DSV02470) against your existing wiring diagram before powering up. Using a DV0PM20042-compatible terminal block adapter is strongly recommended for retrofit projects.

Q: Is the MADKT1505E compatible with RTEX network control?
A: The standard MADKT1505E supports pulse-train and analog command modes. RTEX (Real-Time Express) network control requires the MADKT1505E03 variant with the RTEX interface option. Confirm your part number suffix before ordering if network motion control is required.

Q: How do I handle the regenerative resistor during replacement?
A: The MADKT1505E includes a built-in regenerative resistor suitable for most 750W single-axis applications. If your legacy installation used an external DV0P4283 resistor, you may continue using an external resistor by connecting it to the P+ and D terminals and setting Pr0.16 accordingly. For high-inertia or high-cycle applications, use the DV0P4284 or DV0P4285 external resistor.

Q: Can I use PANATERM to migrate parameters from the old drive?
A: Yes. PANATERM Ver. 5.x supports parameter file export from A4 drives (via RS-232/DV0P4430 cable) and import to A5 drives (via USB). Note that some parameter numbers and ranges differ between generations — always review the parameter mapping table in the A5 migration guide before applying an A4 parameter file to the MADKT1505E.

Q: What is the physical installation space requirement?
A: The MADKT1505E follows the MINAS A5 series dimensional standard. Verify the panel cutout dimensions against your existing cabinet layout. The A5 750W drive is generally compatible with A4 750W mounting holes, but confirm depth clearance for the USB connector and cable routing on the front face.

Warranty Assurance

Every MADKT1505E unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes power-on functional testing, parameter initialization verification, and visual inspection for connector and PCB integrity. Units are packed in anti-static ESD packaging with foam cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical team at [email protected] with your order number and a description of the fault. We will arrange a replacement unit dispatch or issue a repair assessment within 3 business days. Our after-sales response covers technical commissioning support, parameter configuration guidance, and wiring verification assistance — at no additional charge during the warranty period.

For procurement teams managing spare parts programs, TOPNLMS offers volume pricing, consignment stock arrangements, and long-lead-time reservation for critical servo drive models. We maintain buffer stock of the MADKT1505E and related MINAS A5 components to support emergency replacement scenarios with same-day or next-day dispatch from our Xiamen warehouse.

All units are shipped with full commercial invoice, packing list, and certificate of origin documentation to support customs clearance in your destination country. DDP (Delivered Duty Paid) shipping options are available for select destinations upon request.
