Panasonic MADDT1205052 Replacement for MINAS A4 Series

Product Overview

Panasonic MADDT1205052 Replacement for MINAS A4 Series: Smooth Transition from Legacy Servo Systems

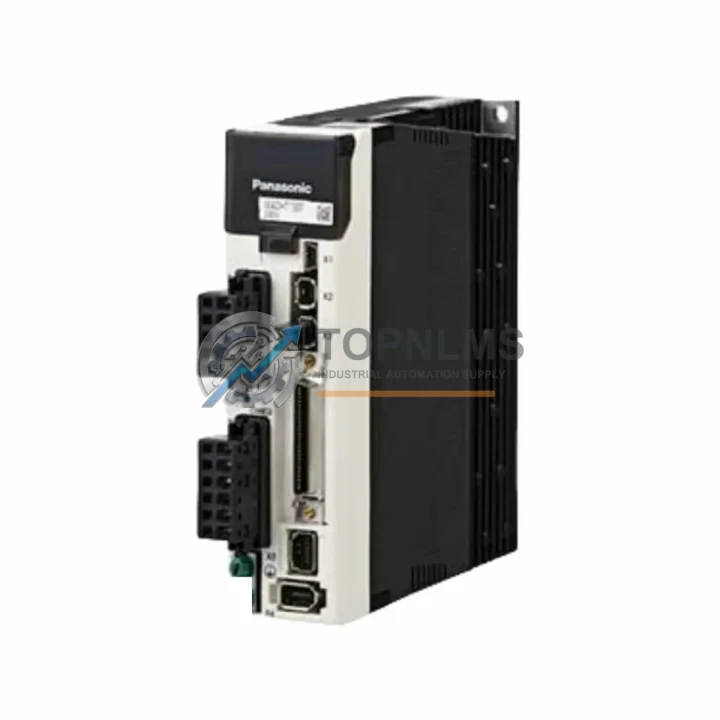

The Panasonic MADDT1205052 is a 200W AC Servo Amplifier from the MINAS A4 series, engineered for high-precision motion control in industrial automation environments. As legacy servo systems age and original units reach end-of-life, facilities running older Panasonic MINAS A-series or MINAS A4 predecessors face increasing pressure to source reliable replacements that preserve existing wiring infrastructure, control programs, and mechanical mounting configurations. The MADDT1205052 is the definitive drop-in upgrade solution for these scenarios, offering full backward compatibility within the MINAS A4 platform while delivering improved loop response, enhanced fault diagnostics, and reduced commissioning time.

Industrial plants operating Panasonic MSDA023A1A, MSDA043A1A, or earlier MINAS A-series amplifiers will find the MADDT1205052 a straightforward migration target. The connector pinout for the CN X5 encoder feedback interface and the CN X6 I/O control terminal remain consistent with the MINAS A4 family, meaning existing motor cables terminated to MFECA0030EAM or MFECA0050EAM encoder cables can be reused without re-termination. This directly reduces field labor hours and eliminates the risk of wiring errors during cutover.

For facilities using Panasonic MINAS A4 series motors such as the MSMD022G1S or MSMD042G1S paired with earlier amplifier revisions, the MADDT1205052 maintains full motor parameter compatibility. The amplifier’s auto-tuning function can re-identify motor inertia and load characteristics within minutes of first power-on, minimizing the need to manually re-enter gain parameters from legacy commissioning sheets. This is particularly valuable in multi-axis systems where downtime windows are narrow and re-tuning every axis individually is not practical.

Communication protocol continuity is a critical factor in servo migration projects. The MADDT1205052 supports RS-485 serial communication via the CN SIG port, compatible with Panasonic’s PANATERM setup software for parameter backup, restoration, and real-time monitoring. Facilities that have archived parameter files from previous MINAS A4 units can restore those configurations directly, preserving speed loop gain, position loop gain, notch filter settings, and electronic gear ratio parameters without manual re-entry. For systems integrated into a MECHATROLINK-II network alongside other motion axes, the amplifier’s station address and transmission cycle settings are retained in non-volatile memory and survive power cycling.

Control cabinet space is a frequent constraint in retrofit projects. The MADDT1205052 maintains the standard MINAS A4 form factor with a 45mm width profile, allowing it to be mounted on existing DIN rail arrangements or panel-mount brackets without modification to the cabinet layout. Adjacent components such as the Panasonic AFP0RC32CDP FP0R series PLC, terminal block modules, and 24VDC control power supplies do not require repositioning. The amplifier’s single-phase 200–240VAC input requirement is compatible with standard industrial control panel power distribution, and the built-in regenerative resistor circuit handles the braking energy of 200W-class loads without requiring an external regenerative unit in most standard duty-cycle applications.

For systems where the host controller communicates via pulse-train position commands — common in Panasonic FP series PLC motion control configurations — the MADDT1205052 accepts differential line-driver pulse inputs at up to 500 kpps, fully compatible with the pulse output specifications of the AFP0RC32CDP and similar controllers. No changes to the PLC motion program or pulse output parameters are required when replacing a like-for-like MINAS A4 amplifier, making this a true zero-program-change replacement in pulse-train architectures.

In distributed I/O architectures where the servo system interfaces with a Panasonic FP-Sigma or FP7 series controller via analog speed or torque command signals, the MADDT1205052’s CN X5 analog input accepts ±10V differential signals with configurable scaling, preserving compatibility with existing analog output modules. Signal isolation between the control and power stages meets IEC 61800-3 EMC requirements, reducing the risk of noise-induced faults in sensitive measurement or process control environments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete servo system migration around the MADDT1205052 typically involves coordinating several interdependent components to ensure the upgraded axis integrates cleanly into the existing machine architecture. The MSMD022G1S servo motor is the standard 200W motor pairing for this amplifier, and in most retrofit scenarios it can be reused if the existing motor passes insulation resistance and encoder signal integrity checks. Where motor replacement is also required, the MSMD042G1S offers a 400W upgrade path on the same amplifier frame if load analysis indicates the original 200W sizing was marginal.

Encoder cable continuity is essential. The MFECA0030EAM (3-meter) and MFECA0050EAM (5-meter) encoder cables are the standard interface between the MSMD motor and the MADDT1205052 CN X5 port. These cables carry the 2500 P/R incremental encoder signals and the motor thermistor signal, and their shielded construction is critical for noise immunity in environments with variable-frequency drives or other high-frequency switching equipment nearby.

On the controller side, the Panasonic AFP0RC32CDP FP0R series PLC is a common host controller in MINAS A4 servo applications, providing pulse-train position commands and digital I/O for servo enable, alarm reset, and in-position confirmation signals. Where the host controller is a third-party system, a DV0P4460 USB-to-RS-485 communication cable enables direct connection to PANATERM for parameter management without requiring the host controller to be online.

For multi-axis installations, the MADDT1205052 can be mounted alongside other MINAS A4 amplifiers — including 400W (MADDT1207) and 750W (MBDDT2210) variants — on a shared DC bus configuration where applicable, reducing overall panel power supply sizing requirements. A shared 24VDC control power supply, typically a Panasonic BFP-A80G or equivalent DIN-rail SMPS, provides the logic supply for the amplifier’s control circuit independently of the main AC power, enabling safe parameter access and fault diagnostics without energizing the motor power stage.

Signal isolation modules between the PLC analog output and the amplifier’s analog command input are recommended in environments with long cable runs or significant ground potential differences between the controller cabinet and the servo drive panel. These passive or active isolators preserve signal integrity and prevent common-mode noise from corrupting the speed or torque reference, which is particularly important in retrofit projects where the cable routing cannot be optimized.

Retrofit Guidance FAQ

Q: Can I reuse existing motor power cables when replacing with MADDT1205052?
A: Yes, provided the cable cross-section and connector type match the MINAS A4 CN X6 motor output specification. Standard MFMCA series motor power cables with the correct ampacity for 200W class motors are directly compatible. Inspect cable insulation and connector contacts before reuse.

Q: Do I need to modify my PLC program when replacing a like-for-like MINAS A4 amplifier?
A: No. If the replacement is within the same MINAS A4 family and the command interface (pulse-train or analog) is unchanged, the PLC program requires no modification. Restore the parameter file from PANATERM backup and verify auto-tuning results before returning the axis to production.

Q: Is the MADDT1205052 compatible with MECHATROLINK-II network configurations?
A: The base MADDT1205052 uses RS-485 and pulse-train/analog command interfaces. MECHATROLINK-II network communication requires the MADDT1205052 variant with the MINAS A4 network option card. Confirm your existing amplifier’s communication option before ordering.

Q: How do I handle the physical space if the replacement amplifier has slightly different dimensions?
A: The MADDT1205052 maintains the standard 45mm MINAS A4 width profile. Mounting hole positions on the rear panel are consistent with the A4 family. No panel modification is required for direct replacement within the same series.

Q: What is the recommended procedure for first power-on after installation?
A: Restore the PANATERM parameter backup file first. Then perform a JOG operation at low speed to verify encoder feedback direction and motor rotation direction. Run the auto-tuning function with the actual load connected. Confirm in-position signal behavior and alarm thresholds before enabling full-speed operation.

Q: Can the built-in regenerative resistor handle my application’s braking duty cycle?
A: For standard 200W applications with moderate deceleration rates, the built-in resistor is sufficient. High-cycle applications with frequent rapid deceleration may require an external regenerative resistor unit. Calculate the regenerative energy based on load inertia and deceleration time to confirm.

Warranty Assurance

Every MADDT1205052 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, encoder interface signal check, and communication port validation. Units that do not pass outgoing inspection are not shipped.

In the event of a confirmed unit fault within the warranty period, TOPNLMS provides replacement support with priority processing. Our technical team is available to assist with fault diagnosis, parameter recovery, and installation guidance to minimize your system downtime. Replacement units are dispatched from our Xiamen warehouse with express shipping options available for urgent production recovery situations.

Stock availability is maintained for MADDT1205052 and related MINAS A4 series components to support both planned maintenance schedules and emergency breakdown requirements. We issue a shipment confirmation with tracking information within 1 business day of order confirmation, and all units are packaged in anti-static protective packaging with original-specification labeling.

For procurement inquiries, technical compatibility questions, or bulk order pricing, contact our industrial automation team directly.
