Panasonic DV47L250LE4A Original Industrial Spare MINAS A5 Compatible

Product Overview

Panasonic DV47L250LE4A Original Industrial Spare MINAS A5 Compatible: System Stability and Industrial Maintenance Value

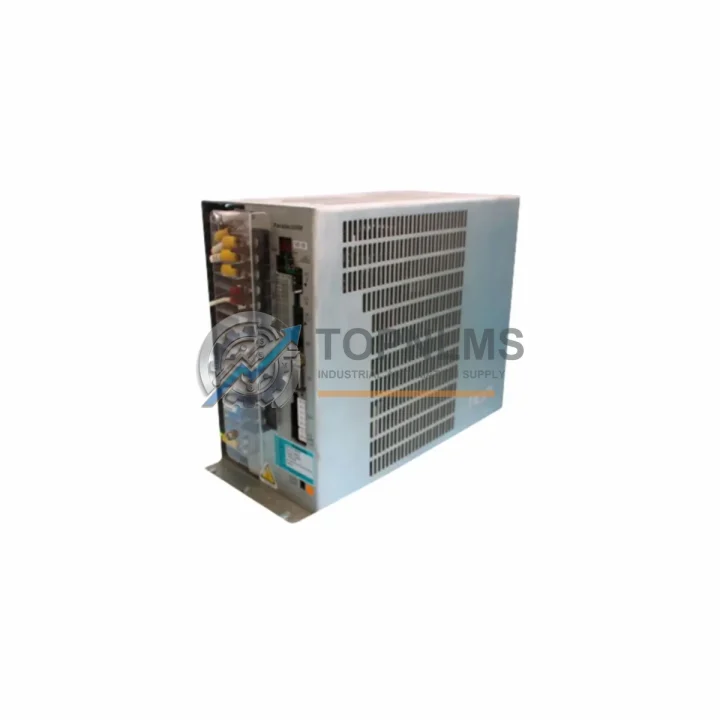

The Panasonic DV47L250LE4A is a genuine original AC servo drive from the MINAS A5 series, rated at 2.5kW and designed for high-precision motion control in demanding industrial environments. Also referenced as P326M-250LE4A, this unit is a direct-fit replacement for aging or failed drives within MINAS A5-based servo systems, enabling maintenance teams to restore machine uptime without redesigning the control architecture. For factories operating CNC machining centers, automated assembly lines, injection molding machines, and robotic arms, maintaining a verified stock of the DV47L250LE4A is a foundational element of any serious preventive maintenance program.

Industrial servo drives are among the highest-criticality components in a motion control cabinet. A failed drive can halt an entire production line within seconds. The DV47L250LE4A’s plug-and-play compatibility with existing MINAS A5 motor and encoder wiring means field replacement can be completed in under two hours by a qualified technician, dramatically reducing mean time to repair (MTTR) and protecting production schedules.

Critical Technical Specs

Preventive Maintenance Strategy

A servo drive replacement should never be treated as an isolated event. When a DV47L250LE4A is pulled from service — whether due to overcurrent fault, encoder communication error, or thermal shutdown — the surrounding components in the same control cabinet deserve equal scrutiny. Experienced maintenance engineers use drive replacement as a trigger for a broader system health check, reducing the probability of a secondary failure within weeks of the initial repair.

Begin by inspecting the Panasonic MINAS A5 servo motor (MDME or MSME series) paired with this drive. Bearing wear, winding insulation degradation, and encoder contamination are common co-failure modes. If the motor has accumulated more than 20,000 operating hours, consider scheduling a motor overhaul alongside the drive swap. Next, verify the integrity of the encoder feedback cable (Panasonic CN SER cable assembly) — shielding breaks and connector pin corrosion are frequent causes of recurring drive faults that are misdiagnosed as drive failures.

The 24VDC control power supply module feeding the drive’s logic circuit should be load-tested; an aging power supply with marginal output voltage can cause intermittent drive trips that are difficult to reproduce. Similarly, inspect the main circuit breaker and AC reactor upstream of the drive — harmonic distortion and voltage sag from a deteriorating reactor accelerate drive capacitor aging. If the cabinet includes a Panasonic FP-X or FP0R PLC issuing position commands to this drive via pulse train or RTEX, verify the PLC’s output module for signal integrity and confirm firmware compatibility with the replacement drive.

For multi-axis systems, it is prudent to audit the I/O expansion modules and terminal block assemblies connected to the servo drive’s digital I/O interface. Loose terminal screws and oxidized contacts on signal terminals are a leading cause of nuisance faults. While the cabinet is open, check the regenerative braking resistor — if the application involves frequent deceleration cycles, the resistor may be thermally stressed and approaching end of life. Finally, review the communication module or fieldbus gateway (RTEX, EtherCAT, or MECHATROLINK) if the drive is integrated into a network-based motion controller; firmware version mismatches between a replacement drive and the network master can prevent commissioning.

Stocking a signal isolator module for analog speed/torque reference inputs is also advisable in environments with significant electrical noise from VFDs or welding equipment operating on the same power bus. A proactive spare parts kit for a MINAS A5 servo axis should include the drive, encoder cable, control power fuse, and at minimum one set of motor connector inserts.

Strategic Replacement Solutions

The DV47L250LE4A is the correct direct replacement for any MINAS A5 2.5kW drive slot. Its parameter structure is fully compatible with the Panasonic PANATERM setup software, meaning drive parameters backed up from the outgoing unit can be restored to the replacement in minutes — no re-commissioning from scratch. This is a critical advantage over cross-brand substitution, which would require full motion tuning, safety validation, and potentially PLC program modifications.

For facilities managing legacy MINAS A4 or MINAS A-series installations, the A5 platform offers a controlled migration path. The MINAS A5 drive accepts the same motor frame sizes and encoder connector pinouts as many A4-series motors, allowing a phased upgrade that preserves existing motor investments while introducing improved auto-tuning, vibration suppression, and safety function support. This reduces total migration cost and eliminates the need for a full system shutdown during transition.

Procurement teams managing multi-site operations should consider establishing a regional buffer stock of the DV47L250LE4A. With lead times for new servo drives from distribution channels ranging from 4 to 16 weeks depending on market conditions, on-hand inventory of even one or two units per site can be the difference between a two-hour repair and a two-week production loss. TOPNLMS maintains verified stock with pre-shipment functional testing, ensuring each unit shipped is confirmed operational before dispatch.

Support FAQ

Q1: Is the DV47L250LE4A compatible with all MINAS A5 servo motors?
Yes. The DV47L250LE4A is designed to operate with all Panasonic MINAS A5 series servo motors in the 2.5kW frame class, including MDME, MSME, and MHME variants with 17-bit or 20-bit serial encoders. Compatibility with specific motor models should be verified against the Panasonic MINAS A5 selection guide or confirmed with our technical team prior to installation.

Q2: What does the 12-month warranty cover?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment inspection and functional verification. Warranty claims are supported by our technical team with RMA processing and replacement dispatch.

Q3: How quickly can a replacement DV47L250LE4A be commissioned on-site?
For a technician familiar with the MINAS A5 platform, physical installation and parameter restore (using a PANATERM backup file) typically takes 1–3 hours. If no parameter backup exists, initial auto-tuning adds approximately 1–2 hours. TOPNLMS can provide commissioning guidance documentation upon request.

Q4: What is the recommended inventory strategy for this drive?
For production lines with more than two MINAS A5 servo axes, maintaining one spare DV47L250LE4A on-site is the industry-standard recommendation. For critical 24/7 operations or lines where downtime cost exceeds USD 5,000/hour, a two-unit buffer is advisable. Coordinate with your procurement team to align reorder points with your facility’s MTTR targets and supplier lead time data.
