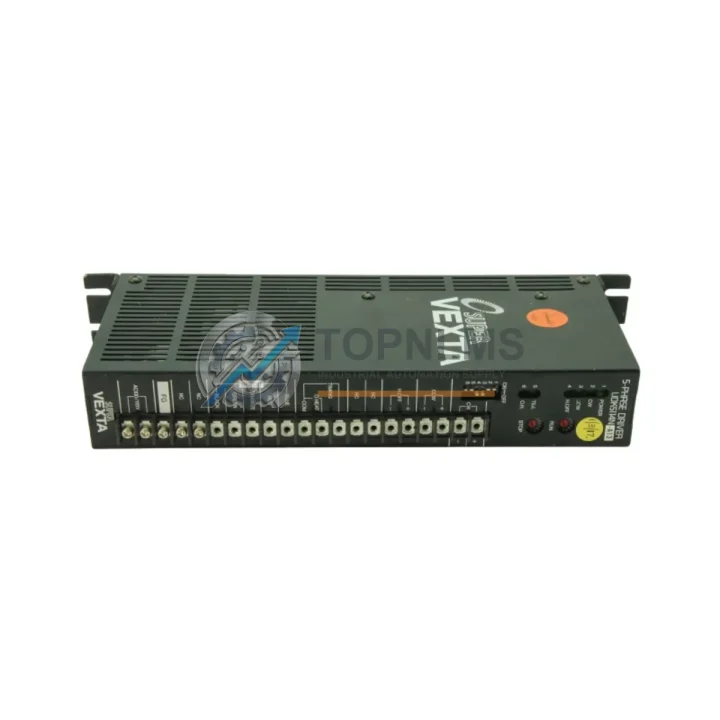

ORIENTAL MOTOR UDK5114N-A13 Ruggedized 5-Phase Stepper Driver

Product Overview

ORIENTAL MOTOR UDK5114N-A13 Ruggedized 5-Phase Stepper Motor Driver for Harsh Industrial Environments

The ORIENTAL MOTOR UDK5114N-A13 is a high-performance, ruggedized 5-phase stepper motor driver from the renowned SUPER VEXTA series — engineered to deliver precise, reliable motion control in the most demanding industrial environments. Whether deployed on continuous production lines, inside high-vibration machinery, or within control cabinets exposed to electromagnetic interference, the UDK5114N-A13 maintains stable output and consistent step accuracy where lesser drivers fail.

Designed for integration with leading PLC platforms and DCS architectures, this driver accepts standard pulse/direction command signals, making it immediately compatible with Siemens S7-series PLCs, Mitsubishi MELSEC controllers, Omron NX/NJ series, and Allen-Bradley CompactLogix systems without additional signal conditioning. Its robust internal circuitry suppresses conducted and radiated EMI, protecting both the driver itself and adjacent I/O modules, communication modules, and relay output cards sharing the same control cabinet.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control cabinets, the UDK5114N-A13 rarely operates in isolation. It is most commonly paired with a ORIENTAL MOTOR PKP Series 5-phase stepper motor to form a complete closed-loop-ready motion axis. The driver’s pulse interface connects directly to the high-speed output terminals of a Siemens S7-1200 or S7-1500 PLC, with the PLC’s digital I/O modules — such as the SM 1221 DI 16×24VDC — handling limit switch feedback and alarm acknowledgment signals.

For applications requiring coordinated multi-axis motion, the UDK5114N-A13 can be deployed alongside ORIENTAL MOTOR CVD Series stepper drivers on a shared 24 VDC bus supplied by a MEAN WELL SDR-120-24 industrial DIN-rail power supply, ensuring clean, regulated power even when variable frequency drives (VFDs) on the same panel introduce switching noise. Surge protection is further reinforced by installing Phoenix Contact TRABTECH surge protection modules on the incoming AC lines.

Communication between the host PLC and supervisory SCADA systems is typically handled via Profibus DP or Modbus RTU communication modules mounted in the same rack. Terminal connections to field sensors and actuators are managed through Weidmüller or Phoenix Contact terminal blocks, which provide reliable, vibration-resistant wire termination — critical in environments with continuous mechanical agitation such as stamping presses or conveyor systems.

Where functional safety is mandated — for example, in Category 3 / PLd machinery per ISO 13849 — the UDK5114N-A13 is integrated with a Pilz PNOZ safety relay module or a Siemens SIRIUS 3SK safety relay that monitors the driver’s alarm output and triggers a safe-state de-energization of the motor winding within the required response time. This architecture ensures that a step-out fault or driver overtemperature event does not result in uncontrolled machine motion.

Application in Critical Infrastructure

The UDK5114N-A13 has established a strong track record across critical infrastructure sectors where unplanned downtime carries severe operational and financial consequences.

Oil & Gas: In upstream and midstream facilities, the driver controls precision valve actuators and metering pump positioning systems. Its overvoltage protection and thermal shutdown circuitry allow it to operate reliably in outdoor equipment enclosures subject to wide ambient temperature swings and power grid fluctuations common at remote wellhead sites.

Water & Wastewater Treatment: Dosing pump positioning and filter backwash valve control demand repeatable, low-speed torque — exactly the operating profile where 5-phase stepper technology excels. The UDK5114N-A13’s microstep capability reduces mechanical resonance in pump drive trains, extending seal and bearing life in continuous-duty applications.

Metallurgy & Heavy Industry: Rolling mill auxiliary drives, ladle transfer positioning, and coil handling systems expose motion control hardware to intense electromagnetic interference from large induction motors and arc furnaces. The UDK5114N-A13’s internal EMI filtering and shielded signal input design maintain step integrity even in these high-noise environments.

Semiconductor & Electronics Manufacturing: Wafer handling, pick-and-place, and precision dispensing equipment require sub-millimeter repeatability. The SUPER VEXTA driver’s 10-resolution microstep selection allows engineers to optimize smoothness versus torque for each specific motion profile without changing hardware.

Food & Beverage Packaging: High-speed filling, capping, and labeling lines run 24/7. The UDK5114N-A13’s step-out detection alarm output allows the line PLC to immediately halt the affected axis and alert maintenance, preventing product waste and equipment damage from a runaway or stalled motor condition.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact us at [email protected] with your order number and a description of the fault. We will arrange return shipping, perform functional testing, and issue a replacement or full refund within 5–7 business days of receiving the returned unit.

Q2: How is each UDK5114N-A13 unit tested before shipment?
Every unit undergoes a pre-shipment functional verification that includes power-on self-test, pulse input response check across all step resolutions, alarm output continuity verification, and visual inspection for physical damage. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for customers with incoming inspection requirements.

Q3: Is the UDK5114N-A13 compatible with my existing ORIENTAL MOTOR stepper motors and PLC pulse outputs?
Yes. The UDK5114N-A13 is designed for use with ORIENTAL MOTOR PK, PKP, and CRK series 5-phase stepper motors. Its pulse/direction input accepts both open-collector (NPN) and line-driver (RS-422) signals, covering the output types used by virtually all major PLC brands including Siemens, Mitsubishi, Omron, Keyence, and Panasonic. If you require confirmation of compatibility with a specific motor or controller model, contact our technical team before ordering.

Q4: Can you guarantee long-term supply and support for this model?
We maintain dedicated stock of the UDK5114N-A13 and other SUPER VEXTA series drivers to support customers with ongoing maintenance and spare-parts programs. For facilities running multiple units, we recommend discussing a blanket order or reserved-stock arrangement to ensure availability during planned shutdowns or emergency replacements. Contact [email protected] to discuss volume pricing and supply continuity agreements.
