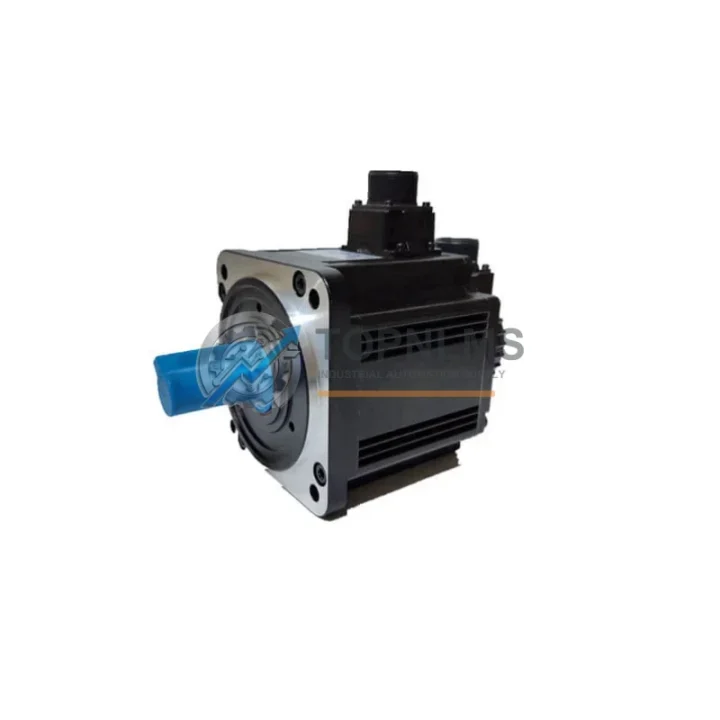

ORIENTAL MOTOR E2-500-250-A Original Industrial Spare Alpha Compatible

Product Overview

ORIENTAL MOTOR E2-500-250-A: Original Alpha Series Spare for Industrial System Stability

In high-precision manufacturing and process automation environments, the stepping motor is not merely a motion component — it is the heartbeat of your positioning system. The ORIENTAL MOTOR E2-500-250-A is an original 5-phase closed-loop stepping motor from the Alpha Series, engineered for applications where positional accuracy, torque consistency, and long-term reliability are non-negotiable. Whether you are managing a scheduled maintenance window, responding to an unplanned shutdown, or building a strategic spare parts inventory, securing a verified original E2-500-250-A is a critical first step in protecting your production continuity.

The Alpha Series closed-loop architecture eliminates the open-loop stall risk inherent in conventional stepping systems. By integrating encoder feedback directly into the drive loop, the E2-500-250-A delivers servo-class responsiveness at stepping motor cost — a combination that made it a preferred choice in semiconductor handling, medical device assembly, PCB drilling, and precision dispensing lines across Asia, Europe, and North America. When this motor fails or degrades, the entire axis goes offline. Having a tested, original replacement on the shelf is the difference between a 30-minute swap and a multi-day production loss.

Critical Technical Specs Table

Preventive Maintenance Strategy

A stepping motor failure rarely occurs in isolation. In most industrial control cabinets and motion systems, the E2-500-250-A operates as part of an integrated axis assembly. When performing scheduled maintenance or post-failure inspection, experienced maintenance engineers know that replacing only the failed motor without auditing the surrounding components is a recipe for repeat downtime.

Begin with the Alpha Series driver unit — models such as the RKD514L-A or EMP401 are the direct drive partners for the E2-500-250-A. Driver output stage degradation is a common root cause of motor overheating and encoder signal corruption. If the motor has failed prematurely, inspect the driver’s current output waveform before installing the replacement. Alongside the driver, check the encoder cable assembly and motor power cable: shielding integrity, connector pin condition, and cable routing near high-frequency inverter lines are frequent sources of intermittent faults that are misdiagnosed as motor failures.

Within the same control cabinet, verify the condition of the 24VDC control power supply module feeding the driver logic circuit. Voltage ripple or brownout conditions accelerate driver IGBT wear and can corrupt encoder pulse trains. If your system uses a PLC I/O module (such as a Mitsubishi QX40 or Siemens SM321) to issue pulse commands to the driver, inspect the output channel for contact wear or signal delay. A degraded pulse output will cause positioning errors that appear as motor faults but originate upstream.

For systems with multiple axes, it is sound practice to inspect terminal blocks and DIN rail connectors in the motor circuit at the same time. Loose terminals cause intermittent open circuits that are notoriously difficult to trace under load. If your cabinet includes a noise filter module or line reactor on the driver input, verify that these components are within specification — degraded filtering allows switching noise to propagate into the encoder feedback line, causing false stall detection in the closed-loop system.

Where the E2-500-250-A is used in multi-axis gantry or XY table configurations, also schedule inspection of the mechanical coupling and linear guide bearing on the same maintenance visit. Bearing preload loss increases reflected inertia, which can push the closed-loop system into oscillation even with a healthy motor. Finally, if your facility maintains a HMI or operator panel connected to the same PLC network, use the maintenance window to verify that axis status displays and alarm histories are logging correctly — these records are invaluable for predictive maintenance planning.

Strategic Replacement Solutions

The E2-500-250-A was introduced as part of ORIENTAL MOTOR’s Alpha Series platform, which has been in active deployment since the early 2000s. Many facilities running this motor are operating legacy motion systems that are no longer in active production by the OEM but remain critical to ongoing manufacturing operations. The strategic value of sourcing an original E2-500-250-A — rather than attempting a cross-brand substitution — lies in three areas.

First, zero re-commissioning time: an original replacement drops directly into the existing mechanical mount and connects to the existing Alpha Series driver without parameter changes. No re-tuning, no encoder reconfiguration, no PLC program modification. The axis is back online within the time it takes to physically swap the motor. Second, system compatibility assurance: the 5-phase winding configuration and 500 P/R encoder specification are matched to the driver’s closed-loop algorithm. A substitute motor with different pole count or encoder resolution will require driver parameter adjustment and may not achieve the original positioning accuracy. Third, warranty coverage: our 12-month warranty on the E2-500-250-A covers the full replacement unit, giving your maintenance team documented assurance that the spare is tested and traceable.

For facilities managing end-of-life Alpha Series systems, we recommend purchasing a minimum of two E2-500-250-A units per active axis as a strategic buffer stock. The cost of a second spare is negligible compared to the production loss from a second unplanned outage while waiting for international shipping lead times.

Support FAQ

Q1: Is this an original ORIENTAL MOTOR E2-500-250-A or an aftermarket equivalent?
This is an original ORIENTAL MOTOR E2-500-250-A sourced directly from authorized supply channels. Each unit is individually inspected and function-tested prior to shipment. We do not supply remanufactured or third-party substitute motors under this listing.

Q2: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, encoder failure, winding insulation breakdown, and bearing failure under normal operating conditions. It does not cover damage resulting from incorrect driver configuration, overvoltage, mechanical overload, or improper installation. Warranty claims are processed with photographic documentation and a brief fault description.

Q3: Can the E2-500-250-A be used with a non-ORIENTAL MOTOR driver?
The E2-500-250-A is designed for use with ORIENTAL MOTOR Alpha Series 5-phase drivers. While the motor’s physical and electrical parameters are documented, using it with a third-party driver requires careful matching of phase current, step resolution, and encoder interface protocol. We recommend pairing it with the original Alpha Series driver for guaranteed performance and to maintain warranty validity.

Q4: What is your typical lead time and shipping process?
In-stock units are tested, packaged in anti-static protective packaging, and dispatched within 1–3 business days. International shipments are supported with full commercial invoice and packing list documentation. Tracking information is provided upon dispatch. For urgent requirements, please contact us directly to confirm real-time stock availability and expedited shipping options.
