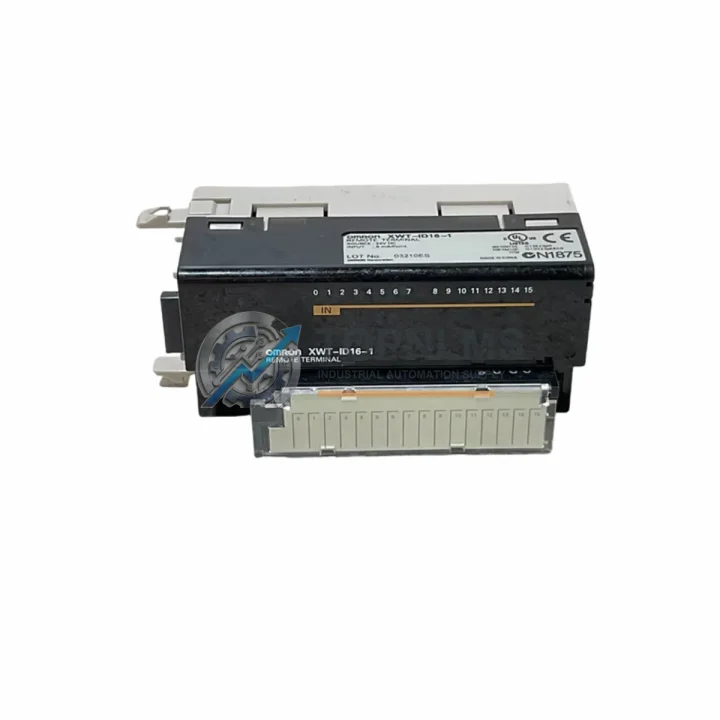

OMRON XWT-ID16 Replacement for CompoNet Slave Series

Product Overview

OMRON XWT-ID16 Replacement for CompoNet Slave Series: Seamless Transition from Legacy I/O Systems

Upgrading or replacing a failed OMRON XWT-ID16 CompoNet 16-Point Digital Input Slave Unit no longer needs to mean extended downtime or costly system redesigns. The XWT-ID16 is a compact, DIN-rail-mountable digital input slave module designed for OMRON’s CompoNet fieldbus network, delivering 16 points of 24 VDC digital input capacity in a space-efficient form factor. Whether you are migrating from an aging CompoNet segment, replacing a discontinued I/O node, or expanding an existing control architecture, this module provides a verified drop-in solution with full protocol and wiring compatibility.

Many facilities running OMRON CS1, CJ1, or CJ2 series PLCs with CompoNet master units such as the CS1W-RPT01 or CJ1W-CRM21 have relied on the XWT-ID16 as a distributed I/O node for years. As production lines evolve and original modules reach end-of-life, sourcing a direct replacement that maintains the same CompoNet node address configuration, the same 16-point NPN/PNP input wiring layout, and the same DIN-rail footprint is critical to avoiding rewiring or reprogramming costs. The XWT-ID16 satisfies all of these requirements without modification to your existing ladder logic or I/O mapping tables.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CompoNet segment migration rarely involves a single module swap. In practice, engineers replacing the XWT-ID16 are often simultaneously addressing adjacent components in the same control cabinet or field junction box. The CompoNet network trunk cable and drop cables connecting to the XWT-ID16 typically terminate at a CompoNet repeater unit such as the CS1W-RPT01, which extends segment length and isolates electrical faults between branches — replacing this unit alongside the XWT-ID16 is advisable if the repeater has been in service for more than five years.

On the output side of the same control cabinet, facilities frequently pair the XWT-ID16 with an XWT-OD16 or XWT-OD08 digital output slave unit to complete the I/O node. If the output slave is also showing intermittent faults or communication errors on the CompoNet master’s diagnostic display, sourcing both modules together reduces the risk of a second unplanned shutdown within weeks of the first repair. Similarly, the XWT-DA04 analog output slave and XWT-AD04 analog input slave are common companions in mixed-signal CompoNet segments handling process control loops alongside discrete I/O.

For facilities where the CompoNet master unit itself — typically a CJ1W-CRM21 installed in a CJ-series rack — is approaching its service limit, a proactive upgrade to the CJ2W-CRM21 master on a CJ2M or CJ2H CPU rack provides a forward-compatible platform that continues to support all existing XWT-series slave nodes without any slave-side hardware changes. The CJ2 series CPU units, including the CJ2M-CPU31 and CJ2H-CPU64, offer expanded memory and faster scan times that benefit high-density I/O applications.

Power distribution within the control cabinet should also be reviewed during any CompoNet segment upgrade. The S8VK-series or S8VS-series 24 VDC power supply units from OMRON are commonly used to feed both the CompoNet bus power and the field sensor circuits connected to the XWT-ID16’s input terminals. Verifying that the power supply’s output current rating accommodates the full 16-channel sensor load — particularly when replacing NPN sensors with higher-current PNP types — prevents nuisance tripping after the module swap.

If the upgrade project also involves replacing the operator interface, the NB-series or NS-series HMI panels connected to the host CJ or CS series PLC via Ethernet or RS-232C remain fully compatible with the upgraded CompoNet I/O architecture, since the HMI communicates with the CPU, not directly with the slave modules. This means HMI screen logic and tag mappings require no modification when the XWT-ID16 is replaced.

Retrofit Guidance FAQ

Q: Do I need to modify my ladder logic or I/O table when replacing a failed XWT-ID16 with a new unit?
A: No. The XWT-ID16 replacement uses the same node address (set via rotary switch on the module body) and the same 16-point input word allocation in the CompoNet master’s I/O table. Your existing CX-Programmer project file requires no changes. Simply set the rotary switch to the same node address as the failed unit before powering up.

Q: Is the wiring connector compatible with my existing field cables?
A: Yes. The XWT-ID16 uses standard M8 4-pin connectors for sensor inputs, which are compatible with all standard M8 sensor cables. If your installation uses a flat cable connection variant, verify the connector type on your existing module before ordering.

Q: Can the XWT-ID16 operate on a 2-wire CompoNet segment alongside 4-wire devices?
A: The XWT-ID16 supports both 2-wire and 4-wire CompoNet trunk configurations. Mixed segments are supported by the CompoNet master unit, provided the total node count and segment length remain within the master’s specification limits.

Q: What is the physical installation space required?
A: The XWT-ID16 mounts on standard 35 mm DIN rail. Its compact width allows it to be installed in the same slot vacated by the failed module without any panel modification. Confirm the DIN rail section is clean and the end brackets are secure before snapping the new module in place.

Q: How do I verify the replacement module is communicating correctly after installation?
A: After powering up, the CompoNet master unit (e.g., CJ1W-CRM21) will automatically detect the slave at the configured node address. The MS and NS indicator LEDs on the XWT-ID16 should both illuminate green within a few seconds. Any red or flashing indicators indicate a node address conflict or wiring fault that should be resolved before returning the line to production.

Warranty Assurance

Every OMRON XWT-ID16 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes functional verification including communication handshake testing on a live CompoNet segment and input channel continuity checks across all 16 points. Units that do not pass this pre-shipment inspection are not released for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is one business day for initial fault assessment. Customers are not required to return the defective unit before a replacement is dispatched for critical production applications — contact our team to arrange advance replacement under warranty.

Stock is maintained in Xiamen, China, with express international shipping available to most destinations within 3–7 business days. Bulk orders for MRO inventory programs and system integrators are supported with volume pricing and consolidated shipment options. All units are shipped in original or equivalent anti-static protective packaging with full documentation.
