OMRON DRT2-TS04P Original Industrial Spare: System Stability & Maintenance Value

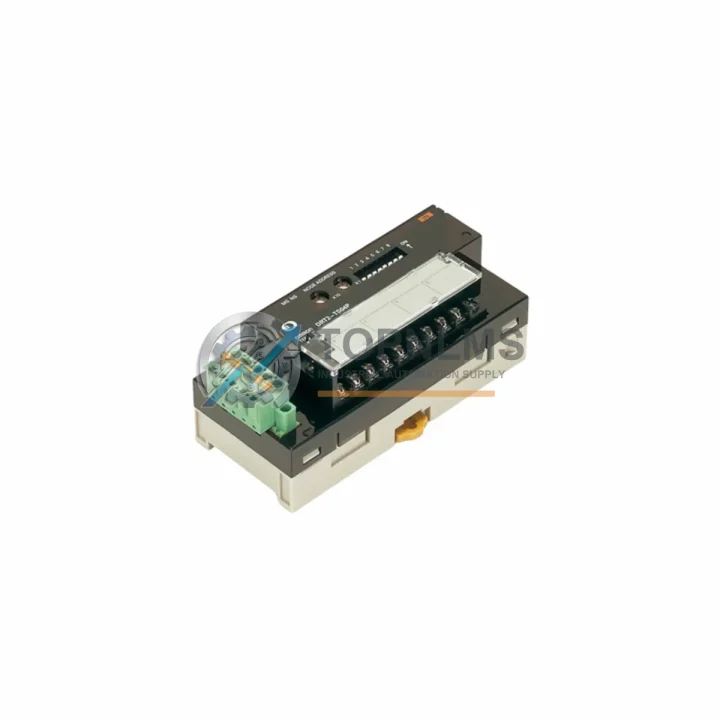

The OMRON DRT2-TS04P is a 4-channel PNP thermocouple input module from the DRT2 Series, designed for seamless integration into OMRON DeviceNet-based distributed I/O systems. In industrial environments where temperature monitoring is mission-critical — from injection molding lines and heat treatment furnaces to food processing and chemical reactors — the DRT2-TS04P delivers precise, real-time thermocouple data directly to the PLC controller over the DeviceNet fieldbus. Sourced as an original OMRON spare, this module is the definitive replacement for aging or failed units in existing DRT2 installations, ensuring zero compatibility risk and full system continuity.

Maintaining an original spare on the shelf is not merely a procurement decision — it is a risk management strategy. Unplanned downtime caused by a failed thermocouple input module can halt an entire production line within minutes. With the DRT2-TS04P pre-stocked and tested, maintenance teams can execute a hot-swap replacement in under 30 minutes, restoring full temperature monitoring capability without waiting days or weeks for emergency sourcing.

Critical Technical Specs

Preventive Maintenance Strategy

A failed DRT2-TS04P rarely fails in isolation. In a DeviceNet distributed I/O cabinet, the thermocouple input module operates as part of an interconnected measurement and control chain. When scheduling a planned maintenance window or responding to a temperature monitoring alarm, experienced maintenance engineers know to inspect the entire signal path — not just the module itself.

Begin with the DeviceNet trunk cable and drop cables: signal degradation or loose termination resistors at either end of the DeviceNet segment are a common root cause of intermittent module communication errors. Inspect the DeviceNet power supply unit (typically a dedicated 24 VDC bus power supply) for voltage sag under load, as insufficient bus power causes erratic behavior across all connected DRT2 slaves simultaneously. While the cabinet is open, verify the condition of the DRT2-ID16 or DRT2-OD16 digital I/O modules sharing the same DeviceNet segment — these modules share the same bus and a node address conflict or wiring fault on a neighboring slave can disrupt the entire network.

For the thermocouple wiring itself, inspect the thermocouple extension cables for insulation damage, oxidation at terminal connections, and correct polarity. Thermocouple signal integrity is highly sensitive to ground loops and electromagnetic interference from adjacent VFDs or contactors; installing signal isolators on each thermocouple channel is a best practice in high-noise environments. Check the terminal blocks (such as OMRON XW5T series or equivalent) for loose screws and corrosion, particularly in humid or chemically aggressive atmospheres.

At the controller level, confirm that the DeviceNet master unit (e.g., CS1W-DRM21 or CJ1W-DRM21) has current firmware and that the I/O table allocation for the DRT2-TS04P node address is correctly mapped in the PLC program. A replacement module must be assigned the same node address as the failed unit — verify this with the rotary switch on the module body before installation. If the system uses an OMRON CX-Integrator or Sysmac Studio network configuration tool, re-scan the DeviceNet network after replacement to confirm the new module is recognized and its I/O data is correctly allocated.

Finally, review the PLC CPU module (CS1G, CJ2M, CP1H, or NJ/NX series) error log for any DeviceNet communication error codes recorded prior to the module failure — these logs often reveal whether the root cause was the module itself, the bus power, or a network topology issue. Stocking a spare DeviceNet termination resistor set (121 Ω, 1/4 W) alongside the DRT2-TS04P is a low-cost, high-value addition to any maintenance kit.

Strategic Replacement Solutions

The DRT2-TS04P is the direct original replacement for any DRT2-TS04P unit currently installed in a DeviceNet distributed I/O system. Because it is an original OMRON module — not a third-party clone or remanufactured unit — it carries the full factory specification, including calibrated analog input accuracy and DeviceNet protocol compliance. This eliminates the compatibility verification burden that comes with aftermarket alternatives and ensures the replacement passes any post-maintenance functional test without parameter adjustment.

For facilities managing aging OMRON DeviceNet systems originally commissioned in the 2000s or 2010s, the DRT2 series remains fully supported by current OMRON PLC platforms. The DRT2-TS04P can be integrated into newer CS2, CJ2, NJ, or NX controller architectures via the same DeviceNet master units, providing a cost-effective path to extend the operational life of existing field wiring and cabinet infrastructure without a full system migration. This approach — retaining proven field devices while upgrading the controller tier — is a widely adopted strategy in process industries where rewiring costs and production interruption risks outweigh the benefits of wholesale system replacement.

Procurement teams should note that original OMRON DRT2 series modules are subject to lead time variability as the product line matures. Securing one or two spare units as part of a planned annual maintenance budget is significantly more cost-effective than emergency procurement at premium pricing during an unplanned outage. Each unit shipped from TOPNLMS is individually tested, documented, and covered by a 12-month warranty — providing the procurement confidence required for critical spare parts inventory decisions.

Support FAQ

Q1: Is the DRT2-TS04P compatible with my existing OMRON DeviceNet system?
Yes. The DRT2-TS04P is a standard DRT2 Series DeviceNet slave and is compatible with all OMRON DeviceNet master units, including the CS1W-DRM21, CJ1W-DRM21, and equivalent units. It operates on any DeviceNet network conforming to the ODVA DeviceNet specification. Node address assignment is via rotary switch on the module, and EDS file registration in CX-Integrator or Sysmac Studio is straightforward using the standard OMRON EDS file for this model.

Q2: What is the warranty coverage and how are units tested before shipment?
All DRT2-TS04P units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Each unit undergoes functional testing prior to dispatch to verify communication integrity and channel input response. A test report is available upon request for quality-critical procurement processes.

Q3: How quickly can I replace a failed DRT2-TS04P on-site?
With a pre-stocked spare, a trained maintenance technician can complete the physical swap in 15–30 minutes: power down the DeviceNet segment (or use hot-swap procedures if supported by your master unit configuration), remove the failed module, install the replacement with the same node address setting, reconnect thermocouple wiring, and restore power. A network re-scan in CX-Integrator confirms successful recognition. No PLC program changes are required if the node address and I/O allocation are unchanged.

Q4: How should I manage spare parts inventory for DRT2 series modules?
