OMRON TJ1-MC04 Original Industrial Spare Trajexia Compatible

Product Overview

OMRON TJ1-MC04 Original Industrial Spare — Trajexia Series System Stability & Maintenance Value

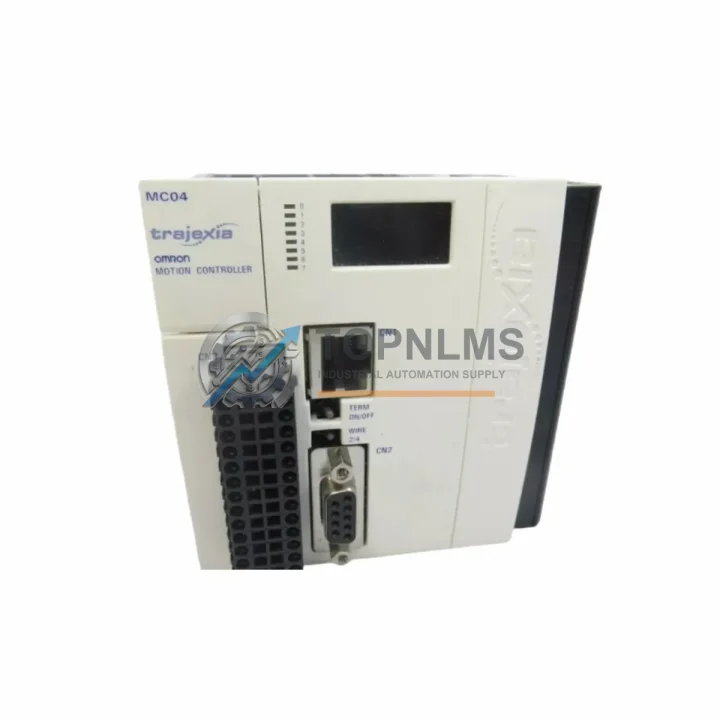

The OMRON TJ1-MC04 is a 4-axis motion controller belonging to OMRON’s Trajexia series — a platform widely deployed in precision manufacturing, packaging lines, semiconductor handling, and high-speed assembly automation. As a genuine original spare part, the TJ1-MC04 is the definitive replacement unit for facilities that depend on Trajexia-based motion control architectures and cannot afford unplanned downtime caused by controller failure or degraded axis performance.

In industrial environments where continuous production is paramount, having a verified, tested TJ1-MC04 in your maintenance inventory is not optional — it is a core element of any responsible spare parts strategy. Whether you are managing a single production cell or a multi-line facility, the TJ1-MC04 ensures that your motion control layer remains operational, your axis coordination remains precise, and your system recovery time after a fault event is measured in minutes rather than days.

Critical Technical Specs

Preventive Maintenance Strategy

A TJ1-MC04 replacement is rarely an isolated event. In practice, when a Trajexia motion controller shows signs of axis drift, communication faults, or program execution errors, the root cause often involves the broader control cabinet ecosystem. A disciplined maintenance approach requires inspecting and — where appropriate — stocking spares for the components that interact most closely with the TJ1-MC04.

The TJ1-ML04 backplane is the physical and electrical host for the TJ1-MC04; a degraded backplane connector or power rail can cause intermittent controller faults that are misdiagnosed as controller failure. Always inspect the backplane for corrosion, loose seating, and power rail voltage stability before condemning the controller itself. Similarly, the TJ1-PRT PROFIBUS communication module and TJ1-DRT DeviceNet module — if installed in adjacent slots — should be checked for firmware compatibility and connector integrity during any TJ1-MC04 swap.

On the servo side, the MECHATROLINK-II cable harness connecting the TJ1-MC04 to each axis drive is a frequent wear item. Inspect MECHATROLINK-II communication cables for shield continuity and connector pin condition; a single degraded cable can cause axis loss-of-sync faults that appear as controller errors. If your facility runs OMRON Σ-V series servo drives (such as the SGDV series) or Σ-II series drives, verify that drive firmware versions remain within the compatibility matrix for the TJ1-MC04 firmware installed.

Power quality is another critical factor. The 24 VDC supply feeding the Trajexia backplane should be sourced from a dedicated OMRON S8VS or equivalent DIN-rail power supply module. Voltage sag or ripple on this rail is a known cause of controller resets and memory corruption in motion programs. During scheduled maintenance, measure the supply voltage under load and replace aging power supply units proactively — typically at the 5–7 year mark in continuous-duty environments.

For facilities using the TJ1-MC04 in conjunction with an OMRON CJ2M or CS1 series PLC for supervisory logic, inspect the EtherNet/IP or serial communication link between the PLC and the Trajexia system. Communication timeouts at this interface can trigger motion program aborts that are logged as controller faults. Stocking a spare CJ1W-EIP21 EtherNet/IP unit or the relevant serial communication board ensures that the supervisory layer can be restored independently of the motion controller.

Finally, review the terminal blocks and I/O wiring on any TJ1-series I/O expansion modules installed in the same cabinet. Loose terminals and oxidized contacts on digital I/O modules are a leading cause of spurious fault signals that interrupt motion sequences. A comprehensive cabinet inspection — covering power modules, communication modules, servo drive parameter backups, and cable integrity — performed concurrently with a TJ1-MC04 replacement maximizes the value of the maintenance window and reduces the probability of a repeat shutdown within the same production quarter.

Strategic Replacement Solutions

The TJ1-MC04 was introduced as part of OMRON’s Trajexia platform, which has been in service at manufacturing facilities worldwide for over a decade. Many of these installations continue to operate reliably, but the controller hardware is now in the mature-to-end-of-life phase of its product lifecycle. OMRON has progressively transitioned its motion control portfolio toward the NX-series Machine Automation Controller (MAC) platform, which offers expanded axis counts, EtherCAT-native communication, and integrated safety functions.

However, for the majority of Trajexia installations, a full platform migration is neither economically justified nor operationally practical in the short term. The correct strategy is to maintain a verified stock of TJ1-MC04 units to extend the operational life of existing Trajexia systems for an additional 5–10 years, while planning a phased migration to NX-series or OMRON Sysmac NJ-series controllers during scheduled capital expenditure cycles.

A genuine original TJ1-MC04 replacement unit preserves full compatibility with existing MECHATROLINK-II servo networks, existing motion programs developed in MOTION PERFECT, and existing HMI interfaces — whether OMRON NS-series HMI panels or third-party SCADA systems communicating via serial or Ethernet. There is no need to re-engineer the motion program, re-tune servo axes, or reconfigure the supervisory PLC logic. The replacement is a direct drop-in that restores system performance to original specification within a single maintenance shift.

For facilities managing multiple Trajexia cells, a centralized spare parts inventory strategy — holding one TJ1-MC04 per 3–5 installed controllers — is the industry-standard approach to balancing inventory carrying cost against downtime risk. At TOPNLMS, each TJ1-MC04 unit is tested prior to shipment, documented with a test report, and covered by a 12-month warranty, giving your maintenance team the confidence to execute a rapid replacement without extended verification procedures on the production floor.

Support FAQ

Q1: Is this TJ1-MC04 compatible with my existing Trajexia backplane and MECHATROLINK-II servo network?
Yes. The TJ1-MC04 is designed for direct installation into any TJ1-series backplane (TJ1-ML04, TJ1-ML16, etc.) and communicates natively with MECHATROLINK-II compatible servo drives, including OMRON Σ-II and Σ-V series. No hardware modification is required. Verify that your existing motion program firmware version is compatible with the replacement unit’s firmware before powering up — firmware version matching is the only configuration step typically required.

Q2: What pre-shipment testing is performed on each TJ1-MC04 unit?
Each unit undergoes functional power-on testing, communication interface verification, and axis command response testing prior to shipment. A test record is included with the unit. The 12-month warranty covers functional defects identified during installation and commissioning, as well as in-service failures under normal operating conditions.

Q3: How should I manage TJ1-MC04 spare parts inventory for a multi-cell facility?
The recommended approach is to hold one spare TJ1-MC04 per 3–5 installed units, stored in an ESD-safe environment at controlled temperature and humidity. Rotate stock on a 3–5 year cycle to ensure that stored units remain within their rated shelf life. For critical single-point-of-failure installations, a 1:1 hot-spare ratio may be justified based on your facility’s downtime cost model.

Q4: Can I use this TJ1-MC04 to replace a unit from a different Trajexia axis count configuration (e.g., TJ1-MC16)?
No. The TJ1-MC04 supports up to 4 MECHATROLINK-II axes. It is not interchangeable with the TJ1-MC16 (16-axis) or other axis-count variants. Ensure that the replacement unit matches the axis count of the installed controller. If you are unsure of your installed model, the model number is printed on the front label of the controller module and is also recorded in the MOTION PERFECT project file header.
