OMRON R7D-BP02HH-Z Replacement for SMARTSTEP 2 R7D

Product Overview

OMRON R7D-BP02HH-Z Replacement for SMARTSTEP 2 R7D: Smooth Transition & Legacy System Compatibility

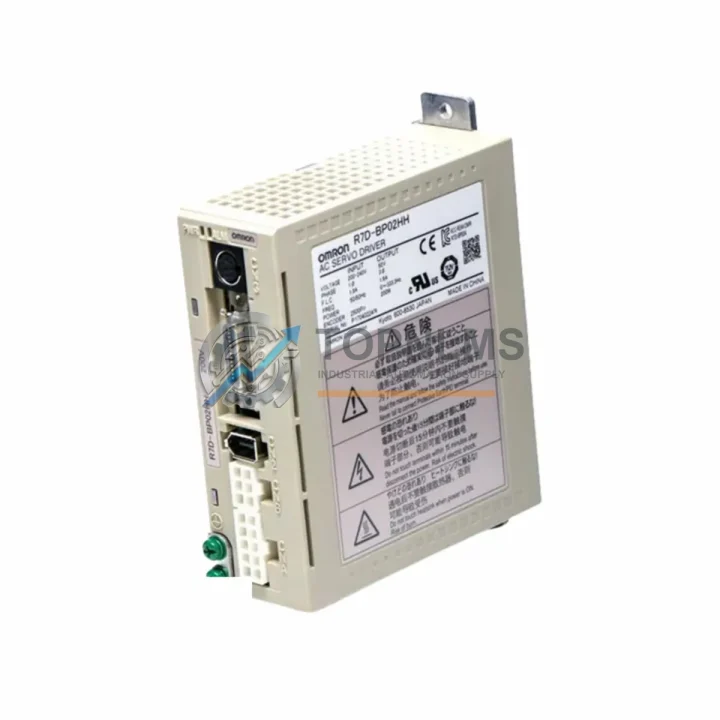

The OMRON R7D-BP02HH-Z is a 200W single-phase AC servo drive from the SMARTSTEP 2 R7D Series, widely deployed in packaging machinery, semiconductor handling equipment, conveyor systems, and precision positioning applications across Asia and globally. As OMRON progressively phases out legacy SMARTSTEP 2 components, many facilities operating R7D-series servo systems face an urgent need to source verified replacement units or plan a structured migration to current-generation drives. TOPNLMS maintains ready stock of the R7D-BP02HH-Z to support both immediate breakdown replacement and planned retrofit programs, with same-week dispatch from Xiamen and 12-month warranty coverage on every unit.

Whether your maintenance team needs a direct drop-in replacement to restore a downed production line or your engineering department is evaluating a phased migration from the SMARTSTEP 2 platform to OMRON’s G5 or G-Series servo systems, this page provides the technical and procurement information you need to make a confident decision.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful R7D-BP02HH-Z replacement rarely involves the drive alone. In most SMARTSTEP 2 installations, the servo drive operates as part of a tightly integrated motion control architecture. During a planned retrofit or emergency swap, engineers typically need to address several adjacent components to ensure the system returns to full specification.

The R7D-BP02HH-Z pairs directly with the R7A-CEA002S or R7A-CEA002S-BS servo motor (200W, 3,000 rpm), and the existing motor cable and encoder cable assemblies are fully reusable provided they are undamaged. If the encoder cable shows wear or connector corrosion — common in high-cycle packaging environments — replacing it with a new R7A-CAE003 encoder cable at the same time as the drive eliminates a latent failure point.

On the controller side, the R7D-BP02HH-Z receives pulse commands from an upstream PLC or motion controller. Sites running OMRON CJ2M or CP1H PLCs with built-in pulse outputs will find the interface completely transparent — no ladder logic changes are required for a like-for-like drive replacement. Facilities using a dedicated motion controller such as the OMRON CJ1W-NC413 or CJ1W-NC213 position control unit should verify that the axis parameters (electronic gear ratio, acceleration/deceleration time constants) stored in the NC unit match the replacement drive’s default settings before enabling servo-on.

Power supply integrity is a frequently overlooked factor in servo drive replacements. The R7D-BP02HH-Z requires a stable single-phase AC supply with low harmonic distortion. If the control cabinet houses an aging S8VS or S8VK series 24V DC power supply for the I/O circuit, this is an appropriate time to inspect its output ripple and replace it if it is approaching end of life, as a degraded DC rail can cause intermittent drive faults that are difficult to diagnose.

For sites migrating from a first-generation SMARTSTEP R7D drive to the SMARTSTEP 2 R7D-BP02HH-Z, the primary wiring difference is the brake interlock circuit. The SMARTSTEP 2 drive handles the motor holding brake output internally via CN1 pins, whereas some first-generation installations used an external relay. Review the wiring diagram against OMRON’s W450 user manual to confirm brake circuit compatibility before powering up.

If the retrofit scope extends to the HMI layer, sites running an OMRON NB7W-TW01B or NS8-TV11B-V2 touch panel communicating with the host PLC over RS-232C or Ethernet/IP will see no impact from the drive replacement, as the HMI communicates exclusively with the PLC, not the servo drive directly.

Finally, for facilities planning a longer-term migration from the SMARTSTEP 2 platform to OMRON’s current G5 Series (R88D-KN02H-ECT) EtherCAT servo drives, the R7D-BP02HH-Z serves as an ideal interim solution: it restores production immediately while the engineering team prepares the EtherCAT network topology, updates the Sysmac Studio motion program, and qualifies the new motor-drive combination on a test rig before full rollout.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring harness when replacing the R7D-BP02HH-Z?
A: Yes. The CN1 50-pin I/O connector pinout is identical across the SMARTSTEP 2 R7D series. Provided your harness is in good condition, it can be reconnected without modification. Inspect connector pins for oxidation and re-crimp any suspect contacts before reinstallation.

Q: Do I need to change my PLC program after replacing the drive?
A: For a like-for-like R7D-BP02HH-Z replacement, no PLC program changes are required. The drive accepts the same pulse train interface. However, if you are migrating from a first-generation SMARTSTEP R7D, verify the electronic gear ratio parameters match your application’s resolution requirements.

Q: What communication protocol does the R7D-BP02HH-Z use?
A: The R7D-BP02HH-Z uses a pulse train interface (pulse/direction or CW/CCW selectable via parameter). It does not support fieldbus protocols such as EtherCAT, MECHATROLINK, or DeviceNet. If your upgrade path requires fieldbus integration, consider the OMRON G5 Series as a future migration target.

Q: How much control cabinet space does the drive require?
A: The R7D-BP02HH-Z has a compact form factor consistent with the SMARTSTEP 2 series. It is dimensionally identical to other 200W units in the R7D range, so no cabinet modifications are needed for a direct replacement.

Q: How do I back up and restore drive parameters?
A: Use OMRON CX-Drive software connected via the drive’s USB or RS-232C port. Save the parameter file from the outgoing drive before removal, then upload it to the replacement unit. Verify all parameters — particularly electronic gear ratio, gain settings, and I/O polarity — before enabling servo-on.

Q: What if my application requires a holding brake?
A: The R7D-BP02HH-Z supports motor holding brake control via CN1. Confirm the brake output wiring matches the OMRON W450 manual schematic. If migrating from a first-generation SMARTSTEP drive with an external brake relay, the relay circuit may need to be bypassed or rewired.

Warranty Assurance

Every OMRON R7D-BP02HH-Z unit dispatched by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-dispatch inspection protocol includes visual examination, power-on functional test, and parameter verification against OMRON factory defaults. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team is available to assist with installation questions, parameter configuration, and fault diagnosis via email at [email protected] or by phone at +86 18359293191.

We maintain buffer stock of the R7D-BP02HH-Z to support emergency breakdown orders. Standard dispatch is within 3–5 business days from Xiamen; expedited same-week dispatch is available for urgent production-down situations. We ship globally via DHL, FedEx, and UPS with full tracking and commercial invoice documentation for customs clearance.

For volume procurement, OEM replacement programs, or scheduled maintenance stock agreements, please contact our sales team directly to discuss pricing, lead times, and consignment options.
