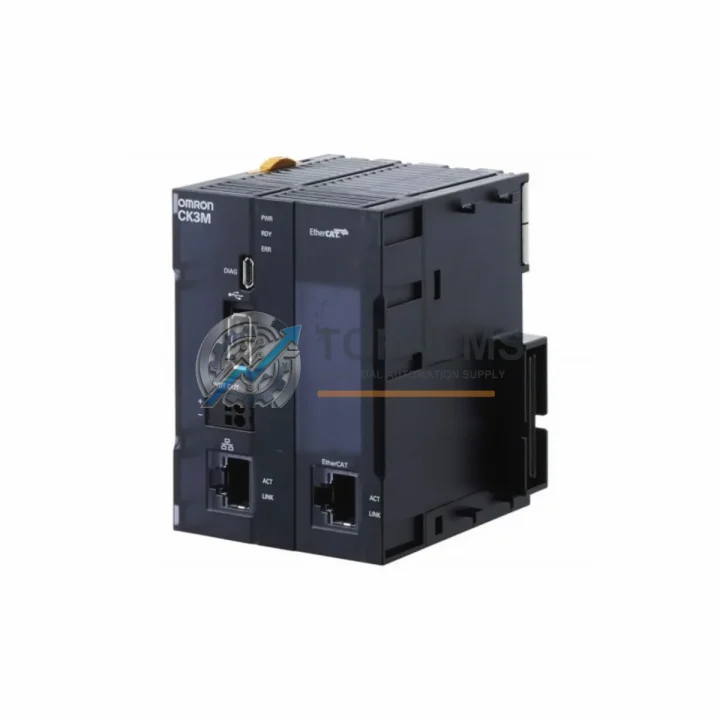

OMRON CK3M-CPU120 Ruggedized Motion Controller for Harsh Environments

Product Overview

OMRON CK3M-CPU120 Ruggedized Motion Controller for Harsh Environments

The OMRON CK3M-CPU120 is a high-performance programmable multi-axis motion controller engineered for continuous, fault-tolerant operation in the most demanding industrial environments. As part of OMRON’s CK3M Series, this module delivers synchronized multi-axis control with deterministic real-time response, making it the backbone of precision automation systems deployed across oil & gas processing, mining, power generation, water treatment, metallurgy, and heavy manufacturing facilities worldwide.

Designed to operate reliably under conditions of extreme temperature variation, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference (EMI), the CK3M-CPU120 maintains stable trajectory control and I/O synchronization even when conventional controllers would fail. Its ruggedized architecture ensures that production lines, robotic cells, and critical infrastructure systems remain operational without unplanned downtime — a decisive advantage in environments where every minute of stoppage translates to significant financial and safety risk.

The CK3M-CPU120 integrates seamlessly within OMRON’s broader automation ecosystem. It communicates natively with OMRON NX-series I/O modules and NX-ECC203 EtherCAT coupler units, enabling distributed I/O expansion across large control cabinets and remote field panels. When paired with OMRON G5-series servo drives and R88D-KN servo amplifiers, the CK3M-CPU120 delivers sub-millisecond synchronization across up to 4 axes, supporting complex interpolation profiles required in CNC machining, semiconductor handling, and precision assembly lines.

In high-vibration environments such as mining conveyors or offshore drilling platforms, the module’s solid-state design and conformal-coated PCB resist mechanical shock and corrosive atmospheres. The CK3M-CPU120 operates reliably alongside OMRON NX-series safety modules — including the NX-SL3300 safety logic unit — ensuring that functional safety requirements under IEC 62061 and ISO 13849 are met without compromising motion performance. Safety I/O signals from light curtains, emergency stops, and safety relays are processed in real time, enabling safe torque-off and controlled stop functions without interrupting the broader motion sequence.

Power integrity is critical in harsh industrial sites. The CK3M-CPU120 is typically powered through OMRON S8VK-series industrial power supplies, which provide stable 24 VDC output with wide input voltage tolerance and active power factor correction — essential in facilities with fluctuating grid quality. Surge protection and EMI filtering built into the power supply chain protect the CK3M-CPU120 from transient voltage spikes common in heavy motor-drive environments.

Communication flexibility is a core strength of the CK3M-CPU120. It supports EtherCAT as its primary motion network, enabling high-speed, deterministic data exchange with servo drives, I/O nodes, and vision systems. For supervisory integration, the module connects to SCADA and MES platforms via EtherNet/IP or Modbus TCP through OMRON NX-series communication modules such as the NX-EIP201. This multi-protocol capability ensures the CK3M-CPU120 fits into both greenfield automation projects and brownfield upgrades where legacy communication infrastructure must be preserved.

In critical infrastructure applications — including power plant turbine control, water treatment dosing systems, and steel mill rolling line automation — the CK3M-CPU120 provides the motion precision and system reliability that operators depend on. Its hot-swap-compatible design philosophy, combined with OMRON’s global spare parts network, means that replacement units can be sourced, tested, and installed rapidly, minimizing mean time to repair (MTTR) in facilities that operate 24/7/365.

TOPNLMS maintains verified stock of the OMRON CK3M-CPU120, sourced through authorized industrial distribution channels. Every unit undergoes pre-shipment functional verification to confirm firmware integrity, communication port operation, and axis configuration capability before dispatch. With a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions, procurement teams can confidently specify the CK3M-CPU120 as both a primary installation component and a strategic spare for existing CK3M-series motion systems.

Rugged Specifications Table

Comprehensive Protection Solutions

The CK3M-CPU120 is most effective when deployed as part of a fully integrated, protection-grade automation architecture. In a typical heavy-industry control cabinet, the module operates alongside OMRON NX-series digital I/O modules (such as the NX-ID5342 and NX-OD5256) that handle field-level sensor and actuator signals with high-speed interrupt response. The NX-ECC203 EtherCAT coupler bridges these I/O nodes to the CK3M-CPU120’s motion network, ensuring deterministic data exchange even in electrically noisy environments.

For servo motion, the CK3M-CPU120 pairs with OMRON 1S-series servo drives (e.g., R88D-1SN04H-ECT) and their corresponding 1S-series servo motors, delivering closed-loop position and torque control with vibration suppression algorithms that compensate for mechanical resonance in high-mass load applications. In facilities where variable-speed pump and fan control is required alongside precision motion, OMRON MX2-series or RX-series inverters (variable frequency drives) are integrated into the same control cabinet, with the CK3M-CPU120 coordinating their operation through digital I/O or fieldbus commands.

Safety is enforced at the hardware level through OMRON G9SP-series safety controllers or NX-SL3300 safety logic units, which monitor dual-channel emergency stop circuits, safety door interlocks, and light curtain signals. These safety modules communicate safe torque-off (STO) commands directly to the servo drives, while the CK3M-CPU120 executes controlled deceleration profiles to bring axes to a safe standstill without mechanical shock. OMRON G7SA-series safety relays provide redundant output switching for high-current safety circuits, ensuring fail-safe behavior even in the event of a single-point component failure.

Terminal modules such as OMRON XW2B-series connector terminal blocks simplify field wiring and reduce installation errors in dense control cabinets. For remote diagnostics and predictive maintenance, the CK3M-CPU120 integrates with OMRON’s Sysmac Studio software environment, enabling real-time axis monitoring, alarm logging, and motion trace capture — capabilities that are invaluable for root-cause analysis after unexpected stops in continuous production environments.

Application in Critical Infrastructure

In oil and gas processing facilities, the CK3M-CPU120 controls multi-axis positioning systems for valve actuators, pipeline inspection robots, and compressor alignment rigs. Its EMI immunity and wide operating temperature range allow it to function reliably in classified hazardous areas when installed in appropriately rated enclosures, maintaining precise control even as ambient temperatures fluctuate between outdoor winter conditions and heat-intensive process zones.

In mining operations, the module manages conveyor synchronization, crusher feed rate control, and ore sorting system actuation. The vibration resistance of the CK3M-CPU120 is particularly critical in these environments, where structural vibration from heavy machinery can disrupt less robust controllers. Its shock-rated design ensures that even in the event of nearby blasting operations or equipment impacts, the motion controller maintains its program state and resumes normal operation without requiring a manual restart.

Power generation facilities — including thermal, hydroelectric, and wind energy plants — rely on the CK3M-CPU120 for turbine blade pitch control, generator alignment, and auxiliary equipment positioning. The module’s deterministic EtherCAT communication ensures that control commands are executed within microseconds of their scheduled time, a requirement for grid-synchronization applications where timing errors can cause equipment damage or grid instability.

In water treatment and wastewater management plants, the CK3M-CPU120 coordinates multi-axis dosing pump systems, filter press automation, and sludge dewatering equipment. Its resistance to high-humidity environments and corrosive chemical atmospheres — when installed in sealed IP65 or IP67 control enclosures — ensures long service life in facilities where moisture and chemical vapors are constant operational realities.

Metallurgical and steel mill applications demand the highest levels of motion precision and thermal resilience. The CK3M-CPU120 controls rolling mill gap adjustment, coiler tension management, and continuous casting withdrawal systems, where axis synchronization errors of even a few micrometers can result in product defects or equipment damage. Its ability to maintain stable operation in the radiant heat environment of a steel plant — supported by forced-air cooling within the control cabinet — makes it a preferred choice for modernization projects replacing obsolete motion controllers in legacy rolling lines.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the CK3M-CPU120?
The 12-month warranty covers manufacturing defects and operational failures arising under normal industrial use conditions from the date of shipment. If the unit fails due to a verified component or firmware defect within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated specifications, or physical mishandling. Warranty claims are processed promptly, with replacement units dispatched from verified stock to minimize your system downtime.

Q2: What pre-shipment testing is performed on each CK3M-CPU120 unit?
Every CK3M-CPU120 unit in TOPNLMS inventory undergoes a structured pre-shipment functional verification process. This includes power-on self-test confirmation, EtherCAT communication port integrity check, firmware version verification against OMRON’s current release baseline, and visual inspection for physical damage or connector contamination. Units that do not pass all verification steps are quarantined and not dispatched. A test record is maintained for each unit, and customers may request verification documentation upon inquiry.

Q3: Is the CK3M-CPU120 compatible with my existing OMRON CK3M-series system?
Yes. The CK3M-CPU120 is designed as a drop-in replacement within the CK3M series architecture. It is compatible with existing NX-series I/O expansion units, EtherCAT servo drives from OMRON’s G5 and 1S series, and Sysmac Studio project files developed for CK3M-series controllers. Minor firmware updates may be required to align with your existing system version; TOPNLMS technical support can advise on compatibility specifics for your installation. If you are upgrading from an earlier CK3M CPU variant, axis configuration and motion program migration is typically straightforward with Sysmac Studio’s import tools.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for the CK3M-CPU120?
TOPNLMS maintains strategic stock of high-demand OMRON CK3M-series modules to support both immediate procurement needs and long-term spare parts programs. For facilities operating continuous production lines where unplanned downtime is unacceptable, we recommend establishing a consignment or reserved-stock arrangement to ensure a replacement CK3M-CPU120 is always available for rapid deployment. Our team can provide lead-time estimates, bulk pricing, and long-term supply agreements tailored to your maintenance and capital planning cycles. Contact us at [email protected] or +86 18359293191 to discuss your requirements.
