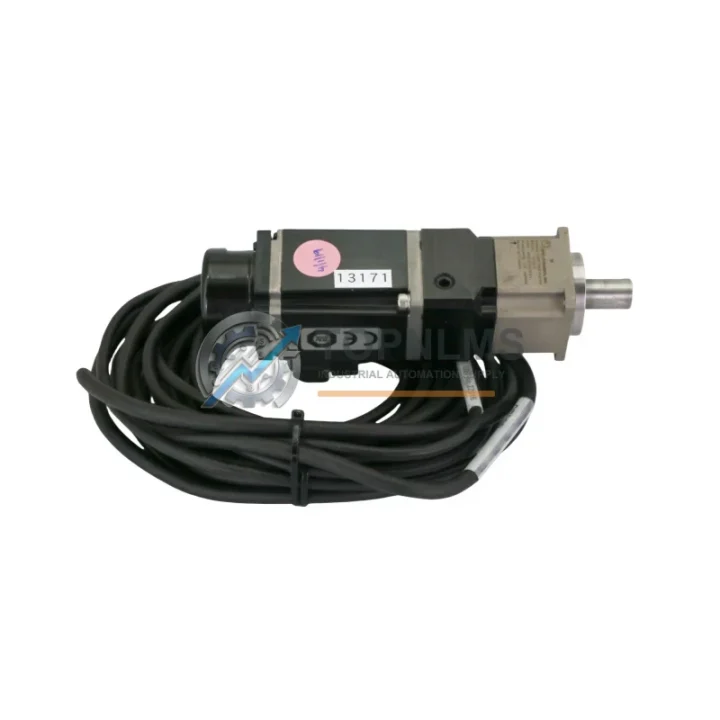

OMRON R88M-1M10030T-S2 Replacement/Upgrade Solution for 1S

Product Overview

OMRON R88M-1M10030T-S2 Replacement & Upgrade Solution for 1S Series

Migrating from an aging servo system to the OMRON R88M-1M10030T-S2 is one of the most straightforward upgrade paths available in modern industrial motion control. This 1kW, 3000 rpm AC servo motor belongs to OMRON’s 1S Series platform — a generation designed specifically to deliver smooth, high-resolution motion with minimal rewiring effort when replacing legacy W-Series, G5-Series, or third-party servo motors of equivalent frame size and power class. Whether your facility is retiring a discontinued model, responding to an end-of-life notice, or simply standardizing your spare-parts inventory around a single servo platform, the R88M-1M10030T-S2 offers a technically sound and commercially practical solution.

The motor ships with a 23-bit absolute encoder as standard, eliminating the need for homing routines after power cycling — a critical advantage in continuous-process environments where unplanned downtime carries significant cost. The IP67 ingress protection rating ensures reliable operation in wash-down, dusty, or humid environments common in food processing, pharmaceutical packaging, and precision machining cells. The 200V AC input class aligns with standard industrial panel voltages across Asia, Europe, and North America, simplifying integration into existing control cabinets without transformer modifications.

When replacing a W-Series motor such as the R88M-W10030H-S2 or an older G5-Series unit, engineers typically find that the mechanical mounting pattern, shaft diameter, and key dimensions are compatible within the same frame class, reducing mechanical retrofit time to under two hours in most documented field cases. The motor is designed to pair directly with the R88D-1SN10H-ECT servo driver, which accepts EtherCAT as its primary motion network — a protocol now standard across OMRON’s Sysmac automation platform, including NX-series and NJ-series machine controllers. If your existing system runs MECHATROLINK-III or analog ±10V command signals, a protocol bridge or driver swap to the appropriate R88D-1S variant resolves the interface mismatch without requiring motor replacement.

Wiring compatibility is a primary concern during any servo migration. The R88M-1M10030T-S2 uses OMRON’s standard 1S Series motor connector pinout, which differs from the W-Series 9-pin circular connector. Retrofit kits — including pre-crimped encoder cables and power cables terminated to the 1S connector standard — are available and should be ordered alongside the motor to avoid field delays. The encoder cable connects to the R88D-1SN driver’s CN2 port, while the power cable routes to the U/V/W terminals on the driver’s motor output stage. Brake wiring, where applicable, uses a dedicated 24VDC circuit independent of the main power stage.

From a control architecture perspective, the 1S Series integrates natively with OMRON’s Sysmac Studio engineering environment. Motion programs written for G5-Series axes can be migrated with moderate effort: axis variable names, cam profiles, and electronic gear ratios transfer directly, while driver parameter sets require re-mapping to the 1S parameter structure using the built-in parameter conversion utility in Sysmac Studio 1.40 and later. For sites running CX-Motion or CX-Drive for legacy W-Series commissioning, the transition to Sysmac Studio represents a one-time toolchain investment that pays dividends across the entire servo fleet.

Control cabinet space is rarely a limiting factor in this upgrade. The R88M-1M10030T-S2 motor body dimensions are within 5% of equivalent W-Series and G5-Series 1kW frames, and the paired R88D-1SN10H-ECT driver occupies a standard 35mm DIN rail slot with a width of 55mm — comparable to the R88D-GN10H-ML2 it commonly replaces. If your cabinet houses multiple axes, the 1S driver’s built-in regenerative resistor handles typical duty cycles without an external braking resistor, freeing panel space previously occupied by that component.

For multi-axis systems, the R88M-1M10030T-S2 operates alongside other 1S Series motors — including the R88M-1M20030T-S2 (2kW) and R88M-1M40030T-S2 (4kW) — on a shared EtherCAT ring, allowing mixed-power-class axes to be coordinated by a single NX102 or NJ501 machine controller without additional motion network hardware. Auxiliary components such as the R88A-CAKA003SR encoder cable, R88A-CAGA003SR power cable, and the NX-ECC203 EtherCAT coupler are commonly ordered as part of a complete axis retrofit kit. Signal isolators may be required at the I/O interface if legacy 24VDC sensors with long cable runs are retained from the original system.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete axis retrofit around the R88M-1M10030T-S2 typically involves several supporting components sourced from the same 1S Series ecosystem. The R88D-1SN10H-ECT servo driver is the primary pairing unit, providing EtherCAT connectivity and full parameter compatibility with the motor’s 23-bit encoder feedback. Encoder signal integrity over longer cable runs is maintained using the R88A-CAKA003SR shielded encoder cable, which is terminated to the 1S connector standard and available in lengths from 3m to 20m.

On the power distribution side, the R7D-AP04H or equivalent 24VDC power supply module feeds the driver’s control circuit, while the main 200V AC feed connects through a noise filter — typically the R88A-FIK102-RE — to suppress conducted emissions that could affect adjacent drives or PLCs on the same panel. For multi-axis cabinets, the NX-PD9212 power supply unit for NX I/O racks and the NX-ECC203 EtherCAT coupler are standard additions when expanding the Sysmac platform alongside the servo upgrade.

If the legacy system included a standalone HMI communicating over Modbus RTU or RS-232, the NB7W-TW01B or NA5-series HMI panels integrate directly with the NJ/NX controller over Ethernet/IP, providing a migration path for operator interface screens without requiring a full SCADA replacement. I/O modules such as the NX-ID5342 (digital input) and NX-OD5256 (digital output) slot into the NX I/O rack alongside the EtherCAT coupler, replacing legacy remote I/O racks that may have communicated over DeviceNet or CompoNet in older OMRON installations.

For sites where the existing machine frame uses a different servo brand — such as a Yaskawa SGMJV-01A or Mitsubishi HG-KR13 in the same power class — the 80mm flange and 14mm shaft dimensions of the R88M-1M10030T-S2 allow direct mechanical substitution, with the driver and cabling representing the primary change scope. Signal isolators at the analog command interface may be retained temporarily during a phased migration before full EtherCAT commissioning is completed.

Retrofit Guidance FAQ

Q: Can I reuse my existing W-Series motor cables?
A: No. The 1S Series uses a different connector format for both the encoder and power cables. OMRON-specified retrofit cables (R88A-CAKA and R88A-CAGA series) must be ordered. Attempting to adapt legacy cables risks encoder signal errors and may void the warranty.

Q: Will my existing CX-Motion programs run on the 1S Series driver?
A: CX-Motion is not compatible with the R88D-1SN EtherCAT driver. Motion programs must be migrated to Sysmac Studio. OMRON provides a parameter migration utility within Sysmac Studio to assist with axis configuration transfer from G5 and W-Series parameter files.

Q: Is the EtherCAT network topology flexible?
A: Yes. EtherCAT supports line, ring, and star topologies. The R88D-1SN10H-ECT has two RJ45 EtherCAT ports, allowing daisy-chain wiring across multiple axes without a managed switch, reducing cabinet wiring complexity compared to legacy MECHATROLINK-III installations.

Q: What is the physical installation space requirement?
A: The motor body length of the R88M-1M10030T-S2 is approximately 139mm (excluding shaft). Verify clearance at the rear of the motor for encoder cable routing. The paired R88D-1SN10H-ECT driver requires 55mm panel width and 150mm depth — confirm against your existing driver slot dimensions before ordering.

Q: Can the absolute encoder retain position after power loss?
A: Yes. The 23-bit multi-turn absolute encoder retains position data through a battery backup circuit on the driver. A CR2032 battery in the R88D-1SN driver maintains encoder position for up to 5 years without main power. This eliminates homing cycles after E-stop events or planned shutdowns.

Q: What communications protocols does the 1S Series support?
A: The R88D-1SN10H-ECT supports EtherCAT (CoE — CANopen over EtherCAT) as its primary protocol. It is not natively compatible with PROFIBUS, DeviceNet, or Modbus RTU without a gateway device. For mixed-protocol environments, an EtherCAT-to-PROFINET gateway may be required.

Warranty Assurance

Every OMRON R88M-1M10030T-S2 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes functional verification including encoder signal integrity check, insulation resistance test, and no-load run test at rated speed. Units that do not meet OMRON’s published performance specifications are quarantined and not shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund at the buyer’s discretion. Warranty claims are processed within 3 business days of receiving the returned unit and supporting documentation. Our after-sales team is reachable at [email protected] and responds to technical inquiries within 24 hours on business days.

Stock is maintained in our Xiamen warehouse, with standard dispatch within 1–3 business days for in-stock units. Express international shipping via DHL, FedEx, or UPS is available for urgent replacement requirements. A packing list, test report, and certificate of origin are included with every shipment to support customs clearance and incoming inspection at your facility.

For bulk procurement, long-term supply agreements, or project-based quotations covering multiple servo axes, contact our sales team directly for volume pricing and lead-time commitments.
