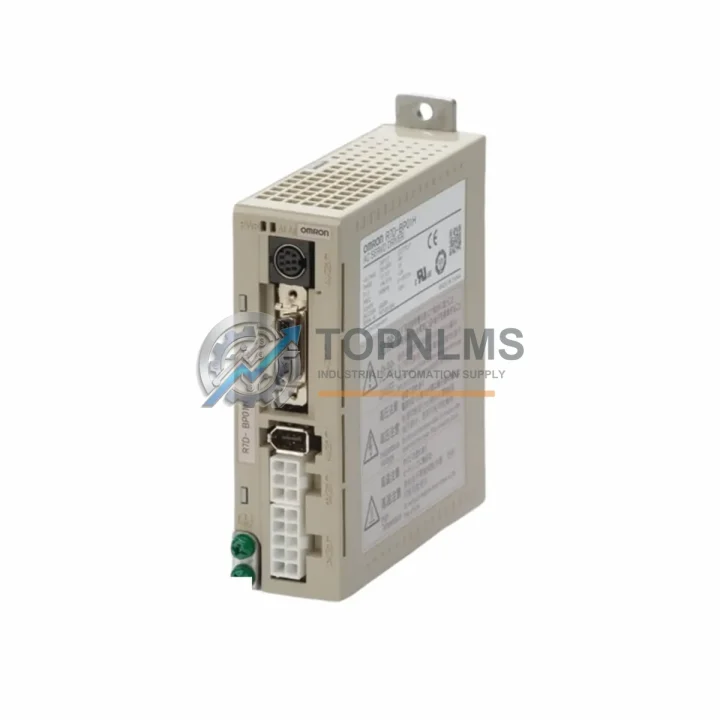

OMRON R7D-BP04H-Z Ruggedized AC Servo Drive for Harsh Environments

Product Overview

OMRON R7D-BP04H-Z Ruggedized AC Servo Drive: Industrial Resilience for Harsh Environments

The OMRON R7D-BP04H-Z is a 400W single-phase AC servo drive from OMRON’s proven SMARTSTEP 2 Series, engineered to deliver precise motion control under the most demanding industrial conditions. Designed for continuous operation in environments characterized by high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference, this servo drive is a cornerstone component for engineers who cannot afford downtime. Whether deployed on a high-speed packaging line, a precision CNC machining center, a semiconductor handling system, or a heavy-duty conveyor in a steel mill, the R7D-BP04H-Z maintains stable closed-loop servo performance where lesser drives fail.

At TOPNLMS, we stock the R7D-BP04H-Z as a verified genuine OMRON unit, pre-shipment tested, and backed by a 12-month quality warranty. Every unit undergoes functional verification before dispatch from our Xiamen facility, ensuring that what arrives on your production floor is ready to install — not a source of new problems.

Rugged Specifications Table

Comprehensive Protection Solutions

The R7D-BP04H-Z does not operate in isolation — it is the motion-control heart of a broader automation architecture. In a typical control cabinet deployment, this servo drive interfaces directly with an OMRON CJ2M-CPU31 PLC via high-speed pulse train output, enabling synchronized multi-axis positioning with sub-millisecond response. The CJ2M platform’s built-in noise immunity complements the R7D-BP04H-Z’s own EMI suppression circuitry, creating a system that remains stable even when large inductive loads — such as variable frequency drives controlling 3-phase motors — switch on and off nearby.

For installations requiring distributed I/O, the OMRON CJ1W-ID211 digital input module and CJ1W-OD211 digital output module extend the control reach of the servo system across the machine frame without signal degradation. When analog feedback from pressure transducers or load cells must be integrated, the OMRON CJ1W-AD041-V1 analog input module provides the precision conversion needed to close the loop on force-controlled servo applications.

Power quality is critical to servo drive longevity. Upstream of the R7D-BP04H-Z, a properly rated OMRON S8VK-series industrial power supply stabilizes the 24VDC control rail, protecting the drive’s logic circuits from voltage sags caused by heavy motor starts elsewhere on the line. Surge protection devices and EMC line filters — such as those in the OMRON FN2070 series — are recommended at the cabinet entry point to block conducted interference from reaching the servo drive’s sensitive encoder feedback circuits.

Safety integration is non-negotiable in modern industrial installations. The R7D-BP04H-Z supports external STO (Safe Torque Off) wiring compatible with OMRON G9SP safety controller architectures, enabling PLd/Cat.3 safety functions without additional relay logic. Paired with an OMRON G7SA safety relay module, the servo axis can be safely de-energized during guard-open conditions while the rest of the machine continues production — a critical capability in pharmaceutical filling lines and automotive assembly cells.

For communication-intensive applications, the OMRON CJ1W-SCU21-V1 serial communications unit enables RS-232C/RS-422A parameter monitoring and drive diagnostics from a supervisory SCADA system, while the OMRON NX-series EtherCAT coupler provides a pathway to integrate the servo axis into a fully synchronized EtherCAT motion network when upgrading legacy SMARTSTEP 2 installations to NJ/NX machine controller platforms.

Application in Critical Infrastructure

The OMRON R7D-BP04H-Z has earned its place in critical infrastructure across multiple heavy industries. In oil and gas processing facilities, it drives valve actuators and metering pump mechanisms where precise positioning directly affects flow measurement accuracy and process safety. The drive’s robust EMI filtering prevents spurious motion commands caused by the high-frequency switching noise endemic to variable-speed pump drives operating on the same power bus.

In coal and metal mining operations, the R7D-BP04H-Z controls conveyor indexing systems and ore-sampling mechanisms in environments where fine particulate contamination, mechanical shock from blasting, and wide temperature swings are daily realities. Its sealed connector design and conformal-coated PCB options (available on -Z suffix variants) provide additional protection against conductive dust ingress that would destroy a standard servo drive within weeks.

At power generation and electrical substation facilities, the drive is used in automated switchgear testing rigs and transformer tap-changer positioning systems, where repeatable angular accuracy and fail-safe behavior under power interruption are mandatory. The drive’s built-in dynamic braking resistor circuit ensures controlled deceleration even during emergency stop events, preventing mechanical damage to precision gearboxes.

In municipal water treatment and wastewater management plants, the R7D-BP04H-Z operates in high-humidity pump houses and chemical dosing stations, controlling peristaltic pump drives and filter backwash valve actuators. Its wide operating humidity range and corrosion-resistant terminal block design make it suitable for the chemically aggressive atmospheres found in chlorination and pH-adjustment systems.

Steel mills and aluminum smelters represent perhaps the harshest deployment environment for any servo drive. Radiated heat from furnaces, airborne metallic dust, and massive electromagnetic fields from arc furnaces create conditions that stress every component. The R7D-BP04H-Z’s thermal management design — with its optimized heat sink geometry and internal temperature monitoring — allows it to sustain rated output at ambient temperatures approaching its 55°C ceiling, making it a reliable choice for rolling mill edge-guide positioning and ladle transfer car control.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every OMRON R7D-BP04H-Z shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we arrange replacement or repair at no additional cost. Each unit is logged by serial number at dispatch, providing a clear audit trail for warranty claims. Contact [email protected] with your order reference and fault description to initiate a claim.

Q2: How is each unit tested before shipment?
All R7D-BP04H-Z units in our inventory undergo a pre-shipment functional check that includes power-on verification, parameter initialization confirmation, encoder feedback signal integrity test, and visual inspection for physical damage or counterfeit indicators. Units that do not pass this protocol are quarantined and not dispatched. We do not ship untested stock.

Q3: Is the R7D-BP04H-Z compatible with third-party servo motors and PLCs?
The R7D-BP04H-Z is optimized for use with OMRON R7M-A series servo motors and OMRON CJ/CS/NJ series PLCs. It accepts standard pulse-train position commands (pulse + direction or 90° phase difference), making it compatible with any PLC or motion controller capable of high-speed pulse output — including Siemens S7-1200/1500 with TO axis objects, Mitsubishi FX5U with positioning modules, and Keyence KV-8000 series. Parameter tuning may be required for non-OMRON motor pairings.

Q4: Can TOPNLMS guarantee long-term supply and cross-reference support for legacy SMARTSTEP 2 installations?
Yes. TOPNLMS maintains buffer stock of SMARTSTEP 2 series components specifically to support legacy machine maintenance programs. We can cross-reference the R7D-BP04H-Z against superseded OMRON part numbers and advise on compatible replacement options when original parts reach end-of-life. For large-volume or scheduled maintenance contracts, contact us to discuss reserved stock arrangements and priority dispatch agreements.
