OMRON CS1W-ADO41-V1 Replacement for CS1 Series PLC: Smooth Migration from Legacy Analog Output Systems

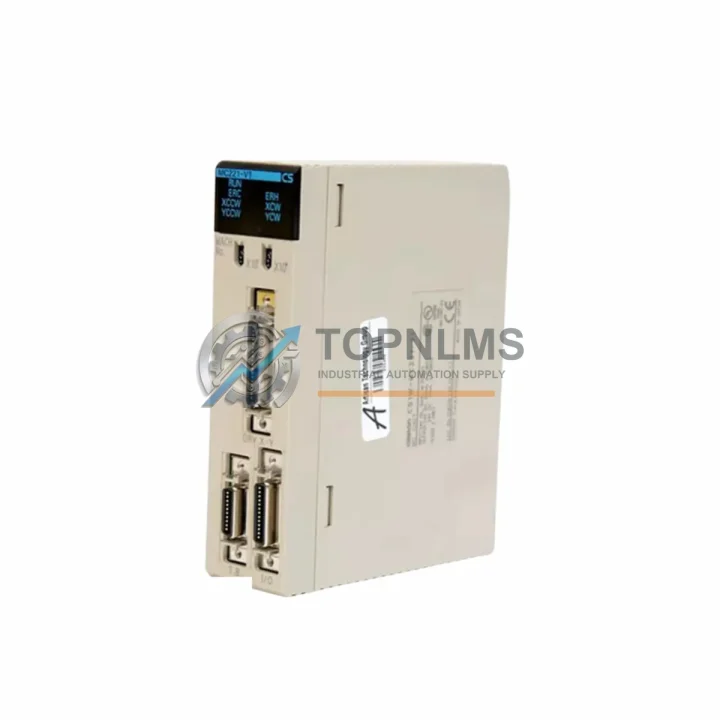

The OMRON CS1W-ADO41-V1 is a 4-channel analog output module designed for the CS1 Series programmable logic controller platform. As industrial facilities transition away from aging SYSMAC C200H, CQM1, and CV-series control architectures, the CS1W-ADO41-V1 serves as a proven, drop-in upgrade path that preserves existing wiring infrastructure, retains compatibility with CX-Programmer ladder logic, and integrates seamlessly into CS1-series backplane racks without requiring structural modifications to the control cabinet.

For plants currently operating legacy OMRON C200H-DA004 or C200H-DA003 analog output modules, the migration to CS1W-ADO41-V1 represents a significant reliability improvement. The module outputs four independent 4–20 mA or 0–10 V DC analog signals, making it directly applicable to valve positioners, variable frequency drives, proportional control loops, and process instrumentation in continuous manufacturing, water treatment, and energy management applications. The output resolution of 1/4000 (12-bit) ensures precision control that legacy 8-bit or 10-bit modules cannot match.

During a typical retrofit project, engineers replacing a C200H-series rack with a CS1-series backplane will find that the CS1W-ADO41-V1 occupies a single slot in the CS1W-BC023 or CS1W-BC103 CPU backplane or an expansion rack such as the CS1W-BI092. The module’s terminal block wiring layout follows OMRON’s standard analog output pinout convention, allowing field wiring from existing junction boxes to be reconnected with minimal re-labeling. In most cases, the 24 VDC bus power supplied by the CS1W-PA204 or CS1W-PA204S power supply unit is sufficient to support the analog output module alongside digital I/O modules such as the CS1W-OD212 or CS1W-ID212 in the same rack.

From a communications and programming perspective, the CS1W-ADO41-V1 is addressed through the CS1 CPU’s I/O memory map using standard CIO area word allocation. Engineers migrating from a C200H system will need to remap analog output channel addresses in their CX-Programmer project, but the function block structure and PID loop logic remain largely transferable. The CS1 CPU units — including the CS1G-CPU42H and CS1H-CPU67H — support online editing, which allows technicians to verify analog output scaling and loop tuning parameters during live commissioning without a full system shutdown.

For facilities that also operate OMRON CJ-series controllers in adjacent production lines, it is worth noting that the CJ1W-DA041 analog output module provides equivalent functionality within the CJ1/CJ2 platform. While the CS1W-ADO41-V1 and CJ1W-DA041 are not physically interchangeable due to backplane connector differences, their software configuration in CX-Programmer follows the same unit number assignment and I/O allocation methodology, simplifying multi-platform maintenance training.

In distributed control architectures where the CS1 CPU communicates with remote I/O racks over SYSMAC NET or Controller Link, the CS1W-ADO41-V1 can be installed in remote expansion racks connected via the CS1W-CLK21 Controller Link unit. This configuration is common in large-scale process plants where analog output signals must be generated close to field devices rather than routed over long cable runs from a central control room. The CS1W-SCU21-V1 serial communications unit can also be used in the same rack to maintain legacy RS-232C or RS-485 instrument connections during a phased migration.

Procurement teams evaluating replacement modules should note that TOPNLMS maintains verified stock of the CS1W-ADO41-V1 sourced from authorized distribution channels. Each unit undergoes functional output verification prior to shipment from our Xiamen warehouse. Standard delivery to mainland China destinations is 2–5 business days; international shipments to Southeast Asia, the Middle East, and Europe are dispatched within 24 hours of order confirmation. All modules are supplied with original OMRON packaging and documentation where available.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete CS1-series migration project typically involves more than a single analog output module. When replacing a C200H-series control panel, the CS1W-ADO41-V1 is most commonly deployed alongside the CS1W-AD041-V1 analog input module to maintain bidirectional process signal handling. Digital I/O requirements are addressed by the CS1W-OD212 transistor output module and CS1W-ID212 DC input module, which share the same backplane slot format and can be mixed freely within the same rack.

For applications requiring isolated analog signals — common in chemical processing and power generation environments — the CS1W-ADO41-V1 output channels can be paired with external DIN-rail-mounted signal isolators to prevent ground loop interference when connecting to third-party instrumentation. The CS1W-SCU21-V1 serial communications unit supports RS-232C and RS-485 connections to legacy HMI panels, flow computers, and weighing controllers that cannot be immediately replaced during a phased migration. Where Ethernet connectivity is required for SCADA integration, the CS1W-ETN21 Ethernet unit provides 100BASE-TX communication without occupying a CPU slot.

Power distribution within the upgraded control cabinet is typically handled by the CS1W-PA204 100–240 VAC power supply, which provides sufficient current capacity for a fully populated 10-slot backplane. For 24 VDC bus-powered installations, the CS1W-PD024 DC power supply is the appropriate selection. Programming and firmware updates are performed via the CS1W-CN226 USB-to-peripheral cable connecting a laptop running CX-Programmer to the CS1 CPU’s peripheral port, eliminating the need for legacy RS-232C programming adapters used with C200H systems.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring from my C200H-DA004 installation?
A: In most cases, yes. The CS1W-ADO41-V1 uses a screw terminal block with a compatible pinout for 4–20 mA and 0–10 V DC outputs. Verify wire gauge and shielding requirements against the CS1W-ADO41-V1 installation manual before reconnecting. Shield grounding should be reviewed to ensure compliance with CS1-series EMC guidelines.

Q: Do I need to rewrite my CX-Programmer ladder logic?
A: The core PID and analog output function blocks are compatible between C200H and CS1 platforms in CX-Programmer. However, the I/O memory word addresses assigned to the CS1W-ADO41-V1 will differ from the C200H-DA004 allocation. A systematic address remap is required, and TOPNLMS recommends performing this in a test environment using CX-Simulator before deploying to the live system.

Q: Is the CS1W-ADO41-V1 compatible with PROFIBUS or DeviceNet?
A: The CS1W-ADO41-V1 is a backplane-mounted module and communicates directly with the CS1 CPU via the internal I/O bus. It does not require a fieldbus connection. If your system uses CS1W-DRM21 DeviceNet master units or CS1W-PRM21 PROFIBUS-DP master units in the same rack, these operate independently and do not affect analog output module addressing.

Q: Will the CS1W-ADO41-V1 fit in my existing control cabinet?
A: The CS1-series backplane has a different physical form factor from the C200H-series. A panel modification or new DIN-rail mounting arrangement is typically required when replacing a C200H rack with a CS1 backplane. The CS1W-BC023 (3-slot) or CS1W-BC053 (5-slot) backplanes are compact options suitable for space-constrained cabinets.

Q: How long does commissioning typically take after installing the CS1W-ADO41-V1?
A: For a single-module replacement in an existing CS1 rack, commissioning — including address verification, output scaling confirmation, and loop test — typically requires 2–4 hours. For a full C200H-to-CS1 platform migration involving multiple I/O modules, allow 1–3 days depending on the number of analog loops and the complexity of the existing ladder program.

Q: What if the replacement module does not perform as expected after installation?
A: TOPNLMS provides a 12-month warranty on all CS1W-ADO41-V1 units. If a module exhibits output deviation, channel failure, or communication errors after installation, contact our technical support team at [email protected] with the unit serial number and fault description. Replacement dispatch is typically completed within 48 hours of fault confirmation.

Warranty Assurance

Every CS1W-ADO41-V1 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes a multi-point functional test that verifies analog output accuracy across all four channels at both 4–20 mA and 0–10 V DC ranges, confirms backplane connector integrity, and validates module identification via CX-Programmer unit recognition.

Should a warranty claim arise, TOPNLMS will dispatch a verified replacement unit within 48 hours of receiving the defective module and confirming the fault. Return shipping costs for warranty replacements are covered by TOPNLMS for orders within mainland China. International warranty claims are handled on a case-by-case basis with priority given to minimizing customer downtime.

Our procurement assurance package includes: original or equivalent-grade packaging, pre-shipment functional verification report available on request, full traceability documentation, and dedicated after-sales support via email and phone. For urgent replacement requirements — including unplanned shutdowns and emergency maintenance situations — TOPNLMS offers same-day dispatch for in-stock units when orders are confirmed before 15:00 CST.
