OMRON CPM2C-32EDTM Ruggedized Mixed I/O Expansion Module

Product Overview

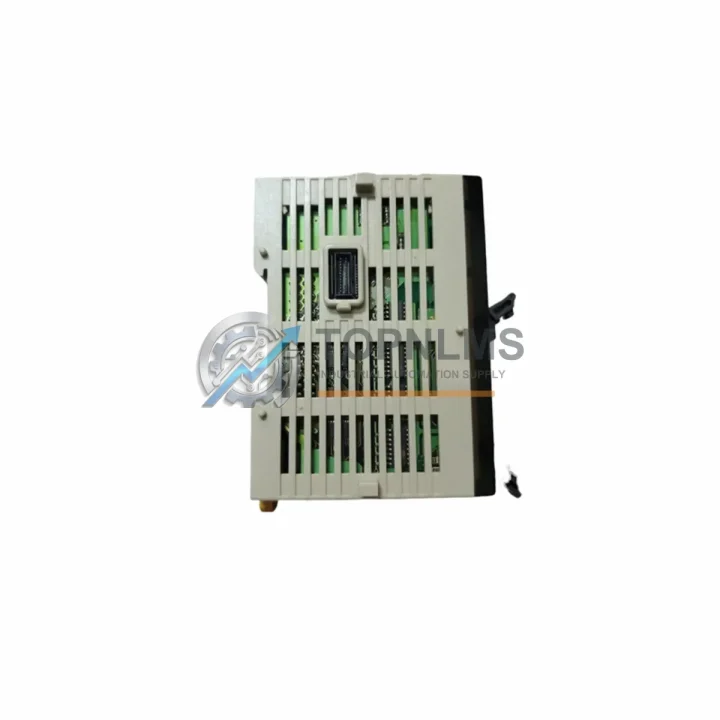

OMRON CPM2C-32EDTM Ruggedized Mixed I/O Expansion Module: Industrial Resilience for Harsh Environments

The OMRON CPM2C-32EDTM is a 32-point mixed I/O expansion unit engineered for the CPM2C series programmable logic controller platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process lines, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing floors — this module delivers the signal integrity and structural durability that mission-critical automation systems require. Whether deployed in a compact control cabinet or integrated into a distributed I/O architecture, the CPM2C-32EDTM maintains stable communication and precise I/O response under continuous production pressure.

Industrial facilities cannot afford unplanned downtime. The CPM2C-32EDTM addresses this reality with robust transistor output circuitry, reinforced terminal connections, and a compact DIN-rail-mountable form factor that simplifies both installation and field replacement. Its mixed I/O configuration — combining digital inputs and transistor outputs in a single unit — reduces panel wiring complexity while expanding the CPM2C CPU’s control reach across conveyors, actuators, sensors, and safety interlocks.

Rugged Specifications Table

Comprehensive Protection Solutions

The CPM2C-32EDTM does not operate in isolation — it is a core building block within a layered industrial control architecture. In a typical control cabinet deployment, the module connects directly to the OMRON CPM2C-10CDT-D or CPM2C-20CDTM-D CPU unit, extending the controller’s I/O capacity without requiring an additional power supply unit. For applications demanding higher I/O density, multiple CPM2C-32EDTM units can be daisy-chained, working alongside CPM2C-16ET output expansion units and CPM2C-16ED input-only modules to create a scalable, modular I/O bus.

In environments where electromagnetic interference from variable frequency drives (VFDs), servo amplifiers, or high-current motor starters poses a risk to signal integrity, the CPM2C-32EDTM’s noise-filtered input circuitry maintains reliable state detection. Pairing this module with OMRON G7SA safety relays or G9SA safety modules enables compliant safety interlock loops that meet IEC 62061 and ISO 13849 requirements for machinery safety. For power conditioning, the OMRON S8VS or S8VK series industrial power supplies provide stable 24 VDC rail power, protecting the entire I/O bus from voltage fluctuations common in heavy industrial environments.

Communication integrity is equally critical. When the CPM2C system requires network connectivity, the CPM2C-CIF11 RS-422A/485 adapter or CPM2C-CIF21 RS-232C adapter enables seamless integration with SCADA systems, HMI panels, and upstream DCS platforms. In facilities running OMRON CJ2M or CS1 series PLCs as master controllers, the CPM2C-32EDTM-equipped subsystem can serve as a remote I/O node, maintaining deterministic scan cycle performance even under heavy network load. Terminal block modules such as the XW2B series simplify field wiring to the expansion unit’s I/O terminals, reducing installation time and minimizing wiring errors in high-density panels.

Application in Critical Infrastructure

The CPM2C-32EDTM has proven its reliability across the most demanding sectors of critical infrastructure. In oil and gas processing facilities, the module controls valve actuators, pressure transmitter inputs, and emergency shutdown (ESD) interlock signals in areas where continuous uptime is non-negotiable. Its transistor output design eliminates the mechanical wear associated with relay-output modules, making it particularly well-suited for high-cycle applications such as solenoid valve control on gas injection skids.

In mining and mineral processing operations, where vibration from crushers, conveyors, and ball mills is constant, the CPM2C-32EDTM’s vibration-rated construction ensures that I/O signal states remain stable and that no spurious outputs are generated by mechanical shock. The module’s compact footprint allows it to be installed in space-constrained junction boxes close to the process, reducing cable runs and improving signal quality.

Water and wastewater treatment plants rely on the CPM2C-32EDTM to manage pump sequencing, level sensor inputs, and chemical dosing actuator outputs in high-humidity pump rooms and outdoor control kiosks. The module’s humidity tolerance and corrosion-resistant terminal design support long service intervals with minimal maintenance intervention.

In power generation and substation automation, the CPM2C-32EDTM integrates into protection relay panels and auxiliary control systems, where it monitors breaker status inputs and drives indicator outputs with the millisecond-level response times required for grid protection logic. Steel mills and metallurgical processing plants deploy this module in rolling mill control systems, where high ambient temperatures and intense electromagnetic fields from arc furnaces and induction heaters demand the highest levels of noise immunity and thermal stability.
