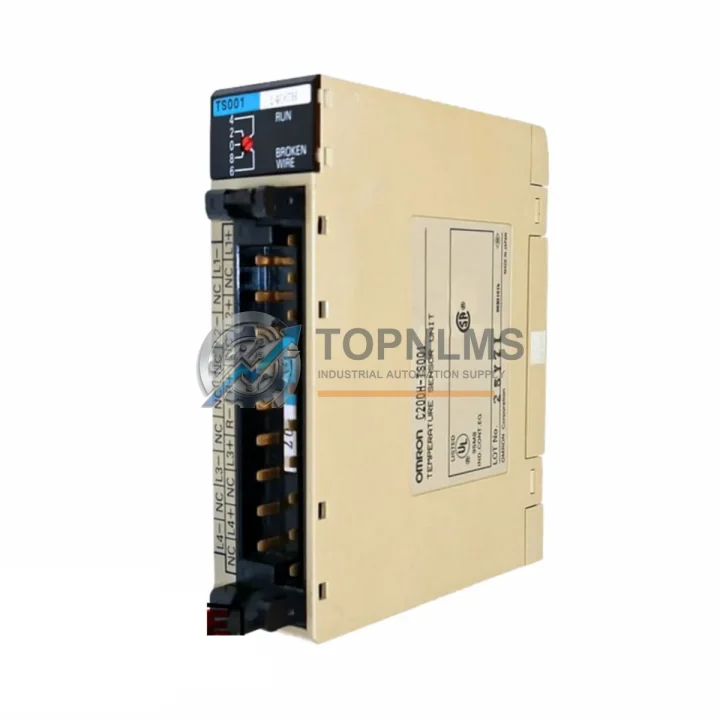

OMRON C200H-TS001 Original Industrial Spare C200H Compatible

Product Overview

OMRON C200H-TS001 Original Industrial Spare C200H Compatible: System Stability and Industrial Spare Parts Maintenance Value

The OMRON C200H-TS001 is an original thermocouple temperature input module engineered for the OMRON SYSMAC C200H programmable logic controller series — one of the most extensively deployed mid-range PLC platforms across process manufacturing, food processing, chemical plants, pharmaceutical production, and discrete automation environments worldwide. As original industrial spare parts for legacy PLC systems become increasingly difficult to source through standard distribution channels, maintaining a verified stock of the C200H-TS001 is a critical element of any plant maintenance strategy aimed at reducing unplanned downtime, extending the operational life of existing control infrastructure, and protecting capital investment in proven automation systems.

This module accepts thermocouple inputs and converts analog temperature signals into digital data readable by the C200H CPU unit. It is fully compatible with the C200H backplane and integrates directly into the existing I/O bus without requiring software reconfiguration when replacing a failed unit of the same model. For maintenance engineers managing aging SYSMAC C200H installations, the C200H-TS001 represents a direct, drop-in replacement that preserves program integrity, retains existing HMI tag mappings, and eliminates the need for costly system-wide upgrades or platform migrations.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for any C200H-based control system must account for the interdependencies between modules sharing the same backplane and power bus. When scheduling a planned shutdown to inspect or replace the C200H-TS001, maintenance teams should simultaneously audit adjacent components to maximize the value of each maintenance window and avoid repeat shutdowns within short intervals — a discipline that directly reduces total annual downtime and lowers the cost per maintenance event.

Begin with the backplane itself. The C200H-BC101 or C200H-BC051 backplane connector pins are subject to oxidation and mechanical wear in systems that have been in continuous operation for more than a decade. Slot contact resistance increases gradually and can cause intermittent module communication errors that are difficult to diagnose without physical inspection. During any temperature module replacement, visually inspect all backplane slots and clean connector surfaces as part of the standard procedure.

Alongside the C200H-TS001, inspect the C200H-AD003 analog input module if the system also handles pressure, flow, or level signals on the same rack. Both modules share the I/O bus, and a degraded bus can cause intermittent read errors across all analog channels simultaneously — a failure mode that is frequently misattributed to individual module faults rather than the shared infrastructure. Replacing or reseating the analog input module during the same maintenance window eliminates this diagnostic ambiguity.

The C200H-PS221 or C200H-PS211 power supply module should be tested under load during the same maintenance cycle. A power supply operating near the end of its service life produces voltage ripple that manifests as erratic temperature readings — a symptom that closely mimics a failing C200H-TS001. Replacing the power supply and the temperature input module together during a single planned shutdown is more cost-effective than two separate emergency interventions triggered by misdiagnosis.

For systems using thermocouple extension cables routed through cable trays or conduit, inspect the C200H-TS001’s terminal block connections for cold junction compensation drift caused by ambient temperature fluctuations near the control cabinet. In electrically noisy environments — particularly where the C200H-DA001 analog output module is used to command variable frequency drives — installing signal isolators between the thermocouple field wiring and the module input terminals significantly improves measurement stability and reduces nuisance alarms.

If the C200H system communicates with an upstream SCADA or DCS via the C200H-LK201 or C200H-LK401 host link communication module, verify that baud rate settings and communication parameters remain intact after any backplane maintenance. Communication module failures are frequently triggered by improper power cycling during module replacement. Confirming communication integrity after every maintenance event prevents silent data loss that may not be detected until the next production batch review.

For facilities maintaining multiple C200H racks, consider stocking the C200H-TS002 (the 8-channel thermocouple input variant) alongside the C200H-TS001 as part of a consolidated spare parts inventory. Having both variants on hand ensures coverage across all rack configurations without requiring emergency procurement during off-hours or holiday shutdowns. Additionally, maintaining a spare C200H-CPU11 or C200H-CPU21 CPU module as a cold standby provides a complete recovery path for the most critical failure scenario — CPU failure — which cannot be resolved by module-level replacement alone.

Strategic Replacement Solutions

The C200H-TS001 is a discontinued product in OMRON’s current manufacturing catalog, meaning new units are no longer produced through standard OEM channels. However, the installed base of SYSMAC C200H systems globally remains substantial, and many facilities continue to operate these controllers well beyond their original design life due to the high capital cost and operational risk associated with full PLC platform migrations. For these facilities, sourcing original spare C200H-TS001 modules from verified industrial distributors is the most operationally sound and cost-effective strategy available.

A genuine original replacement module installs directly into the existing backplane slot, requires no wiring changes, and is immediately recognized by the C200H CPU without any program modification — preserving the existing ladder logic, data memory word addresses, and HMI tag mappings without interruption to production. This zero-reconfiguration replacement characteristic is the primary reason maintenance engineers and plant managers continue to prioritize original spare procurement over platform migration for systems with remaining operational life.

For facilities considering a phased migration toward the OMRON CJ2M or CS1 series, the C200H-TS001 can continue to serve as the primary temperature input solution during the transition period. The CJ1W-TS561 or CJ1W-TS562 modules offer equivalent thermocouple input functionality on the newer CJ-series platform and can be evaluated in parallel on a secondary rack before the full cutover, minimizing production risk during the migration window. This phased approach allows engineering teams to validate new platform behavior against existing process data before committing to a full system changeover.

All C200H-TS001 units supplied by TOPNLMS are sourced from verified industrial channels, individually tested for channel accuracy and bus communication integrity prior to shipment, and dispatched with full documentation. Standard lead time is 3–7 business days for in-stock units, with express DHL or FedEx options available for urgent maintenance requirements. Each unit is covered by a 12-month warranty from the date of shipment, with priority replacement support in the event of a warranty claim to minimize system downtime.

Support FAQ

Q1: Is the C200H-TS001 still in production, and can I obtain a genuine original unit?
The C200H-TS001 has been discontinued by OMRON. However, genuine original units remain available through specialized industrial spare parts distributors. TOPNLMS sources C200H-TS001 modules from verified industrial channels and performs pre-shipment functional testing on each unit — including channel accuracy verification and backplane bus communication confirmation — before dispatch. Units are supplied with documentation and a 12-month warranty.

Q2: Will the C200H-TS001 install and operate in my existing C200H rack without program changes?
Yes. The C200H-TS001 is a direct slot-compatible replacement for any existing C200H-TS001 installation. It occupies the same backplane slot, uses the same I/O bus word addressing, and is recognized by the C200H CPU without requiring any modification to the existing ladder program, data memory configuration, or HMI tag assignments. Power down the rack, replace the module, restore power, and resume operation — no engineering intervention required.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
All C200H-TS001 units supplied by TOPNLMS carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing prior to dispatch. In the event of a warranty claim, TOPNLMS provides priority replacement processing to minimize system downtime. Contact [email protected] with your order reference and a description of the failure to initiate a claim.

Q4: How should I structure C200H-TS001 spare parts inventory for a multi-rack installation?
For facilities operating three or more C200H racks with temperature input requirements, a minimum of one spare C200H-TS001 per four installed units is recommended as a baseline inventory buffer. For critical process lines where temperature monitoring is safety-relevant or directly tied to product quality, a one-to-one hot spare ratio is advisable. Consolidated procurement of multiple units reduces per-unit cost, simplifies customs documentation for cross-border shipments, and ensures availability during peak maintenance seasons or periods of extended supplier lead time.
