nVent RAYCHEM EMDR-10 Original Industrial Spare EMDR Compatible

Product Overview

nVent RAYCHEM EMDR-10 Original Industrial Spare: System Stability & Heat Tracing Maintenance Value

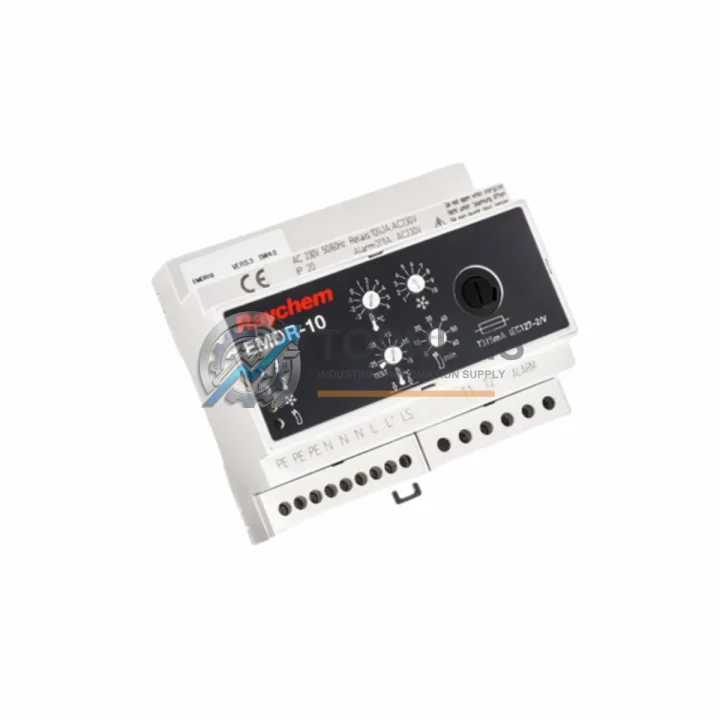

The nVent RAYCHEM EMDR-10 is a single-circuit electronic heat tracing controller from the trusted EMDR Series, engineered for precise temperature management in industrial pipelines, freeze protection systems, and process temperature maintenance applications. For maintenance engineers managing aging heat tracing infrastructure, securing a genuine EMDR-10 spare is one of the most cost-effective decisions in a preventive maintenance program. Unplanned downtime caused by a failed heat tracing controller can cascade into frozen pipelines, process shutdowns, and costly emergency repairs — all of which are avoidable with a properly stocked spare parts inventory.

At TOPNLMS, every EMDR-10 unit is sourced as an original component, individually tested prior to shipment, and backed by a 12-month warranty. Whether you are replacing a failed unit during a scheduled turnaround or building a buffer stock for a multi-circuit heat tracing system, the EMDR-10 delivers the reliability and compatibility your facility demands.

Critical Technical Specs

Preventive Maintenance Strategy

A heat tracing controller failure rarely occurs in isolation. When the EMDR-10 is flagged during a routine inspection or trips during a cold-weather event, experienced maintenance teams know to treat it as a signal to audit the entire heat tracing circuit and associated electrical infrastructure. A comprehensive inspection should include the RAYCHEM RTD temperature sensor connected to the controller — sensor drift or open-circuit faults are a common root cause of nuisance trips that are misdiagnosed as controller failure.

The power distribution feeding the EMDR-10 should also be verified. Check the circuit breaker or RAYCHEM HWAT-ECO power distribution unit upstream of the controller, and inspect the terminal blocks and DIN rail bus bars within the heat tracing panel for signs of overheating, loose connections, or corrosion. Loose terminations at the load side are a leading cause of intermittent faults in heat tracing systems operating in outdoor or high-humidity environments.

For facilities running multiple heat tracing circuits, it is strongly recommended to maintain a parallel stock of the RAYCHEM EMDR-20 (two-circuit variant) alongside the EMDR-10, as both share similar installation footprints and are commonly deployed in the same control panels. If your facility uses ground fault protection, verify the integrity of the RAYCHEM GFEP ground fault equipment protection module — these devices are often mounted adjacent to the EMDR controller and are subject to the same environmental stresses.

During scheduled turnarounds, maintenance planners should also inspect the self-regulating heating cable end seals and splice kits (such as RAYCHEM HTSX or XTV series accessories), as degraded end seals allow moisture ingress that increases cable resistance and places abnormal load on the controller. Pairing an EMDR-10 replacement with fresh end seals and a RAYCHEM power connection kit ensures the entire circuit is restored to factory specification.

For facilities with SCADA or BMS integration, consider auditing the RAYCHEM NGC-40 or NGC-UIT network controller that may be supervising multiple EMDR units. A single NGC controller failure can mask individual circuit alarms, making local EMDR-10 spares even more critical for manual override capability during network controller maintenance windows. Additionally, inspect the panel-mounted surge protection devices (SPDs) and 24 VDC auxiliary power supplies that power monitoring circuits — these low-cost components are frequently overlooked but are essential for alarm circuit integrity.

Strategic Replacement Solutions

The EMDR-10 is a direct replacement for legacy RAYCHEM single-circuit controllers used in freeze protection panels installed over the past two decades. Many facilities still operate original RAYCHEM 920 Series or earlier electronic controllers that are no longer supported under active manufacturer service agreements. The EMDR-10 provides a fully compatible upgrade path: it accepts the same RTD sensor wiring, fits standard DIN rail mounting, and operates across the same supply voltage range, allowing maintenance teams to execute a like-for-like swap without panel redesign or re-engineering costs.

For sites undergoing partial modernization, the EMDR-10 can be integrated into existing RAYCHEM heat tracing panels alongside newer NGC network controllers, providing a cost-effective hybrid architecture that extends the operational life of legacy infrastructure while introducing modern alarm and monitoring capabilities. This approach significantly reduces capital expenditure compared to full panel replacement while achieving the system reliability targets required by process safety management (PSM) programs.

Stocking the EMDR-10 as a critical spare reduces mean time to repair (MTTR) for heat tracing circuit failures from days (procurement lead time) to hours (shelf-to-panel swap). For facilities in cold climates where heat tracing is a life-safety system protecting water lines, instrument impulse lines, or process pipes from freezing, this reduction in MTTR directly translates to reduced risk of catastrophic process upsets.

Support FAQ

Q1: Is the EMDR-10 compatible with all RAYCHEM self-regulating heating cables?
Yes. The EMDR-10 is designed to control RAYCHEM self-regulating cables (XTV, BTV, QTVR series) and constant wattage cables within its rated load current of 30 A. Always verify the total circuit load current against the controller rating before installation. If your circuit load exceeds 30 A, consider the EMDR-20 or a dedicated power contactor solution.

Q2: How is the EMDR-10 tested before shipment?
Every unit dispatched from TOPNLMS undergoes functional verification including power-on self-test, relay output actuation, and sensor input continuity check. Units that fail any test parameter are quarantined and not shipped. A test record is available upon request for quality-critical procurement.

Q3: What is the recommended spare parts holding strategy for EMDR-10?
For facilities with 1–5 EMDR-10 units installed, we recommend holding a minimum of one spare unit on-site. For facilities with 6 or more units, a 10–15% spare ratio is standard practice under most reliability-centered maintenance (RCM) frameworks. Given the EMDR-10’s role in freeze protection, spare holding is especially critical for facilities in regions with seasonal cold weather risk.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical damage in transit (transit damage must be reported within 48 hours of receipt). Warranty claims are processed via email to [email protected] with photographic evidence and order reference.
