NTN K-ECA46 Replacement Solution for ECA Series

Product Overview

NTN K-ECA46 Replacement Solution for ECA Series: Smooth Transition from Legacy Vibratory Feeder Controllers

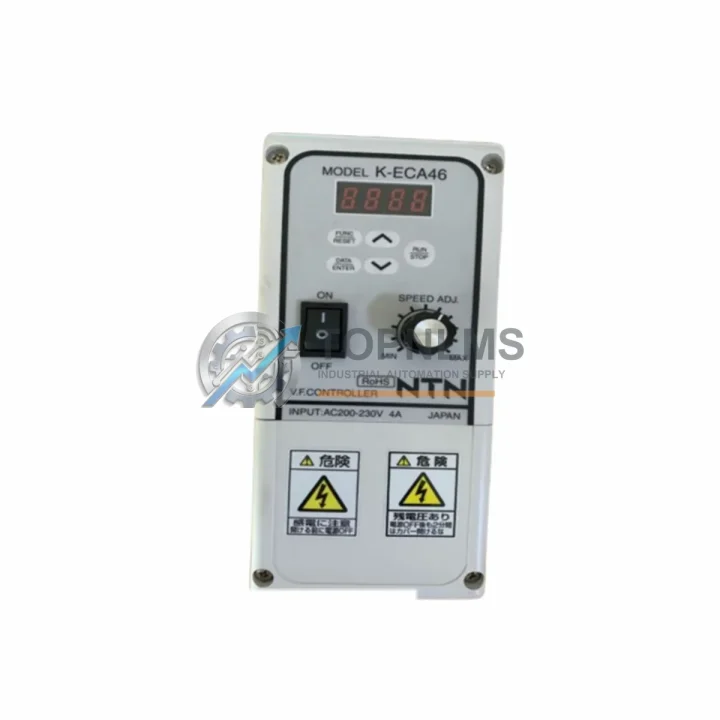

When your production line depends on a vibratory bowl feeder system and the original NTN K-ECA46 controller reaches end-of-life or becomes unavailable, every hour of unplanned downtime translates directly into lost output and escalating maintenance costs. The NTN K-ECA46 is a dedicated frequency controller from NTN’s ECA Series, engineered to drive electromagnetic vibratory feeders with precise amplitude and frequency regulation. This replacement and upgrade solution is designed to restore your system to full operational status with minimal disruption — preserving your existing wiring topology, control cabinet layout, and feeder tuning parameters wherever possible.

Whether you are managing a single-station assembly line or a multi-track parts feeding system, the transition from a failed or obsolete K-ECA46 to a verified replacement unit follows a structured retrofit path. Our team has sourced, tested, and dispatched K-ECA46 units and compatible ECA Series controllers to facilities across automotive, electronics, pharmaceutical, and precision hardware manufacturing sectors. The goal is always the same: restore feeder rhythm, protect tooling, and get the line running again — fast.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful K-ECA46 retrofit rarely involves the controller alone. In practice, the replacement process touches several adjacent components within the feeder station and control cabinet. When the K-ECA46 is removed, technicians commonly inspect and replace the NTN ECA Series electromagnetic coil assembly if coil resistance has drifted out of specification — a common cause of erratic feeding rates that is often misdiagnosed as a controller fault. Similarly, the NTN bowl feeder base unit and its spring leaf set should be checked for fatigue, as worn springs alter the resonant frequency and can cause the replacement controller to operate outside its optimal tuning range.

On the power supply side, the control cabinet feeding the K-ECA46 typically includes a single-phase isolation transformer or a dedicated DIN rail power supply module that conditions the incoming mains voltage. If the original transformer shows signs of overheating or voltage sag under load, replacing it in parallel with the K-ECA46 controller prevents the new unit from being exposed to the same stress conditions that degraded the original. A surge protection device (SPD) installed at the cabinet entry point is a low-cost addition that significantly extends controller service life in environments with unstable grid power.

For multi-track feeding systems where several bowl feeders operate from a shared control panel, the NTN K-ECA series multi-channel controller rack or individual ECA46-compatible channel modules allow centralized amplitude and frequency adjustment across all tracks simultaneously. This is particularly valuable during changeover when part geometry changes require retuning the entire feeding system. Integrating a programmable timer relay module into the cabinet allows the feeder to be synchronized with upstream and downstream automation equipment — conveyors, pick-and-place units, or assembly robots — without requiring a full PLC integration.

Where the feeder station interfaces with a broader automation cell, a compact I/O terminal block module provides the signal conditioning layer between the K-ECA46’s on/off control input and the PLC digital output card. If the existing HMI panel on the line is used to display feeder status or trigger feed cycles, the signal wiring from the replacement K-ECA46 to the HMI input terminals follows the same convention as the original unit, requiring no software changes on the HMI side. Finally, a vibration isolation pad set placed beneath the bowl feeder base is recommended whenever the controller is replaced, as it recalibrates the mechanical baseline and ensures the new controller’s amplitude settings correspond accurately to actual part movement.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring when replacing the K-ECA46?
A: Yes. The replacement K-ECA46 uses the same terminal block layout (L, N, GND, and feeder output terminals). In most installations, the existing cable lengths and lug crimps can be reused directly. Verify terminal torque specifications after reconnection.

Q: Do I need to reprogram anything after installing the replacement unit?
A: No software or PLC programming changes are required. The K-ECA46 is a standalone analog controller. Amplitude and frequency are set via the front-panel potentiometer. Record the original dial positions before removal so the replacement can be tuned to the same baseline settings immediately after installation.

Q: Is the replacement unit compatible with both 50 Hz and 60 Hz feeder coils?
A: Yes. The ECA Series controller supports both 50 Hz and 60 Hz operation via a selector switch. Confirm the coil frequency rating on the bowl feeder nameplate and set the controller accordingly before powering on.

Q: How much physical space does the replacement unit require in the control cabinet?
A: The replacement K-ECA46 matches the original unit’s DIN rail footprint. No cabinet modifications, additional DIN rail sections, or cable duct rerouting are required for a standard swap.

Q: What should I check if the feeder runs but parts are not feeding correctly after replacement?
A: First, verify the amplitude potentiometer is set to the recorded baseline position. Then check the spring leaf set for fatigue and the coil air gap for correct clearance. If the feeder was previously running at an abnormal amplitude to compensate for worn springs, the new controller will expose that underlying mechanical issue.

Q: Can the K-ECA46 be integrated with a PLC for remote on/off control?
A: The K-ECA46 includes a control input terminal that accepts a dry contact or open-collector signal from a PLC digital output. No special communication protocol or fieldbus configuration is required — standard 24 V DC or relay contact wiring is sufficient.

Warranty Assurance

Every NTN K-ECA46 replacement unit dispatched from TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional output test verifying frequency stability, amplitude control linearity, and terminal integrity. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the fault assessment. Customers are not required to return the defective unit before a replacement is dispatched in confirmed DOA (dead-on-arrival) cases, subject to photographic evidence of the fault condition. For units that develop faults within the warranty period during normal operation, return shipping is coordinated by TOPNLMS and the replacement is dispatched within 3–5 business days of fault confirmation.

Stock is maintained in Xiamen, China, with express shipping options available to most destinations in Asia, Europe, and the Americas. Lead time for in-stock units is typically 1–3 business days for dispatch. Customers requiring urgent replacement are encouraged to contact the sales team directly to confirm stock availability and arrange priority dispatch.

For procurement teams managing approved vendor lists or requiring test reports, certificates of conformance, or packing list documentation, these are available upon request at the time of order. Bulk orders for MRO stock programs are accommodated with volume pricing and scheduled delivery options.
