MOXA IM-2MSC/2TX Ruggedized Fiber Copper Module for Harsh Environments

Product Overview

MOXA IM-2MSC/2TX Ruggedized Fiber Copper Combo Module: Industrial Resilience for Harsh Environments

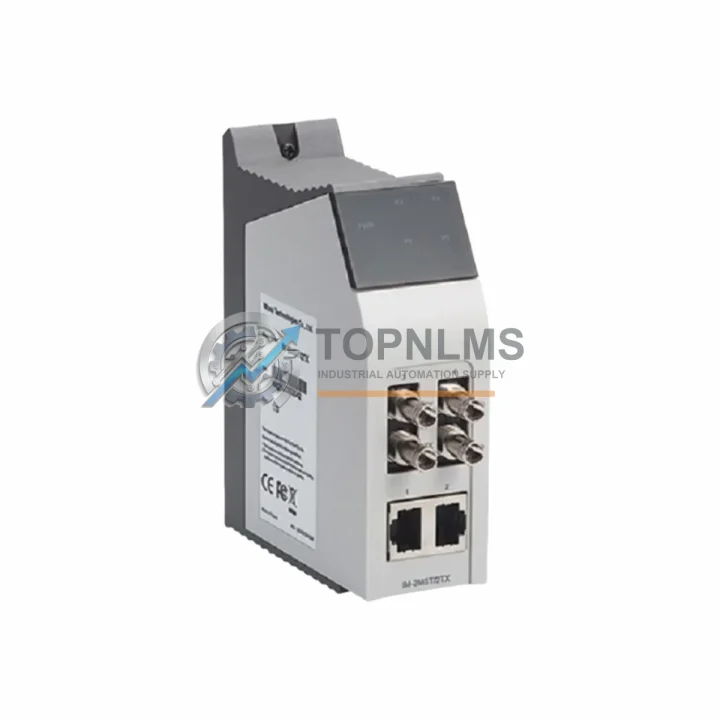

The MOXA IM-2MSC/2TX is a ruggedized fiber-copper combo expansion module engineered for deployment in the most demanding industrial environments. Designed specifically for MOXA’s EDS modular managed switch platform, this module delivers reliable, high-speed network connectivity where standard commercial-grade hardware simply cannot survive — including high-temperature substations, dust-laden mining galleries, vibration-intensive manufacturing floors, and electromagnetically noisy heavy industrial sites.

Built to MOXA’s industrial-grade standards, the IM-2MSC/2TX provides two 100Base-FX multi-mode SC fiber ports alongside two 10/100Base-TX copper ports, enabling seamless fiber-to-copper media conversion within a single expansion slot. This hybrid architecture is critical for control engineers who must bridge long-distance fiber backbone runs with local copper-based field devices — all within a single, compact, DIN-rail-mounted control cabinet.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated industrial control architecture, the IM-2MSC/2TX does not operate in isolation — it is the network backbone that ties together an entire ecosystem of safety-critical and process-critical devices. When deployed inside a control cabinet alongside a MOXA EDS-728 modular managed switch chassis, this module enables the switch to simultaneously serve fiber-connected remote I/O panels and copper-connected local PLCs without any media converter appliances in between, dramatically reducing single points of failure.

In process automation environments, the module frequently operates in conjunction with Siemens S7-300 or S7-400 PLC systems communicating over PROFINET, where the fiber uplink provides galvanic isolation between the PLC control network and the field device layer — a critical protection measure in environments with significant ground potential differences, such as arc furnace control rooms or high-voltage switchgear buildings. Similarly, when paired with Rockwell Automation Allen-Bradley ControlLogix controllers running EtherNet/IP, the IM-2MSC/2TX’s fiber ports provide the electrical isolation needed to protect sensitive CPU backplane components from transient surges induced by nearby variable frequency drives (VFDs) and motor starters.

The module is equally at home in DCS architectures. Engineers deploying Honeywell Experion PKS or ABB System 800xA distributed control systems in oil refinery or chemical plant environments routinely specify fiber-copper combo modules like the IM-2MSC/2TX to segment their process control networks from safety instrumented system (SIS) networks, maintaining the required network independence mandated by IEC 61511. In these installations, the module works alongside MOXA NPort 5000 series serial device servers and MOXA MGate MB3000 Modbus gateways to integrate legacy serial field instruments into the modern Ethernet-based control backbone.

For power utility and substation automation applications, the IM-2MSC/2TX is frequently specified alongside MOXA PT-7528 IEC 61850-3 managed switches and MOXA EDS-G509 Gigabit switches to form a redundant ring topology using MOXA’s Turbo Ring or IEC 62439-3 PRP/HSR protocols. The module’s wide operating temperature range and IEC 61000-4 EMC compliance make it suitable for installation in outdoor substation relay panels where temperature swings from -40°C winter lows to +70°C summer highs are routine. In these environments, the fiber ports provide the optical isolation that protects IED (Intelligent Electronic Device) communications from the intense electromagnetic fields generated by high-voltage bus bars and current transformers.

Application in Critical Infrastructure

Oil & Gas: Offshore platforms and onshore processing facilities demand network components that can withstand salt-laden humid air, explosive atmospheres (Zone 2 classified areas), and continuous mechanical vibration from pumps and compressors. The IM-2MSC/2TX’s sealed construction and wide-temperature fiber ports make it a preferred choice for SCADA network infrastructure in these environments, where unplanned network downtime can trigger emergency shutdowns costing hundreds of thousands of dollars per hour.

Mining & Minerals Processing: Underground coal mines and open-pit copper operations generate extreme levels of airborne particulate, ground vibration, and electromagnetic interference from large electric shovels and conveyor drives. The IM-2MSC/2TX’s IP30-rated housing and IEC 60068-2-6 vibration compliance ensure reliable operation in these conditions, supporting real-time communication between surface control rooms and underground PLCs managing ventilation, dewatering, and conveyor systems.

Electric Power Generation & Transmission: In thermal power plants and hydroelectric stations, the IM-2MSC/2TX supports IEC 61850 GOOSE messaging between protection relays and bay controllers, where sub-millisecond latency and zero packet loss are non-negotiable. The module’s fiber ports eliminate ground loop interference between generator protection panels and the plant-wide DCS, a common source of nuisance trips in older copper-based installations.

Water & Wastewater Treatment: Municipal water treatment facilities and industrial effluent plants operate in high-humidity, chemically aggressive environments where copper-based network infrastructure corrodes rapidly. The IM-2MSC/2TX’s fiber ports are immune to the corrosive chlorine and hydrogen sulfide atmospheres common in these facilities, providing a maintenance-free network backbone for SCADA systems monitoring pump stations, chemical dosing systems, and clarifier drives.

Steel & Metallurgy: Rolling mills and electric arc furnace (EAF) shops generate some of the most severe electromagnetic environments in industry. The IM-2MSC/2TX’s IEC 61000-4-5 surge immunity and fiber optical isolation protect the control network from the massive current transients generated during furnace tap-to-tap cycles, ensuring uninterrupted communication between the Level 2 process optimization system and the Level 1 PLC/drive control layer.
