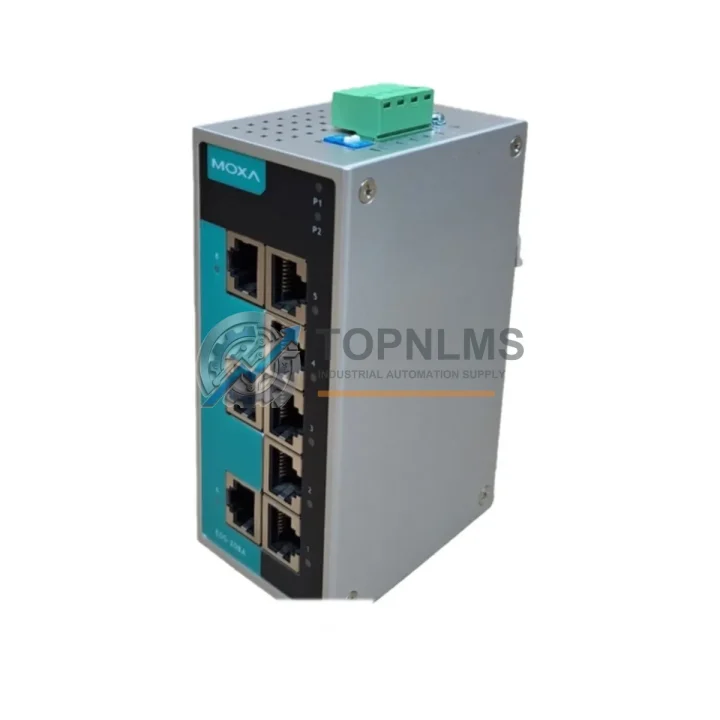

Moxa EDS-208A Ruggedized Unmanaged Ethernet Switch

Product Overview

Moxa EDS-208A Ruggedized Unmanaged Ethernet Switch: Industrial Resilience for Harsh Environments

The Moxa EDS-208A is an 8-port unmanaged industrial Ethernet switch engineered for continuous, fault-tolerant operation in the most demanding automation environments. Designed as part of Moxa’s proven EDS Series, this switch delivers reliable 10/100BaseT(X) connectivity across eight ports, supporting the high-availability communication backbones required in process control, discrete manufacturing, and critical infrastructure applications. Whether deployed in a DIN-rail-mounted control cabinet on a steel mill floor or integrated into a distributed PLC network in a water treatment facility, the EDS-208A maintains stable data throughput under conditions that would compromise commercial-grade networking hardware.

Industrial automation systems depend on uninterrupted communication between field devices and control layers. The EDS-208A serves as the network backbone that connects Moxa NPort serial device servers, Siemens SIMATIC S7-series PLCs, Rockwell Allen-Bradley ControlLogix I/O modules, and Schneider Electric Modicon distributed I/O racks into a coherent, low-latency Ethernet fabric. Its plug-and-play, unmanaged architecture eliminates configuration overhead, making it the preferred choice for field engineers who need rapid deployment without sacrificing reliability.

Rugged Specifications Table

Comprehensive Protection Solutions

In high-stakes industrial environments, the EDS-208A does not operate in isolation — it is a critical node within a layered protection and control architecture. When integrated alongside a Moxa EDS-316 managed switch at the supervisory layer, the EDS-208A handles field-level device aggregation while the EDS-316 enforces VLAN segmentation and SNMP monitoring for the broader plant network. For applications requiring fiber uplinks to overcome electromagnetic interference in high-voltage switchgear rooms, the Moxa EDS-208A-MM-SC variant with multi-mode fiber ports provides galvanic isolation between copper and fiber segments, protecting sensitive PLC backplanes from ground loop currents.

Within the control cabinet, the EDS-208A typically shares DIN-rail space with Phoenix Contact QUINT-series 24 VDC power supplies, which provide the stable, low-ripple DC power essential for switch longevity in continuous-duty applications. Redundant power feed from a secondary Weidmüller PRO MAX power supply ensures the switch remains online even during primary supply failures. Upstream, Siemens SCALANCE X-series industrial switches or Hirschmann RS20 managed switches handle ring topology redundancy (MRP/RSTP), while the EDS-208A serves as the access-layer aggregator for field instruments, Omron CJ2M PLC remote I/O adapters, and Mitsubishi MELSEC iQ-R series Ethernet modules.

Safety-critical zones benefit from pairing the EDS-208A with Pilz PNOZmulti 2 safety controllers and Sick safety I/O modules that communicate over standard Ethernet, relying on the switch’s deterministic forwarding to maintain safety function response times within SIL 2 system requirements. For serial legacy devices still present on the plant floor, a Moxa NPort 5150A serial device server bridges RS-232/RS-485 instruments into the EDS-208A’s Ethernet fabric without requiring PLC program changes.

Application in Critical Infrastructure

The Moxa EDS-208A has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream facilities, it connects SCADA RTUs, flow computers, and emergency shutdown (ESD) panels within Class I Division 2 / Zone 2 classified areas when housed in appropriate purged enclosures, maintaining communication integrity despite the presence of flammable vapors, extreme temperature swings, and high-frequency vibration from compressor trains.

In mining operations, the EDS-208A is deployed in conveyor control panels, crusher automation cabinets, and ventilation monitoring systems where coal dust, silica particulate, and mechanical shock from blasting operations create a hostile environment for standard networking hardware. Its IEC 60068-2-6 vibration compliance and wide operating temperature range make it suitable for both surface and underground installations.

Municipal and industrial water treatment plants rely on the EDS-208A to network chlorination dosing controllers, pump VFDs (variable frequency drives), and SCADA historian nodes across facilities where high ambient humidity, chemical vapors, and 24/7 continuous operation demand hardware with proven MTBF figures exceeding 500,000 hours. Similarly, in power generation and transmission substations, the switch supports IEC 61850 GOOSE message transport between protection relays and bay controllers, where sub-millisecond latency and EMI immunity to switching transients are non-negotiable.

Steel and metallurgical plants present perhaps the harshest combination of thermal radiation, electromagnetic interference from arc furnaces, and mechanical vibration from rolling mills. The EDS-208A’s fanless, convection-cooled design eliminates the single most common failure point in industrial networking hardware — the cooling fan — ensuring uninterrupted operation across multi-year production campaigns without scheduled maintenance.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions as specified in the product datasheet. Upon receiving a warranty claim, our technical team conducts a remote diagnostic assessment within 24 business hours. Confirmed defective units are replaced with tested, equivalent units shipped from our Xiamen warehouse. Replacement lead time is typically 3–5 business days for standard destinations. Warranty claims are initiated by contacting [email protected] with the order reference and a description of the fault.

Q2: How is each unit tested before shipment?
Every EDS-208A unit undergoes a pre-shipment functional verification protocol that includes power-on self-test, all-port link negotiation at 10/100 Mbps, traffic forwarding throughput verification, and visual inspection for physical damage. Units that fail any test stage are quarantined and not shipped. A test report is available upon request for customers with incoming inspection requirements.

Q3: Is the EDS-208A compatible with my existing PLC or DCS system?
Yes. As an unmanaged Layer 2 switch, the EDS-208A is protocol-transparent and compatible with all standard industrial Ethernet protocols including Modbus TCP, EtherNet/IP, PROFINET, IEC 61850, and DNP3 over TCP/IP. It has been validated in systems from Siemens, Rockwell Automation, Schneider Electric, Omron, Mitsubishi Electric, ABB, and Honeywell. No configuration is required — connect power and Ethernet cables and the switch operates immediately.

Q4: Can you guarantee long-term supply and provide replacement support for aging control systems?
We maintain dedicated stock of the EDS-208A and key EDS Series variants to support long-lifecycle industrial control systems where hardware obsolescence poses operational risk. For customers managing aging DCS or PLC infrastructure, we offer multi-unit reserve purchasing and priority allocation agreements. Our technical team can also advise on compatible replacement options within the Moxa EDS product family should a specific variant reach end-of-life, ensuring your control system communication architecture remains supported without requiring a full network redesign.
