MOXA EDS-308-M-SC Ruggedized Ethernet Switch for Harsh Environments

Product Overview

MOXA EDS-308-M-SC Ruggedized Ethernet Switch for Harsh Environments

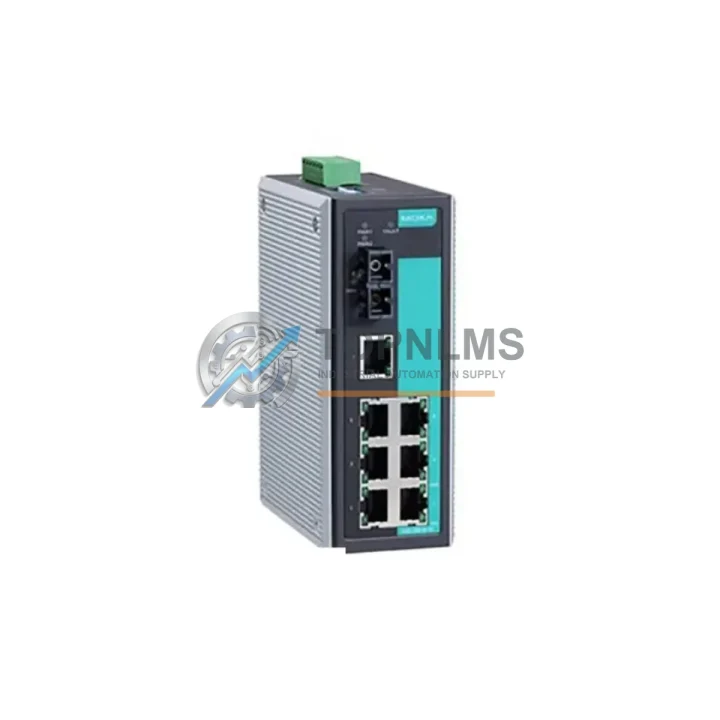

The MOXA EDS-308-M-SC is an 8-port unmanaged industrial Ethernet switch engineered for continuous, reliable operation in the most demanding industrial environments. Designed as part of MOXA’s proven EDS-300 Series, this switch delivers deterministic network performance across high-temperature, high-humidity, heavy-vibration, and electromagnetically noisy plant floors — precisely where standard commercial networking equipment fails. Whether deployed in a sealed control cabinet on a continuous steel rolling line, mounted on a DIN rail inside a substation relay panel, or integrated into a remote oil and gas wellhead enclosure, the EDS-308-M-SC maintains link integrity without compromise.

With six 10/100BaseT(X) RJ45 ports and two 100BaseFX multi-mode SC fiber ports, the EDS-308-M-SC bridges copper-based field devices and fiber backbone infrastructure in a single compact unit. The fiber ports provide electrical isolation and immunity to ground loops — a critical advantage when connecting PLCs, DCS I/O modules, variable frequency drives, and industrial power supplies across long cable runs or between electrically isolated zones. The built-in relay alarm output immediately signals network fault conditions to the host SCADA system or safety PLC, enabling rapid fault response without manual inspection.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial automation architectures, the EDS-308-M-SC functions as the communications backbone that ties together every layer of the control system. At the field level, it connects directly to MOXA NPort 5000 Series serial device servers, enabling legacy RS-232/RS-485 instruments — such as flow meters, pressure transmitters, and motor protection relays — to communicate over Ethernet without protocol conversion overhead. Upstream, it feeds structured data to Siemens S7-300 or S7-1500 PLCs via PROFINET, or to Rockwell Automation ControlLogix systems using EtherNet/IP, maintaining sub-millisecond cycle consistency even under heavy electromagnetic interference from nearby variable frequency drives.

Within the control cabinet, the EDS-308-M-SC operates alongside MOXA ioLogik E1200 Series remote I/O modules, collecting discrete and analog signals from field sensors and forwarding them to the DCS historian. The relay alarm output integrates directly with Pilz PNOZ safety relays or Siemens SIRIUS 3SK safety modules, triggering a controlled shutdown sequence if a critical network link drops — a design pattern mandated in SIL 2 and SIL 3 process safety architectures. Power is supplied via redundant 24 VDC rails from Phoenix Contact QUINT or MOXA DR-75-24 industrial DIN-rail power supplies, ensuring the switch itself never becomes a single point of failure.

For communication-intensive applications, the EDS-308-M-SC pairs naturally with MOXA MGate 5000 Series protocol gateways, bridging MODBUS TCP, DNP3, and IEC 61850 GOOSE messaging across the same physical network. In substations and power distribution panels, it works in concert with ABB REF615 protection relays and Schneider Electric Sepam series units, where IEC 61850-3 immunity is a non-negotiable requirement. Terminal block wiring within the cabinet is typically managed through Phoenix Contact or Weidmüller modular terminal systems, and the EDS-308-M-SC’s compact DIN-rail form factor integrates cleanly into these standardized enclosure layouts without requiring additional adapter hardware.

Application in Critical Infrastructure

In upstream oil and gas operations, the EDS-308-M-SC is deployed in wellhead RTU panels and HIPPS (High Integrity Pressure Protection System) enclosures, where ambient temperatures routinely exceed 60°C and vibration from pump jacks and compressors is constant. Its wide-temperature fiber ports maintain optical link integrity without the thermal drift that degrades copper connections in these conditions. Offshore platform control rooms rely on the switch’s DNV GL marine certification to satisfy classification society requirements for safety-critical network equipment.

In coal and metal mining operations, the switch is installed in explosion-proof enclosures (Ex d IIC) within ATEX Zone 2 classified areas, connecting conveyor belt PLCs, ventilation control systems, and gas detection panels to the surface SCADA network. The relay alarm output provides an immediate hardwired signal to the mine’s emergency shutdown system if network continuity is lost — a requirement under IEC 62061 functional safety standards.

Municipal water treatment and wastewater facilities deploy the EDS-308-M-SC in outdoor pump station panels, where humidity, condensation, and chemical vapors are persistent threats. Power utilities use it in 110 kV and 220 kV substation automation panels alongside IEC 61850 merging units and bay controllers, where its certified immunity to fast transients (IEC 61000-4-4) and surge voltages (IEC 61000-4-5) is essential. In steel and aluminum smelting plants, the switch operates continuously in the presence of intense radiated EMI from arc furnaces and induction heating equipment, maintaining network uptime across 24/7 production schedules with no scheduled maintenance windows.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
All EDS-308-M-SC units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. Coverage includes hardware defects, functional failures under normal operating conditions, and firmware-related issues. Each unit undergoes pre-shipment functional testing — including port link verification, relay alarm output check, and power input redundancy test — before dispatch. Replacement or repair is arranged within 5 business days of confirmed fault diagnosis.

Q2: How is compatibility with existing PLC and DCS systems verified?
The EDS-308-M-SC is a Layer 2 unmanaged switch and is protocol-agnostic at the physical and data-link layers. It is compatible with any Ethernet-based industrial protocol, including PROFINET, EtherNet/IP, MODBUS TCP, DNP3, and IEC 61850 GOOSE. Compatibility has been validated in installations alongside Siemens S7 series PLCs, Rockwell ControlLogix, ABB AC500, Schneider Modicon M340/M580, and Emerson DeltaV DCS systems. If your specific system architecture requires pre-sales technical confirmation, contact our engineering team at [email protected].

Q3: Is long-term supply availability guaranteed for this model?
MOXA maintains the EDS-300 Series as a long-lifecycle product line with a committed production horizon. TOPNLMS maintains buffer stock of the EDS-308-M-SC to support both immediate replacement needs and planned MRO procurement programs. For customers requiring guaranteed annual supply volumes, blanket purchase order arrangements are available. Contact us to discuss lead times, minimum order quantities, and consignment stocking options.

Q4: What safety precautions apply to installation in hazardous areas?
The EDS-308-M-SC is rated for ATEX Zone 2 installation when housed in a certified Ex d or Ex e enclosure — it must not be installed in open air within Zone 1 or Zone 0 classified areas. All wiring must comply with IEC 60079-14 installation standards. The relay alarm output must be wired to a safety-rated input on the host safety PLC or emergency shutdown system. TOPNLMS recommends that installation in classified hazardous areas be performed by a certified functional safety engineer (TÜV FS Engineer or equivalent). For site-specific installation guidance, contact [email protected].
