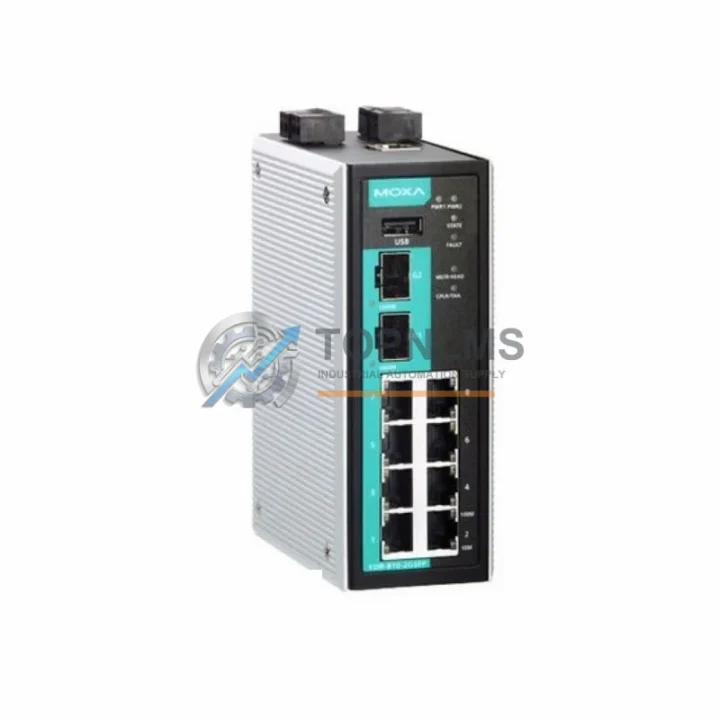

MOXA EDR-810-2GSFP-T Ruggedized Secure Router Module

Product Overview

MOXA EDR-810-2GSFP-T Ruggedized Secure Router Module: Industrial Resilience for Harsh Environments

The MOXA EDR-810-2GSFP-T is a purpose-engineered industrial secure router module built to deliver uncompromising OT network security and high-availability connectivity in the most demanding operational environments. Combining eight Gigabit Ethernet ports with two SFP fiber uplinks and a wide operating temperature range of -40°C to +75°C, this ruggedized module is designed for continuous, unattended deployment across oil and gas pipelines, mining substations, power distribution networks, water treatment facilities, and heavy manufacturing lines where network failure carries direct safety and production consequences.

As the security gateway of MOXA’s proven EDR-800 Series, the EDR-810-2GSFP-T integrates stateful packet inspection firewall, VPN (IPsec / OpenVPN / L2TP), NAT, and industrial protocol-aware deep packet inspection into a single DIN-rail-mountable chassis. It enforces IEC 62443-compliant network segmentation between the corporate IT layer and the operational technology (OT) field layer — a critical security boundary in any SCADA, DCS, or PLC-based control architecture. For industrial buyers evaluating long-term spare-part strategy, TOPNLMS maintains dedicated safety stock of this module with pre-shipment functional testing and a 12-month warranty on every unit shipped.

Rugged Specifications Table

Comprehensive Protection Solutions

The EDR-810-2GSFP-T functions as the network security anchor within a broader industrial control architecture. In a hardened control cabinet, it typically sits upstream of a MOXA EDS-510E managed Ethernet switch, which distributes traffic to field-level I/O nodes and remote terminal units. Downstream, Siemens SIMATIC S7-1500 PLC controllers and Rockwell Automation ControlLogix 5580 processors rely on the router’s firewall rule sets to isolate their PROFINET and EtherNet/IP segments from unauthorized lateral access.

For power conditioning, the module pairs with a Phoenix Contact QUINT-PS/1AC/24DC/20 industrial DIN-rail power supply, ensuring stable 24 VDC input during grid fluctuations. Surge protection on each Ethernet port is reinforced by inline MOXA SPM-100 surge protectors, guarding against lightning-induced transients common in outdoor substations and pipeline telemetry stations. On the communications side, the EDR-810-2GSFP-T’s SFP uplinks connect to MOXA NPort 5650 serial device servers, bridging legacy RS-232/RS-485 instruments — flow meters, pressure transmitters, and RTUs — into the secured Ethernet backbone.

In DCS environments running Yokogawa CENTUM VP or Honeywell Experion PKS, the router enforces zone-conduit segmentation per IEC 62443-3-3, preventing lateral movement between process control and safety instrumented system (SIS) networks. Safety-critical applications additionally deploy Pilz PNOZmulti 2 safety relay modules on isolated safety network segments, with the EDR-810-2GSFP-T enforcing strict ACL policies to ensure no unauthorized traffic crosses into the safety layer. For wireless extensions across large plant floors, the router integrates with MOXA AWK-3131A industrial Wi-Fi access points, maintaining encrypted 802.11n connectivity without compromising the wired security perimeter.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the EDR-810-2GSFP-T is deployed at remote compressor stations and pipeline SCADA nodes where ambient temperatures swing from arctic cold to desert heat. Its -40°C cold-start capability and conformal-coated PCB options ensure reliable boot-up and sustained operation without climate-controlled enclosures, reducing CAPEX on shelter infrastructure.

In mining environments — underground coal mines, open-pit copper operations, and mineral processing plants — the router’s IEC 60068-2-6 vibration rating and IP30 sealed chassis withstand constant mechanical shock from blasting, heavy haulage, and conveyor systems. It segments the mine’s fiber backbone from pit-level PLCs and variable frequency drives (VFDs), preventing EMI-induced packet corruption from high-power motor drives from disrupting SCADA polling cycles.

For power utilities operating under NERC CIP compliance mandates, the EDR-810-2GSFP-T provides the electronic security perimeter (ESP) boundary between the corporate WAN and the substation automation network. Its deep packet inspection engine monitors IEC 61850 GOOSE and MMS traffic, alerting operators to anomalous command sequences that could indicate a cyber intrusion targeting protection relays or bay controllers.

In water and wastewater treatment facilities, the router secures communications between SCADA master stations and distributed pump stations, chlorination control panels, and RTUs across wide-area fiber and cellular links. Its dual redundant power inputs and hardware watchdog ensure continuous uptime during utility power interruptions, supporting uninterrupted treatment operations that protect public health.

In metallurgical and steel production plants, where electric arc furnaces and rolling mills generate extreme electromagnetic interference, the EDR-810-2GSFP-T’s IEC 61000-4 EMC hardening prevents network disruption during high-current switching events. It maintains reliable Modbus TCP polling between the process control system and temperature controllers, flow regulators, and hydraulic press PLCs throughout continuous casting and hot-rolling operations.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it handled?
All EDR-810-2GSFP-T units shipped by TOPNLMS are covered by a 12-month warranty from the date of delivery. Coverage includes manufacturing defects, component failures under normal operating conditions, and firmware-related hardware malfunctions. TOPNLMS provides advance replacement support to minimize downtime. Contact [email protected] to initiate a warranty case.

Q2: How is each unit tested before shipment?
Every EDR-810-2GSFP-T undergoes a pre-shipment functional verification protocol at our facility. This includes power-on self-test (POST) validation, port-by-port Ethernet link verification, SFP transceiver compatibility check, firewall rule-set load test, and VPN tunnel establishment test. Units that fail any checkpoint are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the EDR-810-2GSFP-T compatible with my existing PLC or DCS platform?
Yes. The EDR-810-2GSFP-T is protocol-agnostic at the IP layer and has been validated in architectures running Siemens SIMATIC, Rockwell ControlLogix, Schneider Modicon, ABB AC500, and Yokogawa CENTUM VP. Its industrial protocol deep packet inspection supports Modbus TCP and EtherNet/IP natively. For PROFINET or IEC 61850 environments, it operates transparently as a Layer 3 firewall/router without disrupting real-time protocol timing.

Q4: Can TOPNLMS guarantee long-term supply and spare-part availability?
TOPNLMS maintains dedicated safety stock of the EDR-810-2GSFP-T and key EDR-800 Series variants to support long-term maintenance contracts and emergency spare-part requirements. We work with authorized MOXA distribution channels and can provide lead-time commitments for bulk procurement. For multi-year supply agreements or consignment stock arrangements, contact our technical sales team directly.
