MKS 624A12TBC Replacement Solution for Baratron 600

Product Overview

MKS 624A12TBC Replacement Solution for Baratron 600: Smooth Transition & Legacy System Compatibility

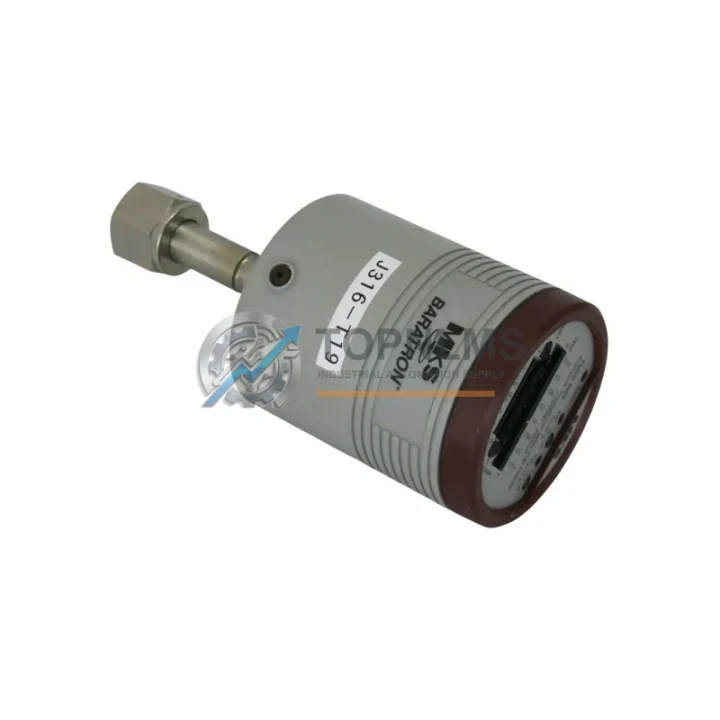

The MKS 624A12TBC is a high-precision capacitance manometer from MKS Instruments’ renowned Baratron 600 Series, rated for 100 Pa full-scale absolute pressure measurement. Designed for semiconductor process equipment, thin-film deposition systems, and vacuum furnace applications, this transducer delivers the measurement accuracy and long-term stability that critical process environments demand. Whether you are replacing a failed unit, upgrading aging instrumentation, or migrating from an earlier-generation pressure sensor, the 624A12TBC provides a direct, low-disruption path to continued process integrity.

Many facilities operating CVD, PVD, ALD, or etch chambers still rely on legacy MKS Baratron sensors from the 500 Series or early 600 Series production runs. These older units — including variants such as the MKS 622B, MKS 626A, and MKS 628B — share the same fundamental capacitance sensing principle but may differ in connector pinout, output signal range, or housing dimensions. The 624A12TBC is engineered to serve as a drop-in replacement for the majority of these configurations, with a standard 15-pin D-sub connector interface compatible with most OEM process controllers and MFC signal conditioners already installed in your system.

When migrating from a discontinued or end-of-life pressure transducer, the first concern is always wiring compatibility. The 624A12TBC uses the industry-standard MKS signal convention — 0–10 VDC analog output — which is directly accepted by MKS Type 247, PR4000B, and PDR2000 readout and control units without any signal conditioning modification. If your existing rack uses an older MKS 270 Signal Conditioner, a simple firmware or range-card swap is typically sufficient to accommodate the new sensor without rewiring the cabinet.

Physical installation is equally straightforward. The 624A12TBC ships with a standard 1.33-inch (DN16CF) ConFlat flange interface, matching the vacuum port geometry found on most process chambers from Applied Materials, Lam Research, Tokyo Electron, and equivalent OEM platforms. No custom adapter flanges or machining are required for standard retrofit applications. The sensor body dimensions are consistent with the Baratron 600 Series footprint, ensuring that existing mounting brackets, cable management, and interlock wiring remain undisturbed during the swap.

For facilities running multi-zone vacuum systems, the 624A12TBC integrates cleanly alongside companion components such as the MKS 651C Pressure Controller, MKS 1179A Mass Flow Controller, and MKS 153 Throttle Valve. These components share the same communication architecture and signal levels, allowing the replacement sensor to slot into an existing closed-loop pressure control loop without reconfiguring the process recipe or PID parameters. In systems where the MKS 670 Signal Conditioner or MKS 937B Multi-Sensor Controller is already deployed, the 624A12TBC is recognized automatically upon power-up.

Communication protocol compatibility is a key advantage of this series. The 624A12TBC supports both analog voltage output and optional RS-232 digital communication, making it suitable for integration with SCADA systems, DCS platforms, and legacy PLC-based process control architectures. Facilities transitioning from older analog-only instrumentation to hybrid digital-analog control environments will find the 624A12TBC a practical bridge solution that avoids the cost and risk of a full instrumentation overhaul.

From a procurement and supply chain perspective, sourcing a verified replacement for the 624A12TBC can be challenging when the original equipment manufacturer’s lead times extend beyond acceptable maintenance windows. TOPNLMS maintains ready stock of the MKS 624A12TBC and closely related Baratron 600 Series variants, enabling rapid dispatch to minimize unplanned downtime. Each unit undergoes pre-shipment functional verification, and all products are supplied with a 12-month warranty covering manufacturing defects and performance deviations from published specifications.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the MKS 624A12TBC rarely involves the pressure sensor alone. In most retrofit projects, the replacement sensor is installed alongside a set of supporting components that collectively restore or improve system performance. The MKS 651C Pressure Controller is frequently updated at the same time to take advantage of the improved signal resolution offered by the 624A12TBC. Similarly, facilities often replace aging MKS 1179A Mass Flow Controllers during the same maintenance window to eliminate a second potential failure point without incurring additional downtime.

In systems where the original cable harness shows signs of insulation degradation or connector wear, a replacement MKS-compatible sensor cable assembly is recommended to ensure signal integrity between the 624A12TBC and the readout unit. For multi-sensor racks, the MKS 937B Multi-Sensor Controller provides a centralized interface for up to four Baratron sensors simultaneously, simplifying the upgrade path for chambers with multiple pressure measurement points. Where process isolation is required, a signal isolator module inserted between the sensor output and the PLC analog input card eliminates ground loop interference that can corrupt pressure readings in electrically noisy environments.

Facilities upgrading from fully analog control architectures may also consider pairing the 624A12TBC with an MKS PR4000B dual-channel power supply and readout, which supports both the new sensor and a legacy unit in parallel during the transition period — allowing side-by-side validation before the old sensor is decommissioned. For chamber configurations that include a throttle valve for pressure regulation, the MKS 153 Throttle Valve Controller integrates directly with the 624A12TBC output to maintain closed-loop pressure setpoint control throughout the upgrade process.

Retrofit Guidance FAQ

Q: Will the 624A12TBC wire directly into my existing MKS 247 readout without modification?
A: Yes. The 624A12TBC uses the standard MKS 15-pin D-sub connector and 0–10 VDC output convention. No wiring changes are required for MKS 247, PR4000B, or PDR2000 readout units.

Q: Can I replace a 622B or 626A with the 624A12TBC without changing the vacuum flange?
A: In most cases, yes. Both models use the 1.33″ ConFlat flange standard. Verify your existing port specification before installation; non-CF ports may require an adapter.

Q: Does the 624A12TBC require recalibration after installation?
A: The unit is factory-calibrated and ready for use. A zero-point verification under base vacuum conditions is recommended as standard commissioning practice but is not mandatory.

Q: Is the RS-232 output compatible with my existing SCADA or DCS system?
A: The optional RS-232 interface uses the standard MKS communication protocol. Compatibility with third-party SCADA or DCS platforms depends on the availability of an MKS driver or OPC adapter in your control system. Consult your system integrator for protocol mapping details.

Q: What is the lead time for the 624A12TBC from TOPNLMS?
A: Units in stock ship within 1–3 business days from Xiamen. International express delivery to most destinations is available. Contact us for specific lead time confirmation before placing your order.

Warranty Assurance

Every MKS 624A12TBC supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification check to confirm output signal accuracy, connector integrity, and vacuum port condition. In the event of a confirmed manufacturing defect or performance deviation from MKS published specifications within the warranty period, TOPNLMS will arrange a replacement unit or issue a credit at no additional cost to the buyer.

Our after-sales response target is 24 hours for warranty claims submitted by email. Replacement units for confirmed warranty cases are prioritized for next-available dispatch. We maintain buffer stock specifically to support warranty replacement commitments, ensuring that a warranty claim does not translate into an extended wait for a critical spare.

For procurement teams requiring documentation, we can provide a pre-shipment inspection report, packing list, and commercial invoice with HS code declaration upon request. All shipments are traceable from dispatch to delivery, and tracking information is provided automatically at the time of shipment.

For volume orders, blanket purchase agreements, or consignment stock arrangements, please contact our sales team directly to discuss terms.
