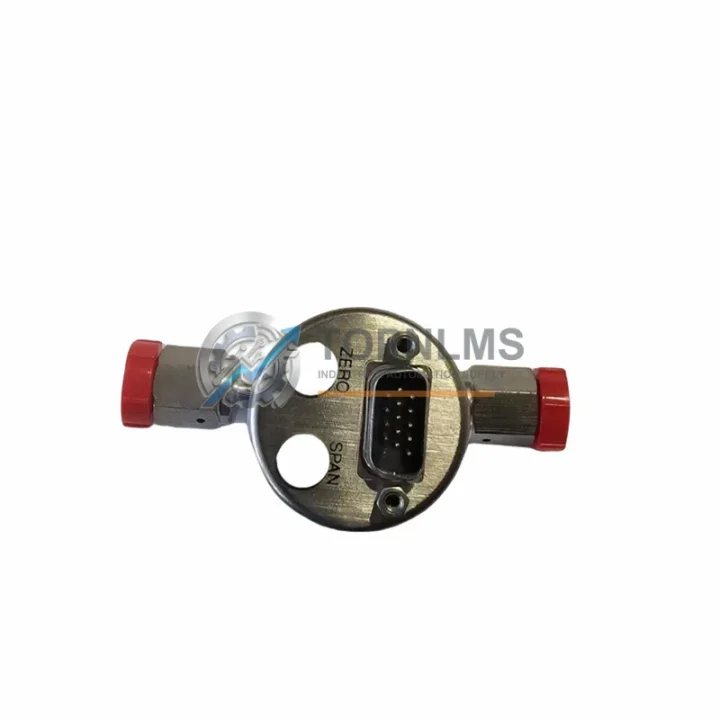

MKS Instruments 852B-13384 Original Industrial Spare Baratron Compatible

Product Overview

MKS Instruments 852B-13384 Original Industrial Spare Baratron Compatible: Ensuring Vacuum System Stability and Minimizing Downtime

In high-precision vacuum process environments — semiconductor fabrication, thin-film deposition, chemical vapor deposition (CVD), and industrial vacuum furnace operations — pressure measurement accuracy is not a convenience; it is a production-critical requirement. The MKS Instruments 852B-13384 Baratron® Capacitance Manometer is an original-grade industrial spare part engineered to maintain measurement integrity across demanding process conditions. Whether you are managing a scheduled maintenance window, responding to an unplanned shutdown, or building a strategic spare parts inventory, the 852B-13384 delivers the reliability and compatibility your vacuum system demands.

Sourced as an original industrial component, this unit is fully compatible with MKS Instruments Baratron® series installations and integrates directly into existing vacuum process control architectures without modification. Its capacitance-based sensing technology provides temperature-compensated, gas-independent pressure measurement — a critical advantage in process environments where gas composition varies or where cross-contamination between measurement media must be avoided.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your Vacuum Process System

A capacitance manometer like the 852B-13384 sits at the heart of vacuum process control — but it does not operate in isolation. During any scheduled maintenance interval or unplanned shutdown, experienced maintenance engineers know that replacing or inspecting the pressure transducer alone is rarely sufficient. The surrounding measurement and control infrastructure must be evaluated simultaneously to prevent repeat failures and ensure system stability after restart.

When servicing a vacuum process line that includes the MKS 852B-13384, it is standard practice to simultaneously inspect the MKS PR4000B or PDR900 signal conditioner, which powers and conditions the transducer output. A degraded signal conditioner can produce erroneous pressure readings even when the manometer itself is functioning correctly — a diagnostic trap that costs hours of troubleshooting time. Alongside this, the MKS 670 or 672 signal conditioner module should be verified for calibration drift, particularly in systems that have been in continuous operation for more than 18 months.

Vacuum integrity upstream and downstream of the manometer is equally critical. Maintenance teams should inspect MKS 153 or 248 throttle valves and associated MKS 651C or 653B pressure controllers for actuator wear and seal degradation. These components work in closed-loop with the 852B-13384 to regulate chamber pressure — any mechanical wear in the valve assembly will manifest as pressure instability that is often misattributed to the manometer.

For facilities managing multiple vacuum chambers, it is advisable to maintain a parallel inventory of MKS 390 HA-00001 Baratron convection gauges and MKS 722B or 626B absolute pressure transducers for roughing-line and foreline pressure monitoring. These instruments complement the 852B-13384 in a multi-gauge vacuum measurement architecture and are subject to similar wear cycles. Replacing them on a coordinated schedule reduces the risk of cascading measurement failures across a production line.

Electrical connectivity is another frequently overlooked maintenance point. The MKS 15-pin D-sub signal cables and associated feedthrough connectors should be inspected for pin corrosion, insulation cracking, and connector seating integrity. In high-cycle environments, connector degradation is a leading cause of intermittent signal faults that are difficult to diagnose without systematic cable inspection. Keeping a stock of OEM-compatible signal cables alongside the 852B-13384 ensures that a full measurement loop can be restored without waiting for additional parts procurement.

Finally, for systems integrated into a broader PLC or DCS control architecture — such as those using Siemens S7-300/400 analog input modules or Allen-Bradley 1756 ControlLogix analog I/O cards — it is worth verifying that the analog input channel receiving the manometer signal is within calibration tolerance. A drifted analog input card will corrupt pressure data at the controller level regardless of the transducer’s accuracy, leading to incorrect process decisions and potential yield loss.

Strategic Replacement Solutions: Extending System Life and Reducing Downtime

The MKS Instruments 852B-13384 is a direct replacement for aging Baratron® 852B series units that have reached end-of-calibration-life or suffered diaphragm fatigue from prolonged exposure to corrosive process gases. Unlike generic pressure transducers, the 852B-13384 maintains full compatibility with existing MKS signal conditioning infrastructure, eliminating the need for signal scaling adjustments, wiring modifications, or PLC parameter changes during replacement.

For facilities operating legacy vacuum systems originally commissioned in the 1990s or 2000s, the 852B-13384 provides a cost-effective path to extend system operational life without capital investment in new process equipment. The original-grade component ensures that measurement accuracy, response time, and long-term stability meet the same specifications as the factory-installed unit — a critical requirement for process-qualified production lines where any change to measurement hardware must be validated against process specifications.

Procurement teams managing multi-site operations benefit from stocking the 852B-13384 as a strategic spare. With a 12-month warranty and pre-shipment functional testing, each unit arrives ready for immediate installation, reducing mean time to repair (MTTR) during unplanned shutdowns. For facilities with service level agreements (SLAs) that mandate maximum allowable downtime, having a verified spare on the shelf is the single most effective risk mitigation strategy available.

Support FAQ

Q1: What is the expected service life of the MKS 852B-13384, and when should I plan for replacement?
Under normal operating conditions with clean, non-corrosive process gases, Baratron® 852B series manometers typically deliver 3–5 years of reliable service before diaphragm fatigue or calibration drift necessitates replacement. In corrosive gas environments (e.g., HCl, HF, Cl₂), service intervals should be shortened to 12–18 months. We recommend scheduling replacement during planned maintenance shutdowns rather than waiting for in-process failure, which carries significantly higher downtime costs.

Q2: Is the 852B-13384 compatible with my existing MKS signal conditioner and PLC analog input?
Yes. The 852B-13384 is fully compatible with MKS Instruments PR4000B, PDR900, 670, and 672 series signal conditioners. Its standard 0–10 VDC analog output is directly compatible with most PLC and DCS analog input modules, including Siemens S7 series, Allen-Bradley ControlLogix, and Yokogawa CENTUM VP I/O cards, without requiring signal scaling changes.

Q3: What pre-shipment testing is performed, and what does the 12-month warranty cover?
Every 852B-13384 unit undergoes functional verification prior to shipment, including zero-point check, span verification, and output signal integrity test. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from exposure to incompatible process gases, mechanical impact, or installation errors. Warranty claims are processed with full technical support from our team.

Q4: Can I install the 852B-13384 as a direct drop-in replacement without recalibrating my process controller?
In most cases, yes — provided the replacement unit is the same full-scale range as the original. The 852B-13384 maintains the same output scaling and process connection geometry as the original Baratron® 852B series, allowing direct substitution. However, we recommend performing a system zero-point verification after installation and before resuming production, as is standard practice for any pressure measurement replacement in a process-qualified environment.
