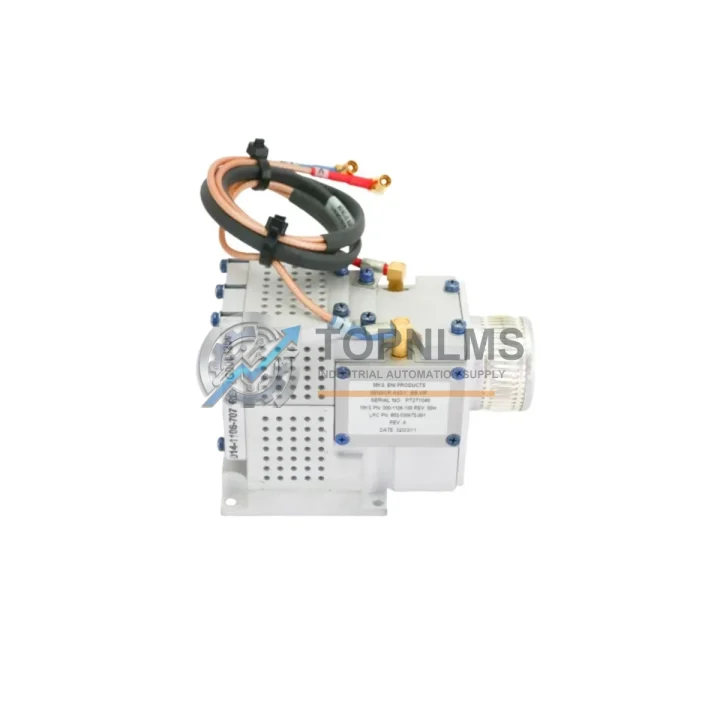

MKS 853-030675-001 Ruggedized RF Probe for Harsh Environments

Product Overview

MKS 853-030675-001 Ruggedized RF Probe for Harsh Environments

The MKS Instruments 853-030675-001 is a precision-engineered ENI VI Series voltage-current probe assembly designed for continuous RF power monitoring in the most demanding industrial environments. Built to withstand high temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this probe delivers unwavering measurement accuracy where standard instrumentation fails. Whether deployed on a semiconductor fabrication line, a plasma etching system, or a high-frequency industrial heating installation, the 853-030675-001 maintains signal integrity and structural integrity across thousands of operating hours without recalibration drift.

Engineered under MKS Instruments’ rigorous ENI VI platform standards, this probe assembly integrates seamlessly with MKS RF generators, impedance matching networks, and process control systems. Its ruggedized coaxial construction and thermally stable dielectric materials ensure that voltage and current phase measurements remain reliable even when ambient temperatures fluctuate or when the surrounding control cabinet experiences sustained vibration from adjacent heavy machinery. For facilities operating continuous production lines — where unplanned downtime translates directly into lost revenue — the 853-030675-001 represents a critical safeguard for process stability and personnel safety.

Rugged Specifications Table

Comprehensive Protection Solutions

The 853-030675-001 probe does not operate in isolation — it is a precision sensing element within a broader RF power delivery and process control architecture. In a typical plasma etch or CVD chamber installation, this probe is positioned between the MKS ENI OEM-series RF generator and the impedance matching network, providing real-time VI data that the process controller uses to maintain stable plasma conditions. Alongside the probe, the system typically incorporates an MKS ENI ACG-3B or ACG-5B RF generator as the power source, with an MKS ATX or AIT series auto-matching network dynamically tuning the load impedance to minimize reflected power.

On the control and safety side, the process interlock logic is often managed by a Siemens S7-300 or S7-1200 PLC — or in legacy installations, a Mitsubishi FX3U-32M or FX2N-16EYR-ES/UL programmable controller — which reads the VI probe output via analog input modules such as the Mitsubishi FX2N-8AD or equivalent 4–20 mA / 0–10 V I/O cards. These PLC platforms provide the safety interlock logic that shuts down RF power in the event of arc detection, over-temperature, or chamber pressure excursions, protecting both the process equipment and plant personnel.

Power quality and isolation are equally critical in RF-intensive environments. Industrial-grade DIN-rail power supplies with active power factor correction and high common-mode noise rejection are used to power the control cabinet, while Phoenix Contact or Weidmüller terminal blocks and surge protection modules safeguard signal wiring from transient overvoltages induced by the RF field. Safety relays and safety I/O modules — such as those from the Pilz PNOZ series or Siemens SIRIUS 3SK family — provide SIL-rated emergency stop and door interlock functions that remain operative even during RF generator faults. For facilities requiring remote diagnostics, industrial Ethernet communication modules (PROFINET, EtherNet/IP, or Modbus TCP gateways) relay VI probe data and PLC status to SCADA systems, enabling predictive maintenance scheduling before a probe or generator fault causes unplanned downtime.

Application in Critical Infrastructure

The MKS Instruments 853-030675-001 finds its most demanding deployments in critical infrastructure sectors where process continuity and personnel safety are non-negotiable. In semiconductor wafer fabrication, plasma etch and deposition chambers operate 24/7 under strict process recipes; any drift in delivered RF power — caused by a degraded VI probe — results in out-of-spec wafers, yield loss, and costly chamber conditioning cycles. The 853-030675-001’s stable phase and amplitude response ensures that the RF generator’s closed-loop power control algorithm receives accurate feedback at all times.

In oil and gas processing facilities, RF-based level measurement and flow instrumentation operate in classified hazardous areas where explosive atmospheres demand both intrinsic safety and robust EMI shielding. The probe’s sealed construction and high-rejection coaxial design make it suitable for use in control panels installed in Zone 2 / Division 2 environments when properly integrated with certified enclosures. Similarly, in metallurgical and induction heating applications — such as billet heating lines in steel mills or aluminum smelters — the probe monitors power delivery to induction coils operating at high RF power levels, where thermal cycling and electromagnetic fields are extreme. Water treatment and power generation facilities also rely on RF-based instrumentation for ozone generation and UV disinfection systems, where the 853-030675-001 provides the measurement accuracy needed to maintain regulatory compliance for disinfection byproduct limits.

Across all these sectors, the ability to source a verified, tested replacement probe with a clear 12-month warranty — rather than waiting months for OEM lead times — is a decisive procurement advantage. TOPNLMS maintains stock of the 853-030675-001 and related ENI VI series components to support emergency replacement, planned maintenance shutdowns, and spare-parts inventory programs for facilities operating MKS-based RF systems.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 853-030675-001?
The 12-month quality warranty covers all functional defects attributable to manufacturing or component failure under normal operating conditions as specified in the MKS ENI VI product documentation. If the probe fails to meet its voltage, current, or phase measurement specifications within the warranty period, TOPNLMS will arrange replacement or refund. The warranty does not cover damage resulting from installation errors, overvoltage events beyond rated limits, or physical mishandling.

Q2: How is each unit tested before shipment?
Every 853-030675-001 unit in our inventory undergoes a pre-shipment functional inspection that verifies connector integrity, coaxial shielding continuity, and — where test equipment permits — basic RF signal transmission characteristics. Units sourced as new-in-box are verified against original MKS packaging and date codes. Tested surplus units are clearly identified as such at the time of quotation, with test records available on request.

Q3: Is the 853-030675-001 compatible with third-party RF generators and matching networks?
The 853-030675-001 is designed as part of the MKS ENI VI platform and is optimized for use with MKS / ENI RF generators and AIT/ATX matching networks. It uses standard RF coaxial interfaces and its analog output signals (voltage and current magnitude, phase) are compatible with most industrial process controllers and analog input modules that accept standard signal ranges. For integration with non-MKS systems, customers should confirm signal conditioning requirements with their control system engineer prior to installation.

Q4: Can TOPNLMS support long-term or recurring supply of this part?
Yes. TOPNLMS specializes in industrial automation spare parts procurement and maintains relationships with multiple supply channels for MKS Instruments and ENI VI series components. For facilities with planned maintenance schedules or multi-unit installations, we can discuss blanket order arrangements, reserved stock programs, and priority allocation to ensure continuity of supply. Contact us at [email protected] or +86 18359293191 to discuss your long-term procurement requirements.
