Mitsubishi SJ-PF7.5-01 Replacement for SJ-PF Series

Product Overview

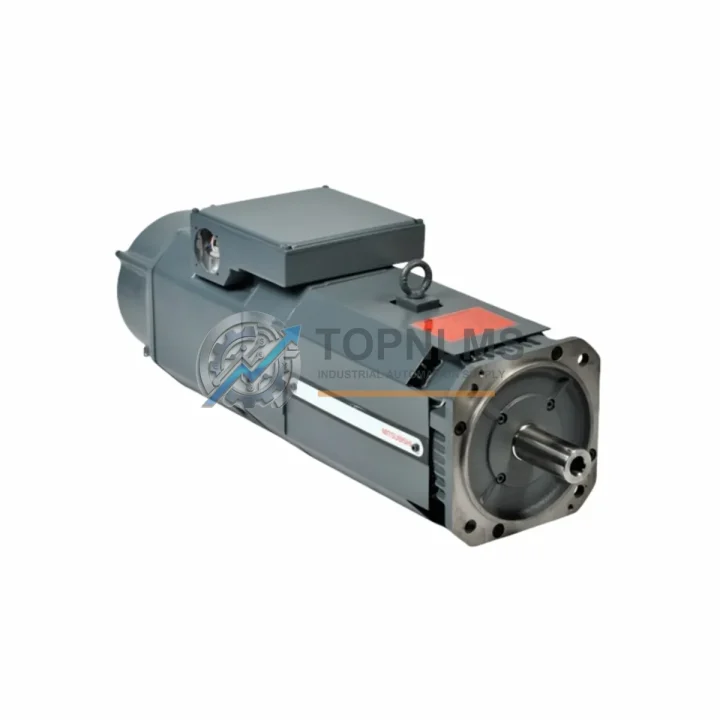

Mitsubishi SJ-PF7.5-01 Replacement for SJ-PF Series: Smooth Transition, Zero Compromise

When a legacy servo drive system reaches end-of-life or a critical motor fails on the production floor, every hour of downtime translates directly into lost revenue and operational risk. The Mitsubishi SJ-PF7.5-01 is a 7.5 kW AC servo motor from Mitsubishi Electric’s proven SJ-PF Series, engineered for high-torque, high-precision motion control in demanding industrial environments. TOPNLMS maintains verified stock of this model to support urgent replacement, planned retrofit, and system upgrade projects across manufacturing, packaging, CNC machining, and process automation sectors.

Whether you are migrating from an older SJ-B Series or SJ-A Series motor, or replacing a failed unit within an existing MELSERVO-J2S or MELSERVO-J3 servo system, the SJ-PF7.5-01 is designed to deliver a mechanically and electrically compatible drop-in solution with minimal re-engineering effort.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful servo motor replacement rarely involves the motor alone. In most retrofit and upgrade projects, the SJ-PF7.5-01 is deployed alongside a coordinated set of compatible components to ensure the entire motion control chain performs reliably from day one.

The servo amplifier is the first consideration. The Mitsubishi MR-J2S-70A and MR-J3-70A servo amplifiers are the primary drive partners for the SJ-PF7.5-01, providing closed-loop torque, speed, and position control. If the existing amplifier is a legacy MR-J2-70A, it may be retained in many installations, though upgrading to the MR-J3 generation is recommended for improved diagnostics and SSCNET III/H compatibility.

Encoder cables and motor power cables must be verified during any motor swap. Mitsubishi’s MR-JCCBL series encoder cables and MR-PWS1CBL motor power cables are designed specifically for SJ-PF Series motors and ensure signal integrity over the full operating speed range. Using non-specified cables is a common source of encoder feedback errors after replacement.

For systems integrated into a broader MELSEC Q Series PLC or MELSEC iQ-R Series motion controller architecture, the servo axis configuration in the motion CPU — such as the Q172DCPU or RD77MS motion module — may require parameter updates to reflect the new motor’s inertia ratio and encoder resolution. This is a software-only change and does not require hardware modification to the controller rack or I/O modules.

In cabinet-integrated installations, the Mitsubishi FR-A800 Series inverter or adjacent MR-J3-D01 safety option unit may be present in the same panel. These components are unaffected by the motor swap and continue to operate normally. However, if the system uses a Mitsubishi GOT2000 Series HMI for servo monitoring, the motor model parameter displayed on the HMI screen should be updated to reflect the SJ-PF7.5-01 for accurate diagnostics.

Terminal blocks and I/O wiring within the control cabinet — typically routed through Mitsubishi A6CON series connectors or third-party DIN rail terminal modules — do not require modification, as the SJ-PF7.5-01 uses the same standard connector pinout as its predecessors in the SJ-PF and SJ-B families.

Retrofit Guidance FAQ

Q1: Can the SJ-PF7.5-01 be connected directly to my existing MR-J2S amplifier without rewiring?
In most cases, yes. The SJ-PF7.5-01 uses the same motor connector and encoder connector pinout as the SJ-B and SJ-PF family motors paired with MR-J2S amplifiers. Verify the encoder cable part number (MR-JCCBL series) matches your amplifier generation. No rewiring of the main power terminals is required if the existing cable gauge is rated for 7.5 kW.

Q2: Do I need to modify my PLC program or motion controller parameters after replacing the motor?
The PLC ladder program itself does not require changes. However, servo amplifier parameters — specifically the motor series code (PA01), encoder resolution, and inertia ratio (PB06) — should be reviewed and updated in the MR-J2S or MR-J3 amplifier using MR Configurator2 software. This ensures optimal tuning and prevents nuisance alarms after the swap.

Q3: Is the physical mounting footprint identical to the motor I am replacing?
The SJ-PF7.5-01 shares the same IEC frame class and flange dimensions as the SJ-B7.5 and equivalent legacy motors. Bolt pattern, shaft diameter, and shaft key dimensions are matched, allowing direct installation without machining or adapter plates. Confirm the shaft extension length if a coupling or gearbox is involved.

Q4: What communication protocols are supported, and will my SSCNET wiring remain valid?
The SJ-PF7.5-01 communicates via the servo amplifier, not directly. If your amplifier supports SSCNET or SSCNET III, the existing fiber-optic or cable wiring between the motion controller and amplifier is unaffected by the motor replacement. The motor-to-amplifier interface is a standard power and encoder connection, independent of the network protocol.

Warranty Assurance

Every Mitsubishi SJ-PF7.5-01 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Before dispatch, each unit undergoes a structured pre-shipment inspection that includes visual examination, insulation resistance testing, encoder signal verification, and rotational function check. Units that do not pass all inspection criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical team is available to assist with installation verification, parameter configuration guidance, and compatibility confirmation before and after purchase. We understand that servo motor failures in critical production environments require fast, reliable resolution — not bureaucratic delays.

TOPNLMS ships globally from Xiamen, China, with standard lead times of 3–7 business days for in-stock items. Express shipping options are available for urgent replacement requirements. All units are packaged in anti-static, shock-resistant materials to ensure safe transit.

For volume procurement, long-term supply agreements, or technical pre-sales consultation, contact our industrial automation team directly.
