Mitsubishi MR-J3-200AN Replacement for MELSERVO-J3

Product Overview

Mitsubishi MR-J3-200AN Replacement for MELSERVO-J3: Seamless Transition to Modern Servo Control

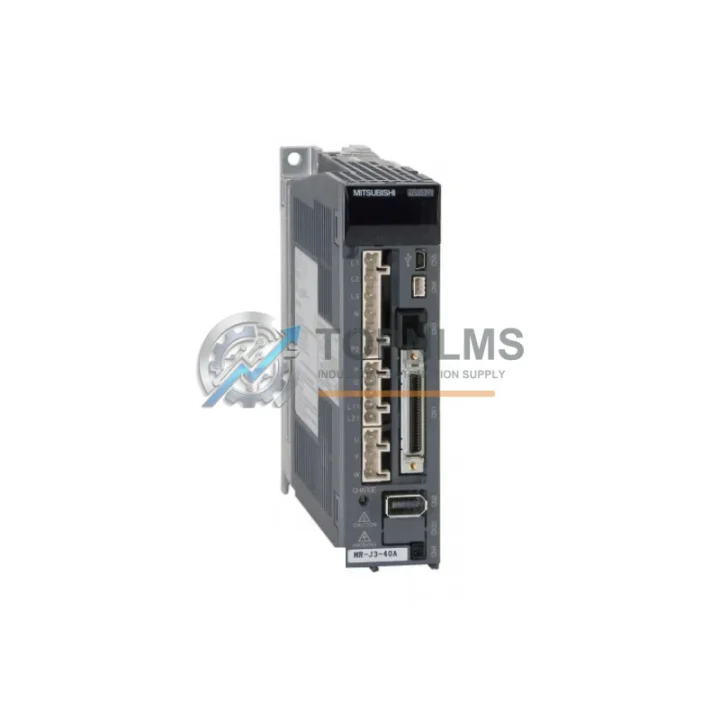

The Mitsubishi MR-J3-200AN is a 2kW AC servo amplifier from the MELSERVO-J3 series, widely deployed across CNC machining centers, automated assembly lines, packaging equipment, and precision motion control systems throughout Asia and globally. As the MR-J3 platform approaches end-of-life and spare parts become increasingly scarce, many facilities are now planning structured migration paths to maintain production continuity. TOPNLMS supplies verified MR-J3-200AN units — both original stock and compatible upgrade pathways — to support your retrofit or emergency replacement needs with minimal disruption to ongoing operations.

Whether you are replacing a failed unit on an urgent basis or executing a planned modernization from an older MR-J2S-200A or MR-J2-200A servo amplifier, the MR-J3-200AN offers a well-understood migration target with broad compatibility across existing servo motor frames, encoder cables, and control cabinet wiring layouts. Its SSCNET III fiber-optic communication interface integrates directly with Mitsubishi Motion Controllers such as the Q172DCPU and Q173DCPU, as well as compatible MELSEC Q-series PLC platforms, making it a practical intermediate step before a full transition to the newer MR-J4 or MR-J5 generation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy MR-J2S or MR-J2 servo system to the MR-J3-200AN typically involves more than a direct amplifier swap. The SSCNET III fiber-optic bus requires replacement of the communication cable from the Motion Controller or the preceding axis amplifier in the daisy-chain. If your system uses a Q172DCPU or Q173DCPU Motion Controller, verify that the controller firmware supports the MR-J3 axis parameter set before commissioning.

On the motor side, the MR-J3-200AN is designed to pair with HF-SP series servo motors (e.g., HF-SP202, HF-SP204) using the MR-J3 17-bit absolute encoder. If your existing installation uses HC-SFS or HC-RFS series motors from the MR-J2S era, an encoder replacement or motor swap will be required. The MR-J3ENCBL encoder cable set must be matched to the motor frame and cable length to ensure signal integrity.

For control cabinet integration, the CN1 connector on the MR-J3-200AN interfaces with your MELSEC Q-series or iQ-R series PLC I/O via the MR-J3-D05 or equivalent I/O terminal block adapter, simplifying the connection of external signals such as servo-on, alarm reset, and limit switch inputs without rewiring the entire cabinet harness. Where regenerative braking loads are significant — common in vertical axis or high-inertia applications — confirm that the existing MR-RB regenerative resistor unit is rated for the J3 amplifier’s regenerative capacity.

Power supply integrity is critical during the transition. The MR-J3-200AN requires a stable 3-phase 200–230 VAC main circuit supply and a 24 VDC control power input. If your existing control cabinet uses a shared 24 VDC rail, verify that the rail capacity accommodates the additional inrush current during amplifier initialization. An MR-PWS1CBL power supply cable or equivalent should be used to maintain clean separation between control and main circuit wiring.

For facilities managing a mixed fleet of servo axes, the MR-J3-200AN can coexist on the same SSCNET III network with other MR-J3 series amplifiers such as the MR-J3-100AN, MR-J3-350AN, and MR-J3-500AN, enabling phased axis-by-axis migration without requiring a full system cutover. This approach significantly reduces planned downtime and allows production to continue on unaffected axes during the retrofit window.

Retrofit Guidance FAQ

Q: Can I reuse my existing servo motor with the MR-J3-200AN?
A: Only if the motor is from the HF-SP or HF-MP series with a compatible MR-J3 17-bit encoder. HC-SFS and HC-RFS motors from the MR-J2S era require encoder replacement or motor substitution. Confirm the motor model and encoder type before ordering.

Q: Do I need to replace the communication cable when upgrading from MR-J2S?
A: Yes. The MR-J3-200AN uses SSCNET III fiber-optic communication, which is not backward-compatible with the copper SSCNET cable used by MR-J2S amplifiers. New fiber-optic SSCNET III cables must be routed between the Motion Controller and each J3 amplifier in the axis chain.

Q: Can I migrate my existing servo parameters directly?
A: Parameter sets between MR-J2S and MR-J3 are not directly transferable. You will need to re-enter tuning parameters using MR Configurator2. Key parameters including position loop gain, speed loop gain, and auto-tuning response level must be re-commissioned on the J3 platform. TOPNLMS recommends bench testing before field installation.

Q: What are the physical space requirements in the control cabinet?
A: The MR-J3-200AN requires a minimum 50 mm clearance on each side for airflow. Verify cabinet depth, as the J3 series is slightly deeper than some J2S units. Ensure the DIN rail or panel mounting surface can support the amplifier weight and that the main circuit terminal block is accessible for wiring.

Q: Is the MR-J3-200AN compatible with my existing MELSEC Q-series PLC program?
A: The PLC program itself does not require modification if motion commands are issued through the Motion Controller (Q172DCPU/Q173DCPU). However, axis parameters within the Motion Controller project must be updated to reflect the MR-J3 amplifier type. Consult the Mitsubishi Motion Controller programming manual for axis parameter migration guidance.

Q: What if my application uses a full-closed loop encoder?
A: The MR-J3-200AN supports full-closed loop control via the CN2L connector when used with a compatible linear or rotary scale. Verify that the scale interface matches the J3 full-closed loop specification before wiring.

Warranty Assurance

Every MR-J3-200AN unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, communication interface check, and visual inspection for physical integrity. Units are packed in anti-static protective packaging with foam cushioning to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a credit at our discretion, subject to return inspection. Our after-sales response target is within 1 business day for warranty claims submitted by email to [email protected]. We maintain buffer stock of high-demand MELSERVO-J3 series amplifiers to support rapid replacement dispatch, minimizing your production downtime during any warranty resolution process.

For urgent procurement requirements — including same-day quotation, express air freight, and consolidated shipment with other MELSEC or MELSERVO components — contact our technical sales team directly. We ship from Xiamen, China, with export documentation, commercial invoice, and packing list provided as standard for all international orders.
