Mitsubishi MR3-V34-070701 Original Industrial Spare MELSERVO-J3 Compatible

Product Overview

Mitsubishi MR3-V34-070701 Original Industrial Spare: MELSERVO-J3 System Stability & Maintenance Value

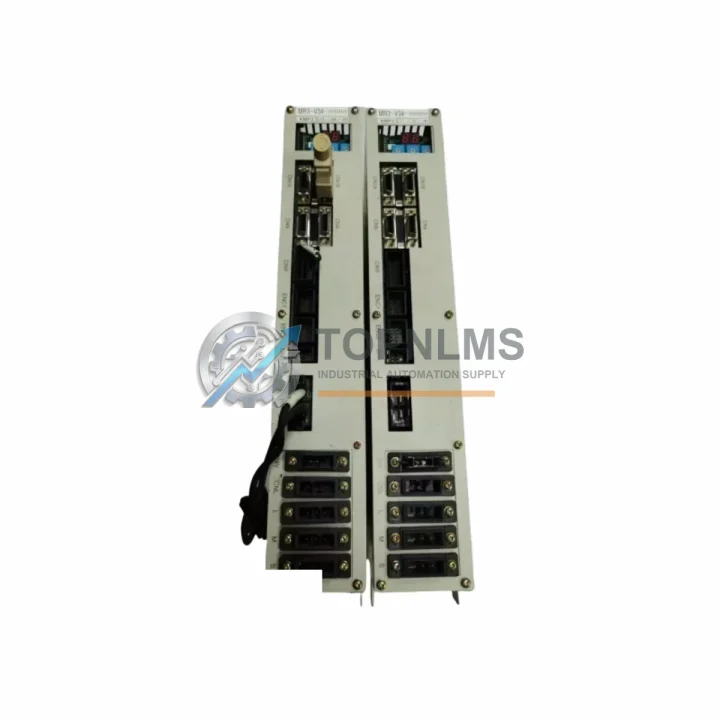

The Mitsubishi Electric MR3-V34-070701 is an original AC servo amplifier from the MELSERVO-J3 series, engineered for precision motion control in demanding industrial automation environments. Whether you are managing a scheduled overhaul, responding to an unplanned servo fault, or building a strategic spare parts inventory, the MR3-V34-070701 delivers the reliability and compatibility your production line depends on. Sourced directly from Mitsubishi Electric’s manufacturing chain, this unit is fully tested prior to dispatch and backed by a 12-month warranty.

In modern manufacturing facilities — from automotive assembly to food processing, semiconductor fabrication to heavy machinery — servo amplifiers are the heartbeat of motion control. A failed servo drive can halt an entire production cell within seconds. Stocking the MR3-V34-070701 as a certified spare eliminates the risk of extended lead times and ensures your maintenance team can execute a same-shift replacement without waiting for procurement cycles.

Critical Technical Specs

Preventive Maintenance Strategy

A servo amplifier does not operate in isolation. The MR3-V34-070701 sits at the center of a tightly integrated motion control ecosystem, and its long-term reliability depends on the health of every component in the same electrical circuit and control cabinet. When performing scheduled maintenance or responding to a servo alarm, experienced maintenance engineers know that replacing the amplifier alone is rarely sufficient — a comprehensive inspection of the surrounding components is essential to prevent repeat failures and protect the new unit.

Begin with the servo motor (such as the HF-KP or HF-SP series paired with J3 amplifiers): check for bearing wear, encoder signal integrity, and insulation resistance. A degraded motor encoder is one of the most common root causes of premature amplifier failure. Next, inspect the SSCNET III optical fiber cables connecting the amplifier to the controller — contaminated or bent fiber connectors cause intermittent communication faults that are frequently misdiagnosed as amplifier defects.

The MR-J3-D05 safety logic unit and any associated MR-BT6V battery units for absolute position retention should be checked during the same maintenance window. Battery depletion triggers position loss alarms on restart, which can be mistaken for amplifier faults. While the cabinet is open, verify the condition of the 24 VDC control power supply module feeding the amplifier’s logic circuit — voltage ripple or dropout events are a silent cause of parameter corruption and random E-series alarms.

Inspect all terminal block assemblies and I/O wiring at CN1 and CN3 connectors. Loose or corroded signal wires at the analog command input or digital I/O terminals introduce noise that degrades positioning accuracy over time. If the system uses a Mitsubishi MELSEC Q-series or iQ-R series PLC as the motion controller, confirm that the QD75 or RD77 positioning module firmware is current and that axis parameters match the replacement amplifier’s gain settings.

For facilities running multiple servo axes in a gantry or multi-axis configuration, it is prudent to stock the MR-J3W dual-axis amplifier variants alongside single-axis units like the MR3-V34-070701, ensuring coverage across the full servo topology. Additionally, review the regenerative resistor unit (MR-RB series) if the application involves frequent deceleration cycles — an aged resistor unit can cause overvoltage faults that stress the amplifier’s internal braking circuit.

Finally, document the replacement in your CMMS with the serial number, installation date, and pre-replacement alarm history. This data is invaluable for predicting the next maintenance interval and justifying spare parts budget to plant management.

Strategic Replacement Solutions

The MR3-V34-070701 is designed as a direct replacement within the MELSERVO-J3 platform, preserving full parameter compatibility with existing axis configurations stored in the controller. Unlike third-party alternatives that require re-commissioning and gain re-tuning, an original Mitsubishi spare allows maintenance teams to restore production in the shortest possible time — often within a single shift.

For facilities still operating legacy MELSERVO-J2S or J2-Super series systems, the J3 platform represents a proven upgrade path. The MR3-V34-070701 supports the same mechanical mounting footprint as many J2S variants, and Mitsubishi’s parameter conversion tools simplify the migration. This makes it an ideal candidate for a phased modernization strategy: replace failed J2S units with J3 amplifiers during corrective maintenance events, gradually standardizing the plant on a single, supported servo platform without a costly all-at-once capital project.

Stocking the MR3-V34-070701 also supports end-of-life system extension. As Mitsubishi phases out older servo generations, original J3 spares become increasingly difficult to source at competitive prices. Purchasing now locks in current pricing and guarantees availability for the next 3–5 years of planned production, protecting your capital investment in existing servo-driven machinery.

Every unit shipped from TOPNLMS undergoes functional verification testing. Shipment is typically completed within 2–5 business days, with express options available for emergency breakdown situations. All units are packaged in anti-static, shock-resistant materials to ensure safe transit to your facility.

Support FAQ

Q1: Is the MR3-V34-070701 a direct drop-in replacement for my existing MELSERVO-J3 amplifier?
Yes. The MR3-V34-070701 is an original Mitsubishi Electric unit fully compatible with the MELSERVO-J3 series. It retains the same parameter structure, connector pinout, and SSCNET III communication protocol, allowing direct substitution without re-engineering the axis configuration. Restore your saved parameters from the controller or MR Configurator2 after installation.

Q2: What does the 12-month warranty cover, and how is the unit tested before shipment?
Every MR3-V34-070701 unit is functionally tested prior to dispatch to verify power stage integrity, communication interface operation, and alarm-free startup. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Units showing damage from incorrect wiring, overvoltage events, or environmental exposure beyond rated specifications are assessed case by case.

Q3: How many units should I stock for a facility with multiple J3 servo axes?
Industry best practice for critical servo axes is a minimum of one spare per 10 installed axes, with at least one unit always on-hand for high-cycle or safety-critical axes. For facilities with 20+ J3 axes, a tiered inventory of 2–3 MR3-V34-070701 units significantly reduces mean time to repair (MTTR) and protects against supply chain disruptions. Contact us for volume pricing on multi-unit orders.

Q4: Can compatibility be verified before I commit to purchasing?
Yes. Provide your existing amplifier’s nameplate data (model number, rated output, and encoder type) and your servo motor model. Our technical team will confirm compatibility and advise on any parameter adjustments required for the replacement. We recommend cross-referencing with Mitsubishi Electric’s MR-J3 series selection guide and confirming the amplifier capacity matches your motor’s rated current.
