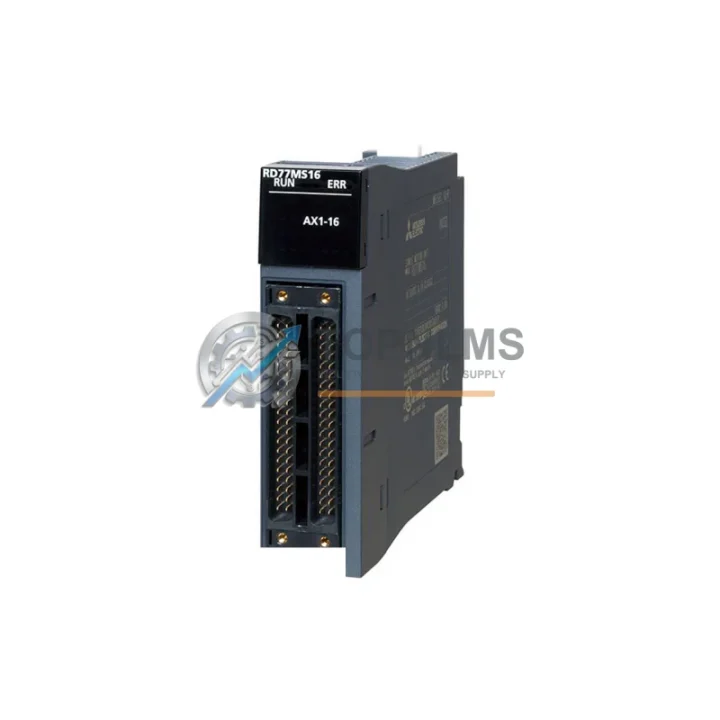

Mitsubishi RD77MS16 Ruggedized 16-Axis Motion Module

Product Overview

Mitsubishi RD77MS16 Ruggedized 16-Axis Motion Module: Industrial Resilience for Harsh Environments

The Mitsubishi Electric RD77MS16 is a high-performance 16-axis Simple Motion Module engineered for the MELSEC iQ-R Series platform — one of the most trusted programmable logic controller architectures in global industrial automation. Designed to deliver precision multi-axis servo coordination in demanding production environments, the RD77MS16 sustains continuous, fault-tolerant operation across high-temperature, high-humidity, vibration-intensive, and electromagnetically noisy industrial sites.

Whether deployed on a continuous automotive assembly line, a high-cycle semiconductor fabrication cell, or a heavy-duty material handling system, the RD77MS16 provides deterministic motion control with sub-millisecond synchronization accuracy. Its ruggedized design philosophy aligns with Mitsubishi Electric’s commitment to industrial-grade reliability — making it a preferred choice for engineers who cannot afford unplanned downtime. For procurement teams managing critical spare-parts inventories, TOPNLMS maintains ready stock of the RD77MS16 with pre-shipment functional testing, a 12-month quality warranty, and expedited global shipping from our Xiamen warehouse.

Rugged Specifications Table

Comprehensive Protection Solutions

The RD77MS16 is the motion intelligence hub within a tightly integrated MELSEC iQ-R control architecture. In a typical industrial control cabinet, it operates alongside the R04CPU or R16CPU PLC module, which handles ladder logic and safety interlocks while the RD77MS16 manages synchronized servo trajectories with microsecond-level precision. Stable DC bus power is delivered by the R61P or R62P power supply module, maintaining voltage integrity even under the fluctuating grid conditions common in heavy industrial facilities.

For distributed I/O expansion across large control panels, the RX40C7 digital input module and RY40NT5P transistor output module extend sensing and actuation reach without compromising scan-cycle determinism. In environments with significant electromagnetic interference — such as near large variable frequency drives or high-current motor starters — the SSCNETIII/H optical fiber servo network used by the RD77MS16 provides inherent immunity to conducted and radiated EMI, a decisive advantage over copper-based motion buses in electrically noisy plants.

Functional safety requirements are addressed through integration with the RD77GF16 safety motion module or the R08SFCPU safety CPU, enabling SIL 2 / PLd architectures for machinery guarding, emergency stop, and safe torque-off (STO) functions. Plant-level communication with SCADA or MES systems is handled via the RJ71GF11-T2 CC-Link IE Field Network module or the RJ71EIP91 EtherNet/IP communication module, ensuring seamless data exchange across the production network. Terminal block modules and relay output modules within the iQ-R ecosystem further consolidate wiring and reduce cabinet footprint — a practical advantage in space-constrained installations where every rail centimeter counts.

Application in Critical Infrastructure

In oil and gas processing facilities, where continuous uptime is non-negotiable and ambient conditions include hydrocarbon vapors, high humidity, and wide temperature swings, the RD77MS16’s robust EMC design and optical servo communication eliminate interference-induced faults that could trigger costly production halts or safety incidents. Its compliance with IEC 61000 EMC standards makes it suitable for deployment near high-power electrical equipment without additional shielding measures.

In mining and mineral processing operations, the module controls multi-axis conveyor positioning systems and ore-sorting machinery exposed to heavy vibration, conductive dust, and corrosive atmospheres. Its IEC 61131-2 vibration and shock compliance ensures mechanical integrity over extended service intervals without requiring frequent recalibration — a critical factor for remote mine sites where maintenance access is limited.

Within power generation and electrical utility infrastructure — including thermal, hydro, and renewable energy plants — the RD77MS16 supports precision positioning of turbine control actuators, valve positioners, and generator alignment systems. Its deterministic SSCNETIII/H communication cycle guarantees motion command execution within microsecond tolerances, critical for grid-synchronization applications where timing errors carry system-wide consequences.

In water and wastewater treatment plants, where pump stations and dosing systems must operate reliably in high-humidity, chemically aggressive environments, the RD77MS16 provides stable multi-axis coordination for filtration carousel drives, sludge dewatering presses, and UV disinfection positioning systems. Its wide operating temperature range and non-condensing humidity tolerance make it suitable for both indoor pump rooms and partially exposed outdoor control enclosures.

The metallurgical and steel industry represents one of the most thermally and electrically hostile environments for any control hardware. Rolling mill drives, continuous casting machines, and ladle transfer cars all demand motion controllers capable of withstanding radiated heat, heavy vibration, and massive electromagnetic fields generated by high-current induction furnaces. The RD77MS16’s optical servo bus and industrial-grade PCB conformal coating provide the necessary resilience for these extreme conditions, supporting uninterrupted production across multi-shift, 24/7 operations.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All RD77MS16 units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Coverage includes manufacturing defects, functional failures under normal operating conditions, and firmware-related malfunctions. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund after technical verification. Each unit is assigned a shipment record and test report for full traceability.

Q2: How is each unit tested before shipment?
Every RD77MS16 module undergoes a pre-shipment functional inspection that includes power-on verification, SSCNETIII/H communication interface loopback testing, and visual inspection for physical integrity. Units sourced from authorized distribution channels are cross-referenced against Mitsubishi Electric’s genuine product identifiers. Test records are available upon request for quality-critical procurement processes.

Q3: Is the RD77MS16 compatible with existing MELSEC iQ-R installations?
Yes. The RD77MS16 is fully compatible with all MELSEC iQ-R Series CPU modules and backplane configurations. It integrates directly with GX Works3 for programming and MT Developer2 for advanced motion parameter configuration. No hardware modifications are required for installation into an existing iQ-R rack. Firmware version alignment with the host CPU is recommended and can be confirmed prior to shipment upon request.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains strategic inventory of high-demand MELSEC iQ-R modules, including the RD77MS16, to support both planned maintenance schedules and emergency breakdown replacements. We offer expedited shipping from our Xiamen, China warehouse to industrial customers globally. For facilities operating critical production lines, we recommend establishing a standing spare-parts agreement to ensure zero-delay access to replacement modules when needed.
