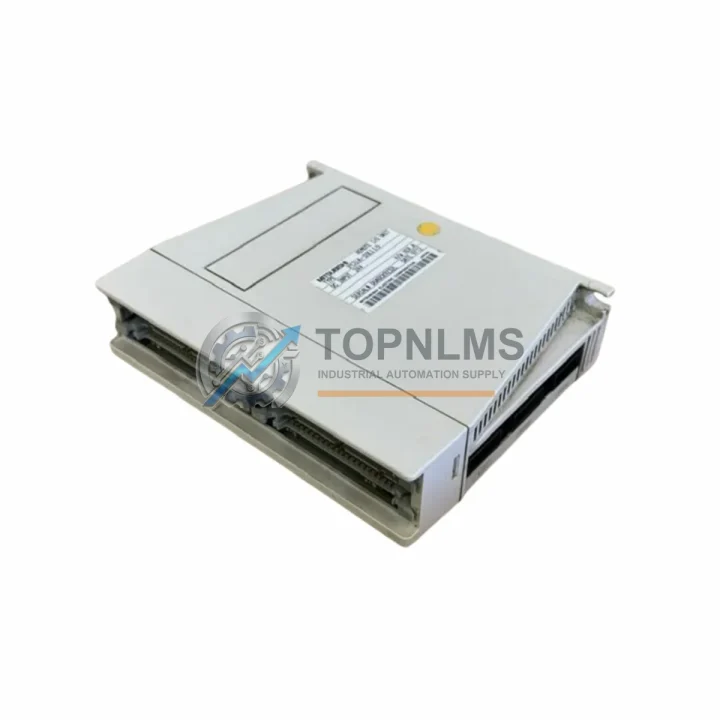

Mitsubishi FCUA-EX10 Ruggedized I/O Module for Harsh Environments

Product Overview

Mitsubishi FCUA-EX10 Ruggedized I/O Module for Harsh Environments

The Mitsubishi Electric FCUA-EX10 is a high-reliability digital I/O expansion module engineered for the MELDAS CNC controller series. Designed to operate continuously in demanding industrial environments — including high-temperature machining floors, high-humidity foundries, dust-laden fabrication shops, and vibration-intensive heavy manufacturing lines — the FCUA-EX10 delivers the signal integrity and channel density that precision CNC systems demand without compromise.

In modern industrial automation architectures, the I/O expansion layer is the nervous system of the control cabinet. The FCUA-EX10 extends the digital I/O capacity of MELDAS-series CNC controllers, enabling machine builders and system integrators to connect a broader range of field devices — including proximity sensors, limit switches, solenoid valves, servo drives, and safety interlocks — while maintaining deterministic scan-cycle performance. Its compact DIN-rail-compatible form factor allows seamless integration into existing control cabinets alongside Mitsubishi Electric servo amplifiers, spindle drives, and power supply units without requiring cabinet redesign.

Industrial environments impose relentless stress on electronic components. The FCUA-EX10 is built to withstand electromagnetic interference (EMI) from variable frequency drives, welding equipment, and high-current bus bars that are common in steel mills, automotive stamping plants, and shipbuilding facilities. Its optically isolated I/O channels suppress transient voltage spikes and ground loops that would otherwise corrupt signal data and trigger nuisance faults in the CNC program. This isolation architecture is critical when the module operates in close proximity to Mitsubishi MR-J series servo amplifiers or FR-A series inverters, both of which generate significant switching noise on shared power rails.

Thermal management is a key design consideration for any module deployed in enclosed control cabinets or near heat-generating spindle motors. The FCUA-EX10 maintains stable operation across its rated temperature range, ensuring that digital I/O states are accurately reported to the MELDAS CNC CPU even during extended production runs at elevated ambient temperatures. This thermal resilience is particularly valued in glass processing, ceramics manufacturing, and metal heat-treatment facilities where cabinet temperatures can rise significantly above standard office-environment ratings.

Vibration and mechanical shock are persistent threats in mining, quarrying, and heavy press operations. The FCUA-EX10’s board-level construction and connector design are qualified to withstand the continuous vibration profiles typical of these environments, reducing the risk of intermittent contact failures that are notoriously difficult to diagnose during production. When paired with Mitsubishi Electric’s FCU8-series CNC main boards and FCUA-series I/O interface units, the module forms a cohesive, vibration-tolerant control architecture that minimizes unplanned downtime.

In safety-critical applications — such as automated transfer lines, robotic welding cells, and multi-axis machining centers — the FCUA-EX10 supports the connection of safety relay modules and emergency-stop circuits through its digital input channels. System integrators frequently deploy it alongside Mitsubishi Electric safety PLCs and GT series HMI panels to create a unified, diagnostics-capable control environment. The module’s deterministic I/O response time ensures that safety-related signals are processed within the CNC’s scan cycle, supporting compliance with machine safety standards applicable to the end-user’s jurisdiction.

For water treatment plants, power generation facilities, and oil and gas processing sites operating continuous production schedules, unplanned CNC downtime carries severe operational and financial consequences. Maintaining a qualified spare of the FCUA-EX10 in the site’s critical-spares inventory is a recognized best practice among reliability engineers. The module’s plug-and-play replacement procedure — requiring no re-parameterization of the CNC controller when swapping a like-for-like unit — minimizes mean time to repair (MTTR) and allows maintenance teams to restore production quickly without specialist CNC programming knowledge.

The FCUA-EX10 is also widely used as a direct replacement in legacy MELDAS 64 and MELDAS C6/C64 installations that are still in active service across the global machine tool installed base. Its continued availability as a genuine Mitsubishi Electric spare part supports long-term maintainability of these platforms, which are prevalent in precision aerospace component machining, mold and die manufacturing, and automotive powertrain production.

Rugged Specifications Table

Comprehensive Protection Solutions

The FCUA-EX10 is most effective when deployed as part of a complete Mitsubishi Electric CNC control architecture. In a typical multi-axis machining center, the module works in concert with the FCU8-MU series CNC main processing unit, which handles interpolation and axis control, while the FCUA-EX10 manages auxiliary machine I/O — coolant control, tool changer interlocks, door safety switches, and chip conveyor signals. The FCUA-DX series drive interface units connect the CNC to MR-J4 series AC servo amplifiers on each controlled axis, and the FCUA-R series remote I/O units extend the I/O network to machine peripherals located away from the main cabinet.

Power integrity is foundational to reliable I/O operation. The FCUA-EX10 is typically powered from a dedicated 24 VDC rail supplied by an industrial DIN-rail power supply unit, isolated from the main servo power bus. This separation prevents voltage sag events — caused by servo amplifier regenerative braking or spindle acceleration — from affecting the logic supply to the I/O module. In installations where power quality is a concern, a line filter or surge protection device on the 24 VDC rail further protects the module and the connected field devices.

Communication between the FCUA-EX10 and the CNC controller is handled through Mitsubishi Electric’s proprietary high-speed serial bus, which provides deterministic, low-latency data exchange consistent with the CNC’s real-time scan cycle requirements. This architecture is fundamentally different from fieldbus-based I/O systems and ensures that the I/O expansion does not introduce latency that could affect axis synchronization or spindle speed control. For installations requiring integration with higher-level SCADA or MES systems, the MELDAS CNC’s Ethernet interface handles plant-network communication independently of the I/O expansion layer.

In safety-instrumented applications, the FCUA-EX10’s digital inputs are used to monitor the status of safety relay modules, light curtains, and two-hand control devices. The module’s fast input response time ensures that safety-related state changes are captured within the CNC scan cycle, supporting the machine’s overall safety response time budget. This is particularly important in robotic tending cells and automated pallet-change systems where personnel access to the machining envelope must be reliably detected and acted upon by the CNC.

Application in Critical Infrastructure

The FCUA-EX10 has a proven service record across a wide range of critical industrial sectors. In the oil and gas industry, CNC-controlled pipe threading machines and valve body machining centers rely on MELDAS-series controllers for their precision and reliability. The FCUA-EX10 manages the auxiliary I/O for these machines — including coolant system control, chip conveyor management, and safety interlock monitoring — in environments where explosive atmospheres and corrosive media demand the highest standards of electrical reliability.

In the power generation sector, turbine blade machining and generator component manufacturing facilities operate MELDAS CNC systems on continuous production schedules. The FCUA-EX10’s ability to maintain reliable I/O operation over extended duty cycles without requiring periodic recalibration or preventive replacement makes it a preferred component in these high-availability environments. Maintenance engineers at these facilities typically maintain a minimum of two qualified spare units per machine to support their rapid-response maintenance protocols.

Mining and mineral processing operations present some of the most challenging environments for electronic control components. High levels of airborne particulate, wide temperature swings between day and night shifts, and the constant vibration of crushing and grinding equipment all stress I/O modules beyond the ratings of standard commercial-grade components. The FCUA-EX10, as a genuine Mitsubishi Electric industrial-grade component, is specified and stocked by maintenance teams at these facilities as a critical spare for their CNC-controlled drilling, boring, and component machining equipment.

In the metallurgical and steel industry, continuous casting and rolling mill control systems frequently incorporate MELDAS CNC controllers for precision roll-gap and tension control. The FCUA-EX10 provides the auxiliary I/O capacity needed to interface these controllers with the mill’s hydraulic systems, cooling water controls, and safety shutdown circuits. Its resistance to the high levels of electromagnetic interference generated by large DC drive systems and induction heating equipment is a key selection criterion in these applications.

Security & Quality FAQ

Q: What does the 12-month warranty cover?
A: Every FCUA-EX10 unit supplied by TOPNLMS is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. If the module fails to perform to its published specifications within the warranty period, we will replace or repair the unit at no charge. The warranty period begins from the date of shipment.

Q: How is each unit tested before shipment?
A: Each FCUA-EX10 undergoes a functional inspection and power-on verification prior to dispatch. Units are checked for physical integrity, connector condition, and basic electrical function. We do not ship units that show signs of damage, corrosion, or prior repair. Our quality process is designed to ensure that the module you receive is ready for immediate installation and commissioning.

Q: Is this module compatible with my existing MELDAS CNC system?
A: The FCUA-EX10 is designed for use with Mitsubishi Electric MELDAS-series CNC controllers, including the MELDAS 64, MELDAS C6, and MELDAS C64 platforms, as well as FCU8-series systems. If you are unsure whether this module is compatible with your specific controller version or machine configuration, please contact our technical team with your CNC model number and we will confirm compatibility before you order.

Q: Can you support long-term supply for ongoing maintenance programs?
A: Yes. TOPNLMS maintains stock of the FCUA-EX10 and other MELDAS-series spare parts to support customers with ongoing maintenance and reliability programs. We can discuss scheduled supply agreements, consignment stock arrangements, and priority allocation for customers with high-volume or time-critical requirements. Contact our sales team to discuss your specific supply needs.
