Mitsubishi E70CB15B Replacement Upgrade for MELDAS 70

Product Overview

Mitsubishi E70CB15B Replacement & Upgrade for MELDAS 70: Seamless Transition from Legacy CNC Systems

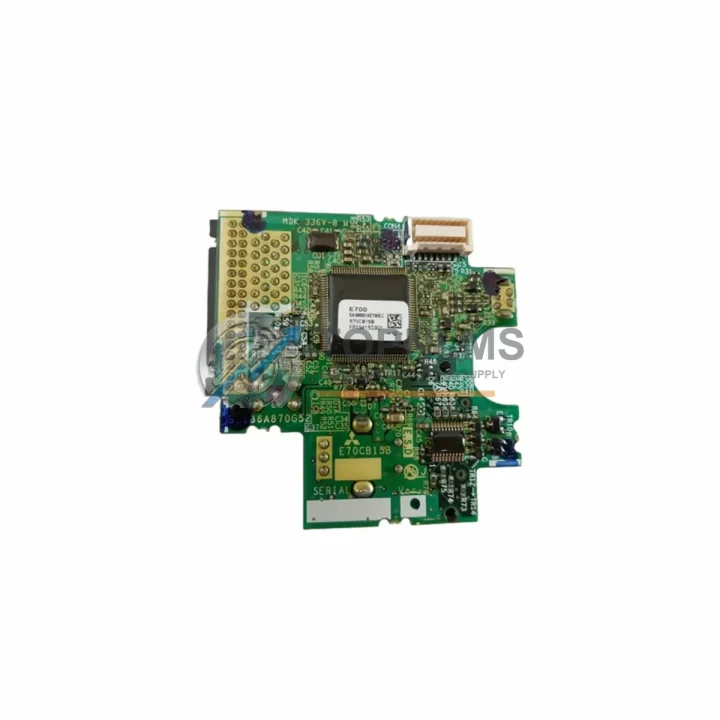

The Mitsubishi Electric E70CB15B is the central CPU motherboard of the MELDAS 70 Series CNC control system, widely deployed across turning centers, machining centers, and multi-axis milling platforms throughout Asia, Europe, and the Americas. As the MELDAS 70 platform approaches end-of-life and spare-part availability tightens, many machine tool operators and maintenance engineers are now sourcing verified replacement boards or planning a structured upgrade path to keep production lines running without costly full-controller replacements.

At TOPNLMS, we stock the E70CB15B as a direct drop-in replacement for failed or degraded CPU motherboards within the MELDAS 70 chassis. Each unit is sourced from authorized supply channels, inspected against Mitsubishi Electric’s original hardware specifications, and shipped with a 12-month warranty. Whether your machine has suffered a sudden CPU fault, a battery-backed RAM failure, or a corrupted boot sequence, the E70CB15B can restore full CNC functionality without requiring a complete controller overhaul.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful E70CB15B board replacement rarely happens in isolation. In practice, maintenance teams working on MELDAS 70 systems often address several interconnected components during the same service window to minimize repeat downtime. The MELDAS 70 power supply module (typically the BN624A987G51 or equivalent) should be inspected and replaced if output voltage ripple is detected, as a degraded PSU is a common root cause of repeated CPU faults. Similarly, the MELDAS 70 I/O interface board handles all machine-side digital signals — limit switches, spindle interlocks, tool change sequences — and a worn connector or cracked PCB trace here can cause intermittent alarms that are often misdiagnosed as CPU failures.

For shops running multi-axis configurations, the MDS-B series servo amplifier modules (such as the MDS-B-SVJ2-03 or MDS-B-V1-03) communicate with the E70CB15B via the SSCNET fiber-optic bus. If the servo amplifier’s SSCNET port is damaged, replacing the CPU board alone will not resolve axis communication errors — both units must be verified. The SSCNET fiber-optic cable assembly itself is another wear item; brittle or contaminated fiber connectors cause intermittent SV alarm codes that can be mistaken for CPU faults.

On the operator interface side, the MELDAS 70 MDI/LCD unit connects to the CPU board via a dedicated flat-ribbon interface. Shops upgrading from an older display unit to a newer MDI panel should confirm connector pinout compatibility before swapping the CPU board. For facilities considering a broader modernization, the Mitsubishi M70 Series controller represents the natural successor platform to the MELDAS 70, sharing similar servo communication architecture while offering expanded program memory, Ethernet connectivity, and improved HMI responsiveness — making it a viable long-term upgrade target once the immediate E70CB15B replacement stabilizes production.

Additional components commonly addressed during MELDAS 70 retrofit projects include the battery backup unit (CR2032 or equivalent lithium cell for SRAM retention), the RS-232C programming cable for parameter upload/download, and the MELDAS 70 backplane or rack assembly if physical damage or corrosion is present on the card-edge connectors. Sourcing these alongside the E70CB15B from a single supplier reduces lead time and simplifies incoming inspection.

Retrofit Guidance FAQ

Q: Do I need to rewrite my CNC machining programs after replacing the E70CB15B?
A: No. Machining programs stored on an external memory card or uploaded via RS-232C are independent of the CPU board hardware. After installing the replacement board, restore your parameter backup and reload programs from your existing storage medium. No G-code or macro rewrite is required.

Q: Will the replacement board work with my existing SSCNET servo amplifiers?
A: Yes. The E70CB15B uses the same SSCNET communication protocol as the original board. Provided your MDS-B or MDS-C series servo amplifiers are functioning correctly, no changes to the servo configuration are needed beyond a standard parameter restore.

Q: How do I back up parameters before removing the old CPU board?
A: Use the RS-232C port with Mitsubishi’s MELDAS parameter backup utility, or use the built-in memory card slot if your machine is equipped with one. Always perform a full parameter dump — including tool offset data, pitch error compensation tables, and macro variables — before powering down.

Q: Is physical installation a direct swap?
A: Yes. The E70CB15B uses the same PCB form factor and connector layout as the original MELDAS 70 CPU board. Power down the controller, discharge static, remove the old board from its backplane slot, seat the replacement, reconnect the battery lead, and restore power. No bracket modifications or wiring changes are required.

Q: What if my machine shows a communication error after replacement?
A: First verify that the SSCNET fiber-optic cables are fully seated and undamaged. Then confirm that servo amplifier axis addresses match the parameter settings on the restored backup. If errors persist, check the I/O interface board for loose connectors before concluding the CPU board is at fault.

Warranty Assurance

Every E70CB15B unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a functional power-on inspection and visual quality check to verify connector integrity, component seating, and absence of physical damage. Should a unit exhibit any defect attributable to manufacturing or handling within the warranty period, TOPNLMS will arrange a replacement or credit — no protracted RMA bureaucracy.

We ship from Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available depending on order volume and urgency. Most in-stock orders are dispatched within 1–2 business days. For urgent production-down situations, please contact us directly to arrange priority handling.

For procurement teams requiring documentation, we can provide a commercial invoice, packing list, and certificate of conformity. Bulk orders and standing purchase agreements are welcome — contact our sales team to discuss pricing and lead-time commitments.
