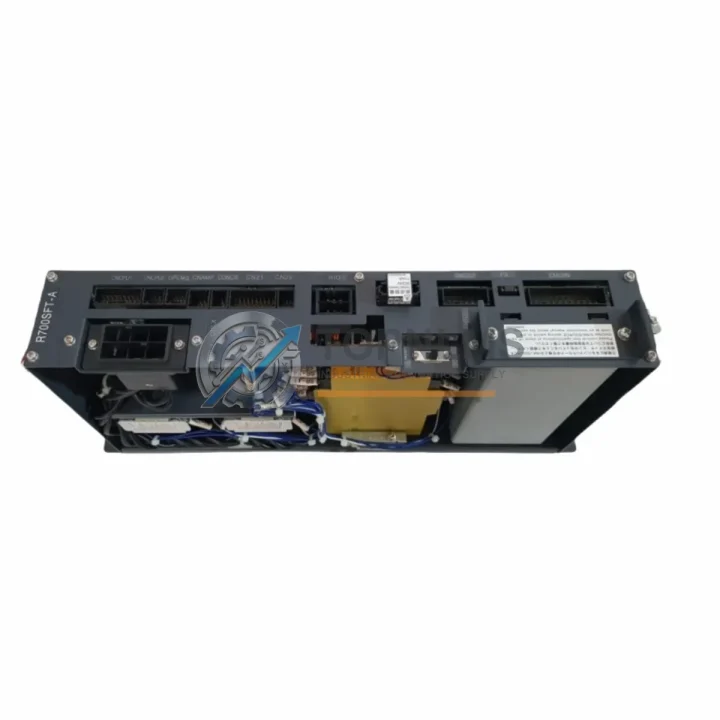

Mitsubishi R700SFT-A Ruggedized AC Servo Amplifier Module

Product Overview

Mitsubishi R700SFT-A Ruggedized AC Servo Amplifier Module: Industrial Resilience for Harsh Environments

The Mitsubishi Electric R700SFT-A is a high-performance AC Servo Amplifier from the MELSERVO-J4 Series, engineered to deliver precise motion control and sustained reliability in the most demanding industrial environments. Whether deployed on continuous production lines, heavy-duty manufacturing floors, or safety-critical infrastructure, the R700SFT-A is built to perform where standard drives fail — in conditions defined by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI).

Designed as a direct-drive servo amplifier for three-phase AC servo motors, the R700SFT-A integrates seamlessly into Mitsubishi Electric’s broader automation ecosystem. Its ruggedized construction and advanced control algorithms make it a preferred choice for engineers specifying motion control solutions in oil and gas, mining, power generation, water treatment, metallurgy, and heavy process industries.

Rugged Specifications Table

Comprehensive Protection Solutions

The R700SFT-A does not operate in isolation — it is the motion control backbone of a broader, integrated automation architecture. In a typical control cabinet deployment, it works in concert with a Mitsubishi MELSEC iQ-R Series PLC (such as the R04CPU or R08CPU) acting as the system controller, issuing high-speed position commands over the SSCNET III/H optical bus. The servo amplifier receives these commands with sub-millisecond cycle times, enabling synchronized multi-axis motion across gantry systems, robotic arms, and precision indexing tables.

For power conditioning and protection, the R700SFT-A is typically paired with a Mitsubishi FR-D700 or FR-A800 Series Variable Frequency Drive on adjacent motor circuits, ensuring that inrush currents and harmonic disturbances on the AC bus do not compromise servo performance. Upstream, a Mitsubishi NF-series Molded Case Circuit Breaker (MCCB) provides short-circuit and overload protection, while a Mitsubishi NV-series Earth Leakage Circuit Breaker guards against ground faults in wet or chemically aggressive environments.

On the I/O side, the system integrates Mitsubishi MELSEC iQ-R I/O modules — including digital input modules (RX40C7) and digital output modules (RY40NT5P) — to handle field-level signals from proximity sensors, limit switches, and safety interlocks. These I/O modules communicate over the high-speed MELSECNET/H or CC-Link IE Field network, ensuring deterministic data exchange even in electrically noisy environments.

Safety is enforced at the system level through a Mitsubishi Safety CPU Module (R6SFM) and dedicated Safety I/O Modules, which monitor the STO input of the R700SFT-A and can command a safe stop state within the IEC 62061 SIL 2 / ISO 13849 PLd safety integrity framework. Communication between the safety controller and field devices is handled via CC-Link IE Safety protocol, eliminating the need for hardwired safety relay chains in complex multi-axis systems.

Terminal connectivity within the control cabinet is managed through Mitsubishi-compatible DIN-rail terminal blocks and shielded servo cables (MR-J3BUS series), which are specifically rated for continuous flexing in cable track applications. For remote diagnostics and predictive maintenance, the R700SFT-A’s built-in MR Configurator2 interface allows engineers to monitor drive health, tune gain parameters, and log fault histories without interrupting production.

Application in Critical Infrastructure

In oil and gas upstream operations, the R700SFT-A drives precision pump jacks and wellhead control actuators where unplanned downtime translates directly into lost production revenue. Its STO safety function ensures that servo axes can be de-energized instantly upon detection of a hazardous condition — without requiring a full system shutdown — satisfying the functional safety requirements of IEC 61511 process safety standards.

In underground mining and mineral processing, the amplifier’s vibration resistance (0.6G continuous) and wide operating temperature range make it suitable for conveyor drive systems, ore crusher positioning mechanisms, and ventilation damper actuators. The sealed control cabinet installation (IP20 module within IP54/IP65 enclosures) protects the drive electronics from coal dust, silica particulates, and corrosive mine atmosphere.

In power generation and grid infrastructure, the R700SFT-A is deployed in turbine blade pitch control systems, valve actuator drives, and generator excitation positioning systems. Its SSCNET III/H optical communication eliminates copper-conductor EMI susceptibility — a critical advantage in high-voltage switchyard environments where electromagnetic fields from bus bars and transformers can disrupt conventional copper-based fieldbus systems.

In water and wastewater treatment facilities, the amplifier controls precision dosing pump drives, filter press positioning systems, and sluice gate actuators. Its non-condensing humidity tolerance (up to 90% RH) and corrosion-resistant housing make it reliable in the persistently damp, chemically active atmosphere of treatment plant motor control centers (MCCs).

In metallurgy and steel production, the R700SFT-A drives rolling mill positioning systems, ladle transfer car drives, and continuous casting mold oscillation mechanisms — applications where thermal cycling, radiated heat from molten metal, and intense mechanical shock demand the highest levels of servo amplifier robustness and thermal management.
