Mitsubishi L60ADIL8-CM Replacement for MELSEC-L Series

Product Overview

Mitsubishi L60ADIL8-CM Replacement for MELSEC-L Series: Smooth Migration & Backward-Compatible Upgrade

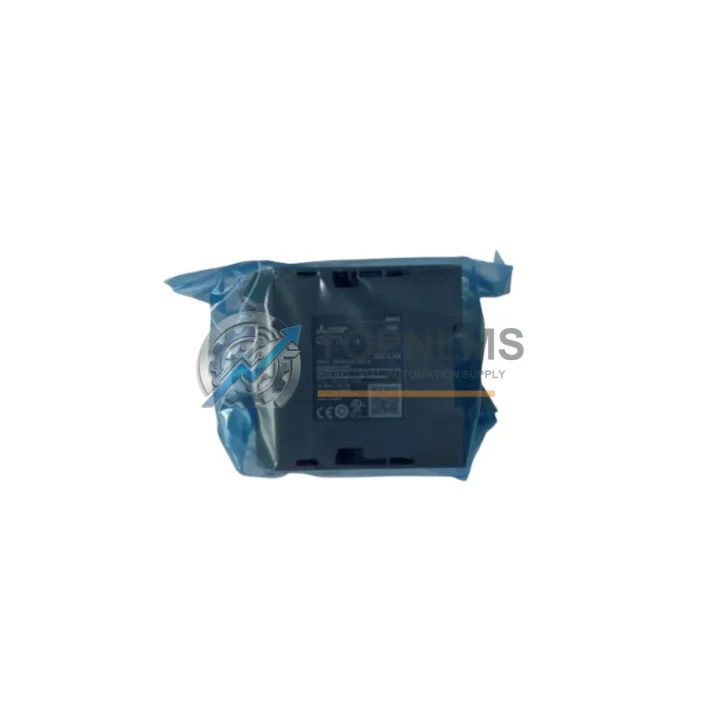

The Mitsubishi Electric L60ADIL8-CM is an 8-channel isolated analog input module designed for the MELSEC-L Series programmable logic controller platform. As industrial facilities transition away from aging MELSEC-Q Series, MELSEC-A Series, or third-party DCS analog input cards, the L60ADIL8-CM offers a technically sound, cost-effective migration path that preserves existing wiring infrastructure, minimizes reprogramming effort, and reduces unplanned downtime during cutover.

At TOPNLMS, we stock the L60ADIL8-CM for immediate dispatch from our Xiamen warehouse. Each unit undergoes pre-shipment functional verification, and all orders are covered by a 12-month replacement warranty. Whether you are executing a planned system upgrade or responding to an emergency spare-parts shortage, our team can confirm availability, provide technical documentation, and arrange same-day shipping on confirmed orders.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the L60ADIL8-CM rarely involves a single module swap. In practice, engineers replacing a Q64AD or a legacy DCS analog input card will also need to evaluate the surrounding system architecture. The L-Series base unit — typically an L33B or L55B — must be confirmed for slot availability and backplane power budget before the L60ADIL8-CM is installed. If the existing control cabinet was built around a MELSEC-Q rack, the migration plan should include a compatible L26CPU-BT CPU module or L02CPU as the new controller core, since the L-Series CPU governs I/O refresh cycles and determines the maximum number of mountable analog modules.

On the power supply side, the L61P (5 VDC / 5 A) or L62P (5 VDC / 8 A) power supply module must be sized to accommodate the additional current draw of the L60ADIL8-CM alongside any co-installed digital I/O modules such as the LX40C6 input module or LY40NT5P transistor output module. Undersized power supplies are a common cause of intermittent faults during post-migration commissioning and should be recalculated before cutover.

Field wiring from existing 4–20 mA transmitters — pressure sensors, flow meters, temperature transmitters — can typically be reused without re-pulling cables, provided the terminal block adapter is correctly specified. The A6TBXY36 or equivalent terminal block conversion adapter simplifies the transition from Q-Series wiring harnesses to the L-Series 18-point connector format. For installations where signal integrity is critical, inline signal isolators or surge protection modules should be inserted between field instruments and the L60ADIL8-CM input terminals, particularly in environments with long cable runs or high electromagnetic interference.

Communication protocol continuity is another key migration consideration. If the legacy system used CC-Link or MELSEC-NET/H for distributed I/O communication, the L-Series platform supports these protocols through dedicated communication modules such as the LJ71C24 serial communication module or the LJ71GF11-T2 CC-Link IE Field module. Confirming that the new L-Series network configuration matches the existing SCADA or HMI polling structure — whether the HMI is a GOT2000 Series GT2710 or a third-party panel PC — prevents address mapping errors that would otherwise require extensive ladder logic revision.

For sites performing a phased migration rather than a full cutover, the L60ADIL8-CM can be commissioned in parallel with the legacy system using a temporary programming cable (USB-SC09-FX or SC-09) connected to a laptop running GX Works2. This allows engineers to verify analog scaling, channel offset calibration, and alarm threshold settings before the legacy system is taken offline, significantly reducing the risk window during the final switchover.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring from a Q64AD installation?
A: Yes, in most cases. The 4–20 mA and voltage signal wiring from field instruments is electrically compatible. You will need a terminal block adapter to match the Q-Series 40-pin connector to the L-Series 18-point terminal block. Verify wire gauge and shield grounding practices against the L60ADIL8-CM hardware manual before reconnecting.

Q: Do I need to rewrite my GX Developer ladder program for GX Works2?
A: Partial rewrite is typically required. GX Works2 can import GX Developer projects, but analog module buffer memory addresses differ between Q-Series and L-Series modules. The FROM/TO instructions referencing Q64AD buffer memory must be remapped to the L60ADIL8-CM address map. TOPNLMS can provide the relevant hardware manual and buffer memory mapping table upon request.

Q: Is the L60ADIL8-CM compatible with CC-Link distributed I/O networks?
A: The L60ADIL8-CM is a local bus module and mounts directly on the L-Series base unit. It does not function as a CC-Link remote I/O station. If your architecture requires remote analog input over CC-Link, consider the AJ65VBTCU-68ADNI or equivalent CC-Link remote analog module in conjunction with the LJ61BT11 CC-Link master module on the L-Series CPU base.

Q: How much panel space does the L60ADIL8-CM require compared to a Q-Series module?
A: The L-Series form factor is more compact than the Q-Series. The L60ADIL8-CM occupies one slot on an L-Series base unit. If you are migrating from a Q-Series rack, the overall footprint of the new L-Series system will typically be smaller, which may allow consolidation of control cabinet space or addition of future expansion modules.

Q: What commissioning steps are required after installation?
A: After physical installation and wiring, use GX Works2 to set the input range for each channel (current or voltage), configure the averaging method (time/count), and verify the digital output values against known process signals. Perform a loop check on each channel with a calibrated signal source before switching to automatic control mode.

Warranty Assurance

Every L60ADIL8-CM shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Our pre-shipment inspection process includes power-on functional testing, channel-by-channel signal verification, and visual inspection for physical damage. Units that fail any inspection criterion are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit dispatch within 3 business days of claim confirmation. We do not require the defective unit to be returned before dispatching the replacement for verified warranty cases, minimizing your production downtime. Our after-sales team is reachable via email at [email protected] or by phone at +86 18359293191 during business hours (GMT+8).

For bulk procurement, system integrators, and OEM customers, TOPNLMS offers extended warranty options, consignment stock arrangements, and priority dispatch agreements. Contact our sales team to discuss terms tailored to your project timeline and inventory requirements.
