Mitsubishi FX2N-4DA Original Industrial Spare FX2N Compatible

Product Overview

Mitsubishi FX2N-4DA Original Industrial Spare: System Stability & Maintenance Value

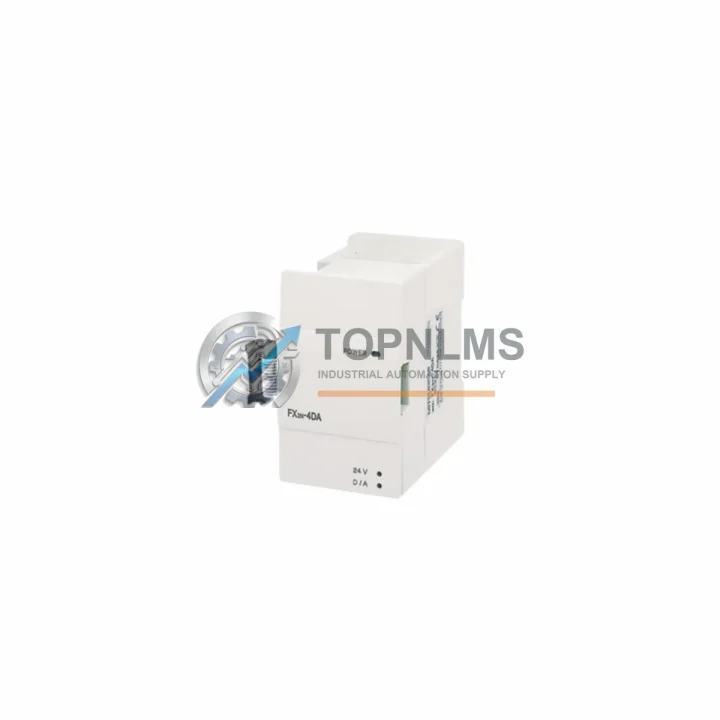

The Mitsubishi Electric FX2N-4DA is a 4-channel analog output expansion module designed for the MELSEC FX2N series programmable logic controller platform. As an original industrial spare part, it plays a critical role in maintaining continuous, stable analog signal output across process control, motion coordination, and variable-speed drive applications in manufacturing environments. Whether you are managing a scheduled shutdown, responding to an unplanned fault, or building a strategic spare parts inventory, the FX2N-4DA is a high-priority component that directly impacts system uptime and production continuity.

In modern industrial facilities, analog output modules are among the most operationally sensitive components in a PLC cabinet. Signal drift, channel failure, or module degradation can cause erratic actuator behavior, process deviations, or complete line stoppages. Stocking a verified original FX2N-4DA eliminates the risk of extended lead times during critical failures and ensures that your MELSEC FX2N system can be restored to full specification without compromise.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance program for any MELSEC FX2N-based control system must account for the interdependencies between the analog output module and the broader electrical architecture of the control cabinet. When inspecting or replacing the FX2N-4DA, maintenance engineers should simultaneously evaluate the condition of adjacent components to avoid repeat shutdowns and maximize the value of each planned maintenance window.

Begin with the FX2N-4AD analog input module, which typically operates in tandem with the 4DA in closed-loop control configurations. A degraded input module can mask analog output faults or introduce calibration errors that appear to originate from the output side. During the same inspection cycle, verify the integrity of the FX2N-1PG or FX2N-10PG pulse output modules if the system coordinates motion or positioning tasks alongside analog process control.

The FX2N-32MR or FX2N-64MR main CPU unit should be checked for firmware version compatibility and battery status, as a depleted backup battery can corrupt program memory and affect analog output scaling parameters stored in data registers. The FX2N-8EX and FX2N-8EYR digital I/O expansion modules in the same rack should be inspected for terminal corrosion and relay contact wear, particularly in high-cycle applications.

Wiring integrity between the FX2N-4DA output terminals and downstream devices — such as variable frequency drives, proportional valves, or servo amplifiers — is a common source of signal degradation. Inspect shielded signal cables for insulation damage, verify terminal block torque on the FX2N-CNV-BD or equivalent connector boards, and confirm that cable shields are grounded at a single point to prevent ground loop interference. If the system uses a FX2N-232-BD or FX2N-485-BD communication board for SCADA or HMI connectivity, verify communication parameters and cable continuity as part of the same inspection.

For facilities operating legacy MELSEC FX2N systems beyond their original design life, it is advisable to maintain a minimum buffer stock of the FX2N-4DA, FX2N-4AD, and the main CPU module. These three components represent the highest failure-risk items in an aging FX2N rack and account for the majority of unplanned downtime events in extended-life deployments. Proactive stocking of these modules, along with the associated FX2N-1HC high-speed counter module where applicable, significantly reduces mean time to repair (MTTR) and supports continuous production without dependency on spot-market procurement.

Strategic Replacement Solutions

The FX2N-4DA is a direct replacement for any failed or end-of-life analog output module within the MELSEC FX2N expansion bus. Because it connects via the standard FX2N right-side expansion interface, field replacement requires no rewiring of the main PLC backplane — only the analog output terminal wiring needs to be transferred to the new module. This plug-and-play compatibility dramatically reduces replacement time compared to cross-platform migrations and eliminates the need for program modifications in most standard configurations.

For facilities that have already transitioned portions of their control infrastructure to the MELSEC iQ-F (FX5U) platform, the FX2N-4DA can continue to serve as a reliable output module in legacy FX2N sub-systems that are not yet scheduled for full migration. This hybrid approach — maintaining original spare parts for legacy nodes while upgrading primary controllers — is a cost-effective strategy for extending system life without committing to a full capital expenditure cycle.

When sourcing replacement modules, it is essential to verify that the unit is an original Mitsubishi Electric product with traceable manufacturing provenance. Counterfeit or refurbished modules may pass initial power-on tests but exhibit premature failure under thermal cycling or high-duty-cycle conditions. Every FX2N-4DA shipped from TOPNLMS undergoes pre-shipment functional verification and is supplied with original packaging and documentation where available.

All units are covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, replacement or repair is processed with priority handling to minimize impact on production schedules. Units are dispatched with full inspection records and are available for express shipping to support emergency maintenance requirements.

Support FAQ

Q1: Is this FX2N-4DA an original Mitsubishi Electric product?
Yes. All FX2N-4DA units listed on TOPNLMS are original Mitsubishi Electric industrial components. Each unit is sourced through verified supply channels and undergoes pre-shipment inspection. We do not supply refurbished, remanufactured, or third-party substitute modules.

Q2: What is the warranty coverage and how are claims handled?
Every FX2N-4DA is covered by a 12-month warranty from the date of shipment. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions. Claims are handled directly by TOPNLMS with priority processing. Contact [email protected] to initiate a warranty claim.

Q3: Can the FX2N-4DA be used as a direct field replacement without program changes?
In the majority of standard FX2N configurations, yes. The FX2N-4DA connects via the standard right-side expansion bus and uses the same buffer memory mapping as the original module. Replacement requires only re-termination of analog output wiring. If the original module used non-default scaling or special function register configurations, verify data register settings in the PLC program before returning the system to service.

Q4: How should I plan my spare parts inventory for an aging MELSEC FX2N system?
For systems operating beyond 8–10 years, we recommend maintaining at least one spare FX2N-4DA alongside the FX2N-4AD and the main CPU module. These components have the highest failure probability in extended-life deployments. For critical production lines, a two-unit buffer stock of the FX2N-4DA is advisable to cover both immediate replacement and a secondary failure during the replenishment lead time. Contact our team for volume pricing on multi-unit spare parts packages.
