Mitsubishi FX2N-4AD-PT Replacement for FX2N Series

Product Overview

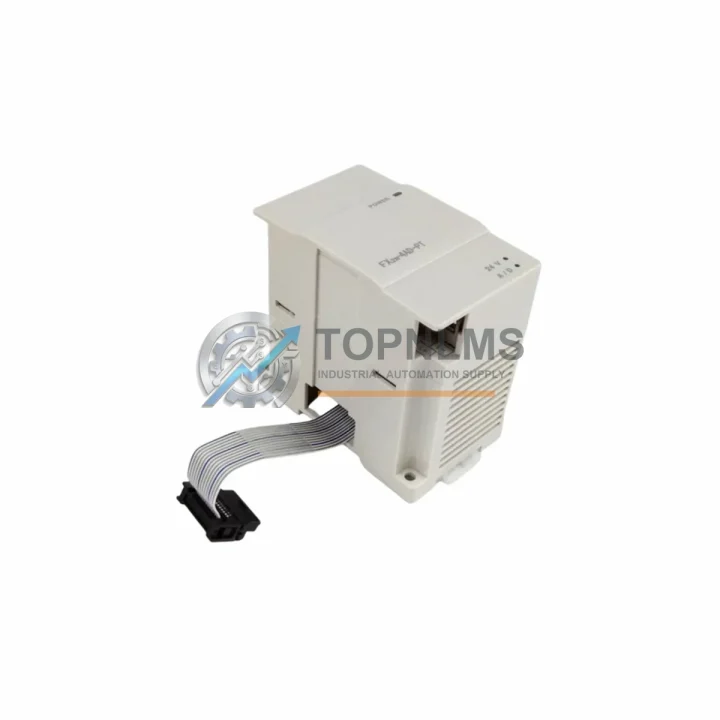

Mitsubishi FX2N-4AD-PT Replacement for FX2N Series: Seamless RTD Analog Upgrade

When your existing Mitsubishi FX2N-4AD-PT RTD analog input module reaches end-of-life or fails in the field, every hour of unplanned downtime translates directly into production loss. The FX2N-4AD-PT is a 4-channel PT100/PT1000 RTD temperature input module designed for the FX2N programmable logic controller platform — a series that remains deeply embedded in manufacturing lines, HVAC control panels, food processing equipment, and building automation systems worldwide. As Mitsubishi Electric has progressively phased out FX2N-series hardware in favor of the FX5U and iQ-F platform, sourcing genuine replacement units has become increasingly difficult through standard distribution channels.

TOPNLMS maintains verified stock of the FX2N-4AD-PT and its compatible alternatives, enabling plant engineers and maintenance teams to execute a controlled replacement or system migration without rewriting core ladder logic or redesigning the control cabinet. Whether you are performing a like-for-like swap on a running production line or planning a phased migration to a newer FX5U-based architecture, this guide covers the compatibility considerations, wiring requirements, communication protocol continuity, and procurement assurances you need to make a confident purchasing decision.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FX2N-4AD-PT replacement rarely happens in isolation. In most retrofit scenarios, the module sits alongside a broader ecosystem of FX2N-series hardware that must be evaluated for compatibility or co-replaced during the same maintenance window.

The FX2N main unit itself — whether a FX2N-32MR, FX2N-48MT, or FX2N-64MR — is the host controller that the 4AD-PT connects to via the special function bus. If the CPU is also approaching end-of-life, engineers often choose to migrate the entire rack to an FX3U or FX5U platform at the same time, using the FX5-CNV-BUS conversion adapter to retain existing FX2N special function modules during a phased transition. This approach avoids a full I/O rewire while allowing the new CPU to run modernized structured text or function block programs alongside legacy ladder logic.

On the analog output side, the FX2N-4DA analog output module is frequently installed in the same cabinet as the 4AD-PT, providing closed-loop temperature control by driving heaters, valves, or variable-speed drives. When replacing the 4AD-PT, it is good practice to inspect the 4DA simultaneously, as both modules share the same bus and age at similar rates. Similarly, the FX2N-2AD two-channel analog input module may be present for non-RTD voltage or current signals and should be verified for firmware and bus compatibility.

Communication continuity is another critical factor. Many FX2N installations use the FX2N-485-BD RS-485 communication board or the FX2N-232-BD RS-232C board for SCADA connectivity, Modbus RTU polling, or HMI communication. These boards plug directly into the FX2N CPU and are unaffected by a special function module swap, but they must be confirmed operational before the replacement module is commissioned. If the site uses a GOT1000 or GOT2000 series HMI — such as a GT1055-QSBD or GT2107-WTSD — the temperature display screens referencing BFM data from the 4AD-PT will continue to function without modification, since the BFM address map is preserved in the replacement module.

For installations where the FX2N-4AD-PT feeds temperature data into a broader process control loop managed by a Q-series or iQ-R series PLC via CC-Link, the FX2N-16CCL-M CC-Link master module may also be present in the FX2N rack. Replacing the 4AD-PT in this configuration requires verifying that the CC-Link station count and BFM refresh cycle remain within the master module’s scan time budget. In most cases, a direct module swap introduces no additional latency.

Finally, if the retrofit scope includes upgrading the power supply, the FX2N-1PS-5V auxiliary power supply module should be checked to ensure it can sustain the combined 5 VDC bus load of all special function modules after the replacement. This is particularly relevant when additional I/O expansion modules such as the FX2N-8EX or FX2N-8EYR are also being added during the same upgrade window.

Retrofit Guidance FAQ

Q: Do I need to rewire the RTD sensors when replacing the FX2N-4AD-PT?
A: No. The replacement module uses the same 3-wire RTD terminal block layout as the original FX2N-4AD-PT. PT100 and PT1000 sensors connect to the same terminal positions (V+, I+, COM per channel). No rewiring is required for a like-for-like swap.

Q: Will my existing ladder logic (FROM/TO instructions) still work?
A: Yes. The replacement module preserves the identical BFM address map (BFM #0–#29). All existing FROM/TO read instructions referencing the module’s unit number will function without modification. No GX Works2 or GX Developer program changes are needed.

Q: Is the module compatible with FX3U or FX5U controllers?
A: The FX2N-4AD-PT is natively compatible with FX2N and FX2NC CPUs. For FX3U/FX3UC, it can be used with the FX2N-CNV-BC bus conversion adapter. For FX5U migration, Mitsubishi recommends the FX5-4AD-PT dedicated adapter module; however, the FX2N-4AD-PT can be retained during a phased migration using the FX5-CNV-BUS interface unit.

Q: What communication protocols does this module support?
A: The FX2N-4AD-PT communicates with the CPU via the FX2N proprietary special function bus — not Ethernet, Modbus, or PROFIBUS. SCADA and HMI communication is handled by separate communication boards (FX2N-485-BD, FX2N-232-BD) on the CPU, which are unaffected by this module replacement.

Q: How much physical space does the module occupy in the control cabinet?
A: The FX2N-4AD-PT occupies the same DIN rail footprint as the original module. No cabinet modification or additional rail space is required for a direct replacement. If migrating to an FX3U-4AD-PT-ADP adapter-type module, note that adapter modules mount differently and require additional planning.

Q: Can I test the module before installation?
A: Yes. Each unit shipped by TOPNLMS undergoes pre-shipment functional testing. You can also bench-test the module by connecting it to an FX2N CPU with a short ladder program using FROM instructions to read BFM #0–#3 (channel 1–4 temperature values) and verify sensor readings before installing it in the production cabinet.

Warranty Assurance

Every FX2N-4AD-PT unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. This warranty covers functional defects, communication failures, and channel-level measurement errors under normal operating conditions. Prior to dispatch, each module undergoes a documented pre-shipment inspection that verifies bus communication integrity, all four RTD input channels, power consumption within specification, and terminal block continuity.

If a unit develops a fault within the warranty period, TOPNLMS provides a replacement dispatch within 3 business days of fault confirmation, with no requirement to return the defective unit before the replacement is shipped in most cases. Our after-sales response team is reachable via email and phone for technical commissioning support, wiring queries, and compatibility verification — at no additional charge during the warranty period.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with HS code declaration for customs clearance. Units are shipped from Xiamen, China via DHL Express, FedEx International Priority, or sea freight depending on order volume and urgency. Lead time for in-stock units is typically 1–3 business days for express shipments.

For volume orders, OEM replacement programs, or standing purchase agreements, please contact our sales team directly to discuss pricing, lead time guarantees, and consignment stock arrangements.
