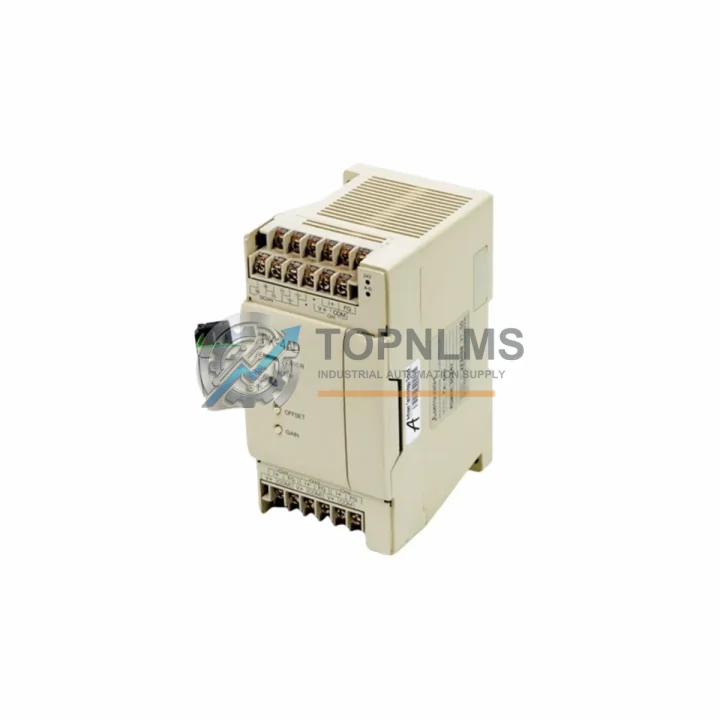

Mitsubishi FX-4AD Ruggedized Analog Input Module

Product Overview

Mitsubishi FX-4AD Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The Mitsubishi Electric FX-4AD is a high-precision, ruggedized analog input module engineered for the MELSEC FX Series programmable logic controller platform. Designed to deliver unwavering signal accuracy in the most demanding industrial environments — including high-temperature process lines, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing floors — the FX-4AD is a mission-critical component trusted by automation engineers worldwide.

With four independent analog input channels supporting both voltage (0–10 V DC, ±10 V DC) and current (4–20 mA, 0–20 mA) signal types, the FX-4AD provides 12-bit resolution conversion with exceptional linearity and noise immunity. Its compact DIN-rail-mountable form factor integrates seamlessly into the MELSEC FX2N, FX3U, FX3G, and FX3UC base units, making it the preferred analog front-end for process control, condition monitoring, and closed-loop feedback applications across critical infrastructure sectors.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated MELSEC FX control architecture, the FX-4AD analog input module operates in close coordination with a range of complementary automation components to ensure system-wide reliability and safety. The FX3U-32MR/ES main CPU unit serves as the processing backbone, executing ladder logic and managing I/O expansion while the FX-4AD feeds real-time analog process values — such as temperature, pressure, flow rate, and level — directly into the control loop.

For digital I/O expansion in the same control cabinet, the FX2N-16EX input expansion module and FX2N-16EYR relay output module extend the system’s field connectivity without compromising scan cycle performance. When analog output control is required — for example, to drive variable-speed drives or proportional control valves — the FX-4DA analog output module pairs directly with the FX-4AD to form a complete closed-loop process control solution.

Communication integrity is maintained through the FX3U-485ADP-MB Modbus RTU communication adapter, enabling the MELSEC FX system to interface with SCADA platforms, HMI panels, and third-party field devices over RS-485 networks. In installations requiring PROFIBUS DP connectivity, the FX3U-64DP-M PROFIBUS master module provides deterministic fieldbus communication to distributed I/O nodes and intelligent field instruments.

Power supply stability — a prerequisite for accurate analog signal conversion — is ensured by the Mitsubishi Electric Q61P-series or equivalent 24 V DC industrial power supply units, which deliver clean, regulated power to the FX main unit and its expansion modules. Surge protection and EMI filtering at the cabinet entry point, using DIN-rail-mounted surge protective devices and line filters, further safeguard the FX-4AD’s sensitive analog front-end circuitry from transient voltage spikes common in heavy industrial environments.

For safety-critical applications, the FX-4AD is often deployed alongside Mitsubishi Electric FR-A800 series variable frequency drives, where it monitors motor load current or process feedback signals and feeds corrective data to the PLC for adaptive speed control. Terminal block modules such as the FX-TB wiring terminal board simplify field wiring connections to the FX-4AD’s analog input terminals, reducing installation errors and improving long-term maintainability in harsh-environment control panels.

Application in Critical Infrastructure

The FX-4AD has established a proven track record across the world’s most demanding industrial sectors. In oil and gas upstream and midstream facilities, it monitors wellhead pressure transmitters and flow meters, providing the MELSEC FX PLC with the real-time analog data needed to manage pump control, pipeline pressure regulation, and emergency shutdown sequences. Its photocoupler-isolated input channels prevent ground loop interference — a persistent challenge in long-cable field installations across remote oil fields.

In coal and metal mining operations, the FX-4AD is installed in conveyor drive control panels and ventilation management systems, where it processes 4–20 mA signals from belt load cells, gas sensors, and airflow transmitters. The module’s vibration and shock resistance ratings ensure continuous operation despite the mechanical stress inherent to underground and open-pit mining environments.

At power generation facilities — including thermal, hydroelectric, and renewable energy plants — the FX-4AD supports turbine governor control, transformer temperature monitoring, and auxiliary system automation. Its wide operating temperature range and EMI immunity make it suitable for installation in switchgear rooms and generator control panels where electromagnetic interference levels are elevated.

In municipal water treatment and wastewater management plants, the FX-4AD processes signals from pH sensors, dissolved oxygen probes, turbidity meters, and chemical dosing flow meters. The module’s high-resolution 12-bit conversion ensures precise chemical dosing control, directly contributing to regulatory compliance and public safety outcomes.

Metallurgical and steel production facilities rely on the FX-4AD for furnace temperature profiling, rolling mill tension control, and cooling water flow monitoring. Operating continuously in environments with ambient temperatures approaching the module’s upper limit and with significant airborne particulate contamination, the FX-4AD’s robust construction and sealed terminal design maintain measurement accuracy over extended production campaigns without requiring frequent recalibration.

Security & Quality FAQ

Q1: What warranty coverage is provided with the FX-4AD?
Every FX-4AD unit supplied by TOPNLMS carries a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. In the event of a confirmed defect within the warranty period, we provide full replacement or repair at no additional cost. Warranty claims are processed promptly to minimize your plant downtime.

Q2: How is each unit tested before shipment?
All FX-4AD modules undergo pre-shipment functional verification, including analog input channel accuracy checks across voltage and current input ranges, isolation integrity testing, and communication handshake verification with a compatible MELSEC FX base unit. Units that do not meet Mitsubishi Electric’s original factory specifications are quarantined and not dispatched. A test report is available upon request for critical procurement projects.

Q3: Is the FX-4AD compatible with all MELSEC FX series base units?
The FX-4AD is compatible with the FX2N, FX3U, FX3G, and FX3UC series main units. It is not compatible with the FX1S or FX0N series due to bus architecture differences. If you are integrating the FX-4AD into an existing FX system, please confirm your base unit model before ordering. Our technical team can assist with compatibility verification at no charge.

Q4: Can TOPNLMS support long-term and repeat supply of the FX-4AD?
Yes. TOPNLMS maintains dedicated stock of the FX-4AD and other MELSEC FX series expansion modules to support both immediate replacement needs and planned maintenance procurement programs. We offer stable, long-term supply agreements for industrial customers requiring guaranteed availability of critical spare parts. Orders are typically dispatched within 1–3 business days, with express shipping options available for urgent plant maintenance requirements.
