Mitsubishi FCA-335M Replacement/Upgrade Solution for FCA Series

Product Overview

Mitsubishi FCA-335M Replacement/Upgrade Solution for FCA Series: Seamless Transition from Legacy CNC Systems

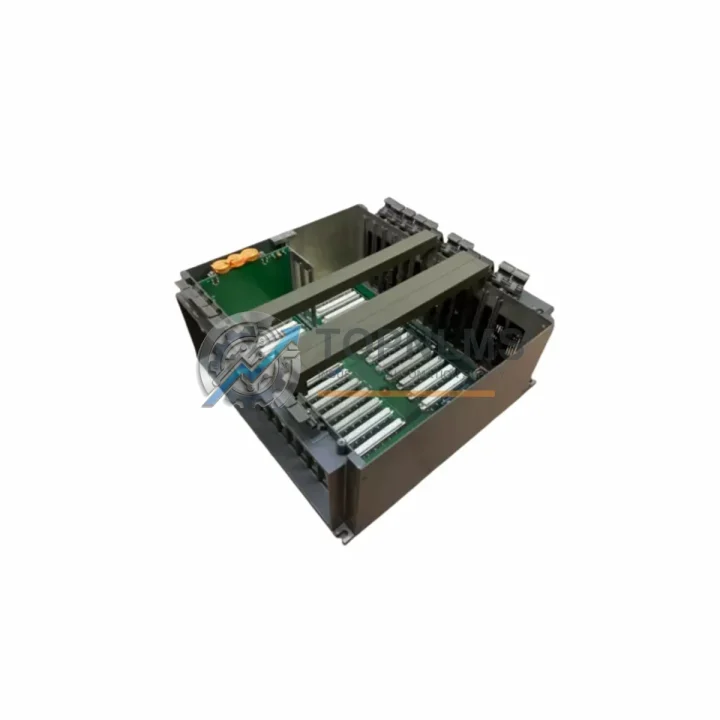

The Mitsubishi Electric FCA-335M is a core CNC controller module within the FCA Series platform, widely deployed across precision machining centers, turning centers, and multi-axis milling systems throughout Asia, Europe, and the Americas. As Mitsubishi Electric progressively phases out legacy FCA Series hardware in favor of the M800/M80 Series CNC architecture, many facilities operating FCA-335M-based control systems now face an urgent need for a reliable, drop-in compatible replacement or a structured upgrade path that minimizes production downtime and preserves existing wiring infrastructure.

TOPNLMS maintains verified stock of the FCA-335M module and provides full technical support for both direct replacement and system migration scenarios. Whether your facility requires an identical spare to restore a failed axis controller, or your engineering team is planning a phased retrofit from the FCA platform to a current-generation Mitsubishi CNC system, this listing covers both procurement and integration requirements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FCA-335M replacement or migration project rarely involves a single module in isolation. In practice, the FCA-335M operates as the central processing unit within a broader control architecture that includes several interdependent components, all of which must be evaluated during any retrofit or spare-parts procurement exercise.

For facilities performing a direct like-for-like replacement, the FCA-335M typically interfaces with the FCU6-DX Series I/O expansion modules, which handle discrete input/output signals from the machine tool’s limit switches, proximity sensors, and solenoid valves. These I/O modules connect to the FCA-335M via the internal FCA rack backplane, and their slot assignments must be preserved exactly during module swap to avoid re-mapping the ladder logic in the PMC program.

The servo axis control signals from the FCA-335M are routed to MDS-A Series or MDS-B Series AC servo amplifiers, which drive the X, Y, Z, and optional 4th-axis servo motors. When replacing the FCA-335M, it is critical to verify that the SSCNET cable connections between the controller and the first servo amplifier in the chain remain intact and that the axis parameter files — stored on the FCA-335M’s internal SRAM or battery-backed memory — are backed up prior to module removal using the Mitsubishi CNC data backup utility.

Spindle control is typically managed through a MDS-B-SPJ2 or MDS-A-SP Series spindle amplifier, connected to the FCA-335M via an analog ±10V reference signal or a dedicated spindle serial interface. Replacement units must be configured with identical spindle parameter sets to maintain speed accuracy and orientation function compatibility.

For facilities considering a migration to the current M80 or M800 Series platform rather than a direct FCA-335M replacement, the upgrade path requires substituting the FCA rack and backplane with an M80 Series compact control unit, re-terminating all I/O wiring to a FCU8-DX Series I/O unit or equivalent CC-Link IE Field remote I/O station, and replacing the operator panel with an M80 Series 10.4-inch color LCD display unit. The G-code programs stored on the legacy FCA system can generally be transferred with minor dialect adjustments, as the M800 Series maintains strong backward compatibility with ISO-standard G-code and Mitsubishi MELDAS macro syntax.

Signal isolation between the FCA-335M’s 24VDC I/O circuits and third-party field devices is commonly achieved using DIN-rail mounted signal isolators or relay terminal modules, which should be inspected and replaced as part of any comprehensive retrofit to ensure signal integrity on the upgraded system. Additionally, the FCA Series RS-232C programming cable with USB adapter used for parameter backup and ladder program transfer should be sourced alongside the replacement FCA-335M to enable immediate on-site commissioning without dependency on legacy PC hardware.

Where the existing control cabinet integrates third-party PLCs or safety relay modules alongside the FCA-335M, engineers should also verify that the 24VDC power supply module within the FCA rack delivers sufficient current capacity after the replacement, particularly if additional I/O expansion cards have been added since the original system commissioning. In multi-axis configurations, the FCA Series axis expansion card occupying adjacent rack slots must remain undisturbed during the FCA-335M swap to preserve axis parameter mapping and avoid re-tuning servo gains post-replacement.

Retrofit Guidance FAQ

Q: Can the FCA-335M be swapped without re-wiring the machine?
A: Yes, in a direct replacement scenario. The FCA-335M uses the same rack slot, backplane connector, and I/O pin assignments as the original unit. No wiring changes are required provided the replacement module is the same hardware revision. Verify the PCB revision label on the original unit before ordering.

Q: Do I need to reload the CNC parameters and PMC ladder after replacement?
A: Yes. The FCA-335M stores axis parameters, tool offset data, and PMC ladder programs in battery-backed SRAM. Always perform a full data backup using the Mitsubishi CNC backup tool before removing the failed module. If the original module is non-functional and backup is not possible, TOPNLMS can provide parameter restoration support based on machine model documentation.

Q: Is the FCA-335M compatible with PROFIBUS or Ethernet field networks?
A: The native FCA-335M does not support PROFIBUS-DP or Ethernet I/O natively. Communication is handled via RS-232C for programming and the proprietary Mitsubishi FCA internal bus for I/O. If your retrofit requires PROFIBUS or CC-Link integration, a migration to the M80 Series platform with appropriate network interface modules is recommended.

Q: Will the FCA-335M fit in the existing control cabinet?
A: The FCA-335M is designed for the FCA Series rack and occupies a fixed slot width. Physical dimensions are identical between replacement units of the same hardware generation. No cabinet modification is required for a direct replacement. For M80 Series migration, cabinet space assessment is required as the M80 compact unit has different mounting dimensions.

Q: How long does commissioning take after FCA-335M replacement?
A: With a pre-backed-up parameter file, a trained CNC maintenance engineer can complete module swap and parameter restore in 2–4 hours. Without a backup, full re-commissioning including axis tuning and PMC verification may require 1–2 days depending on machine complexity.

Q: What communication protocol does the FCA-335M use for servo drives?
A: The FCA-335M communicates with MDS-A/B Series servo amplifiers via the Mitsubishi proprietary SSCNET (Servo System Controller NETwork) optical or wire-based serial bus, depending on the hardware generation. Ensure the replacement module matches the SSCNET version of the installed servo amplifiers.

Warranty Assurance

Every FCA-335M unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a multi-point outgoing inspection that includes visual inspection for physical damage, PCB contamination check, connector integrity verification, and where applicable, functional power-on testing. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is reachable within 1 business day for technical queries, RMA initiation, and shipping coordination. Replacement units are dispatched from our Xiamen warehouse with priority freight to minimize your facility’s downtime exposure.

For B2B procurement teams and MRO buyers, TOPNLMS issues a formal invoice, packing list, and certificate of conformance with every shipment. Bulk orders and standing purchase agreements are supported with lead-time commitments and reserved stock allocation upon request.
