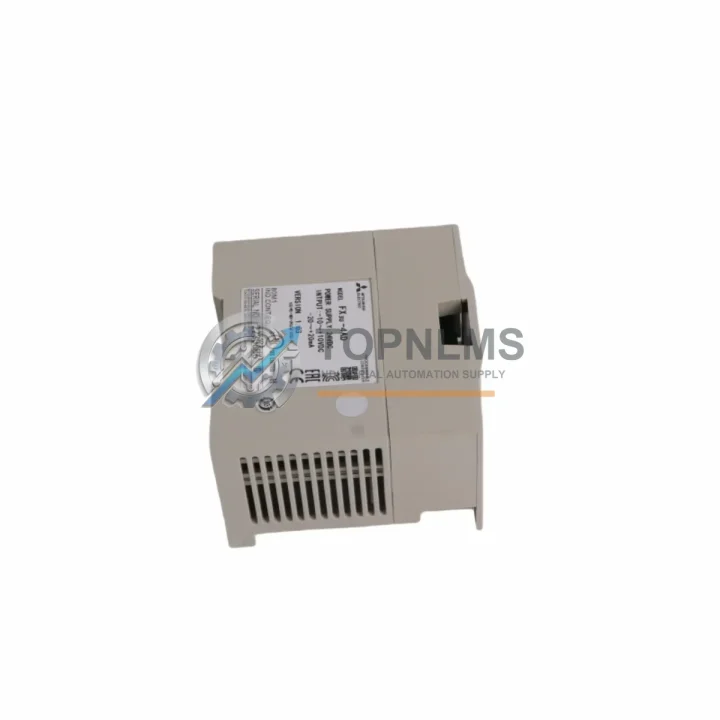

Mitsubishi Electric FX3U-4AD Original Industrial Spare FX3U Compatible

Product Overview

Mitsubishi Electric FX3U-4AD Original Industrial Spare: System Stability & Analog Signal Integrity

The Mitsubishi Electric FX3U-4AD is a 4-channel analog input expansion module designed for the MELSEC FX3U programmable logic controller series. In industrial environments where analog signal acquisition is critical — process temperature loops, pressure transducers, flow meters, and variable-speed drive feedback — the FX3U-4AD serves as the precision interface between field instrumentation and the PLC’s control logic. Sourced as an original Mitsubishi Electric spare part, this module is the correct replacement for aging or failed units in FX3U-based control systems, ensuring full compatibility without firmware conflicts, calibration drift, or signal scaling issues that can arise from non-original substitutes.

For maintenance engineers managing aging MELSEC FX3U installations, securing a verified original FX3U-4AD spare is a proactive step that directly reduces unplanned downtime risk. Analog input failures are among the most disruptive faults in process control — a single failed channel can cause a production line to halt, trigger safety shutdowns, or produce erroneous readings that cascade into quality defects. Keeping a tested, original FX3U-4AD in your spare parts inventory is a low-cost insurance policy against high-cost outages.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned inspection or emergency replacement of the FX3U-4AD, experienced maintenance teams treat the event as an opportunity to audit the broader analog signal chain and surrounding control cabinet components. A failed or degraded analog input module rarely exists in isolation — signal noise, power fluctuations, and connector corrosion affect the entire measurement loop.

Begin by inspecting the FX3U main CPU unit (such as the FX3U-32MR/ES or FX3U-64MT/ES) for firmware version compatibility and battery status. The onboard lithium battery (typically an FX3U-32BL replacement cell) should be checked and replaced on a 5-year cycle to prevent program loss during power interruptions. While the control cabinet is open, verify the condition of the FX3U-1PSU-5V power supply adapter or the external 24VDC supply rail feeding the analog module — voltage sag on the 24V bus is a common root cause of intermittent analog reading errors.

Inspect all field wiring terminations at the FX3U-4AD’s screw terminal block. Loose or oxidized connections on analog signal wires (particularly 4–20mA current loops from pressure transmitters or thermocouples) introduce offset errors that are difficult to distinguish from module failure. If the installation uses shielded twisted-pair cables, verify that shield grounding is intact and single-point grounded to avoid ground loops. For installations requiring additional analog output capability, the companion FX3U-4DA (4-channel analog output module) should be inspected simultaneously, as both modules share the same expansion bus and power rail.

For systems with digital I/O expansion, check the FX3U-16EX or FX3U-16EYR expansion I/O modules mounted adjacent to the analog module. Expansion connector pins can develop micro-corrosion in humid environments, causing intermittent communication faults that are misdiagnosed as CPU or analog module failures. Similarly, if the FX3U system communicates with upstream SCADA or HMI via RS-485 or Ethernet, inspect the FX3U-485-BD communication board or FX3U-ENET-ADP Ethernet adapter for secure seating and connector integrity.

In facilities running multiple FX3U PLCs across production cells, a proactive spare parts inventory should include at minimum one FX3U-4AD per system type, alongside the FX3U-4AD-ADP analog input adapter (for FX3UC compatibility), spare FX3U-CNV-BD conversion boards, and a set of replacement terminal block connectors. For high-criticality lines, consider stocking the FX3U-32MR/ES CPU as a cold standby — the cost of a spare CPU is negligible compared to a 24-hour production shutdown.

Strategic Replacement Solutions

The FX3U-4AD is a direct drop-in replacement for failed or end-of-life analog input modules in any FX3U-based control panel. Because Mitsubishi Electric maintains backward compatibility within the FX3U expansion bus architecture, installing an original FX3U-4AD requires no PLC program modification, no re-parameterization of buffer memory addresses (BFM #0–#32), and no recalibration of existing scaling constants — the replacement module reads the same buffer memory map as the original, ensuring zero-disruption changeover during a planned maintenance window.

For facilities managing the transition from older MELSEC FX2N systems, the FX3U-4AD is not directly compatible with FX2N expansion buses; however, upgrading the CPU to an FX3U series simultaneously resolves both the analog input requirement and extends the control system’s service life by a decade or more. This upgrade path preserves existing field wiring, I/O terminal layouts, and in many cases the original ladder logic program with minor modifications — a cost-effective alternative to full panel replacement.

In multi-line facilities where standardization reduces training and spare parts overhead, specifying the FX3U-4AD as the standard analog input module across all FX3U installations simplifies maintenance scheduling, reduces the number of unique spare part SKUs, and enables cross-plant spare sharing. Maintenance teams familiar with FX3U buffer memory programming can service any line without retraining, and a single spare FX3U-4AD covers multiple potential failure points across the facility.

Support FAQ

Q1: Is this FX3U-4AD an original Mitsubishi Electric part, and how is it tested before shipment?
Yes. Every FX3U-4AD unit we supply is sourced as an original Mitsubishi Electric component. Prior to shipment, each module undergoes functional verification including power-on self-test, analog channel signal integrity check across voltage and current input ranges, and expansion bus communication confirmation. Units that do not pass all test criteria are not shipped. A 12-month warranty is included from the date of delivery.

Q2: What is the recommended spare parts lifecycle strategy for FX3U-4AD in a production environment?
For continuous production environments, we recommend maintaining at least one FX3U-4AD spare per 3–5 installed units, with a replenishment trigger when the spare is consumed. Given that Mitsubishi Electric has announced the FX3U series as a mature product line, securing original spares now — while supply is available — is preferable to sourcing under emergency conditions. Shelf life for properly stored (dry, room temperature, anti-static packaging) PLC modules exceeds 10 years.

Q3: Can the FX3U-4AD replace a module in a running system without reprogramming the PLC?
In most cases, yes. The FX3U-4AD uses a fixed buffer memory (BFM) map that is consistent across all production revisions of the module. A hot-swap replacement during a planned shutdown requires only: power down the FX3U system, remove the failed module, install the replacement, restore power, and verify analog readings in the PLC monitoring software. No program changes are required unless the original installation used non-standard BFM configurations.

Q4: What compatibility should I verify before ordering?
Confirm that your host PLC is an FX3U or FX3UC series (FX3UC requires the FX3U-4AD-ADP adapter). The FX3U-4AD is not compatible with FX2N, FX1N, or FX5U series without additional hardware. Verify the number of expansion modules already connected to your FX3U CPU — the FX3U supports up to 8 special function modules on the right-side expansion bus. If your system is at the expansion limit, a bus architecture review is required before adding the FX3U-4AD.
