Mitsubishi Electric A616AD Original Industrial Spare MELSEC-A

Product Overview

Mitsubishi Electric A616AD Original Industrial Spare MELSEC-A: System Stability & Maintenance Value

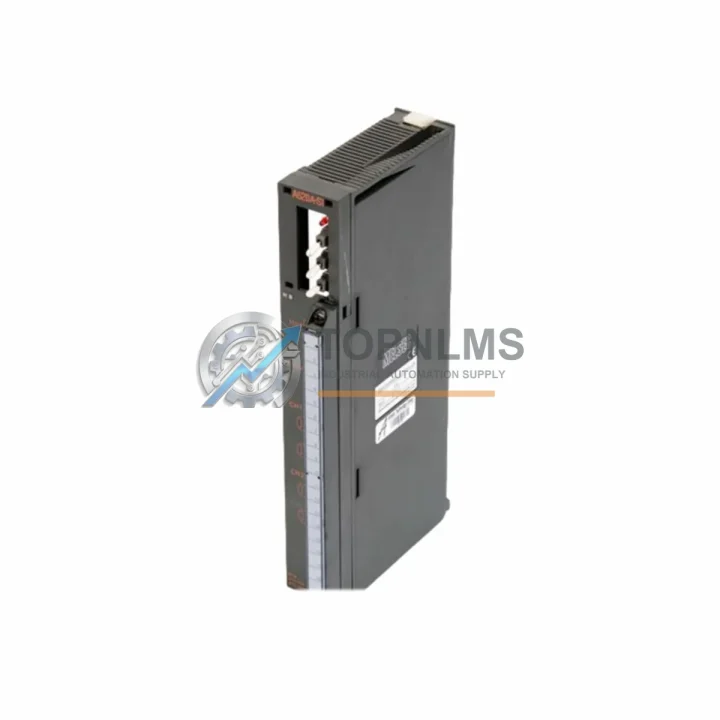

The Mitsubishi Electric A616AD is a 6-channel analog input module designed for the MELSEC-A Series programmable logic controller platform — one of the most widely deployed legacy PLC architectures in discrete manufacturing, process control, and utility automation. For maintenance engineers managing aging control systems, the A616AD represents a critical spare: its availability directly determines whether a production line can resume operation after an unplanned shutdown or scheduled overhaul.

Sourced as an original Mitsubishi Electric component, the A616AD is tested prior to shipment and backed by a 12-month warranty. Whether you are replenishing your MRO inventory, replacing a failed module during emergency maintenance, or building a preventive spare parts kit for a MELSEC-A control cabinet, this module ships ready for immediate installation.

Critical Technical Specs

Preventive Maintenance Strategy

In any MELSEC-A control system, the A616AD does not operate in isolation. It sits on a backplane alongside CPU modules, power supply units, and digital I/O modules — all of which age at similar rates and are subject to the same environmental stresses: heat cycling, vibration, humidity, and capacitor degradation. A disciplined preventive maintenance program treats the A616AD as one node in a broader system health review.

When scheduling a planned shutdown for A616AD inspection or replacement, maintenance teams should simultaneously audit the A61P or A62P power supply module — voltage ripple and output stability directly affect analog measurement accuracy. A degraded power supply can cause the A616AD to report erratic readings long before the module itself fails, leading to misdiagnosis and unnecessary downtime.

The A1SD51S or A1SJ71UC24-R2 communication module should also be checked during the same maintenance window. In systems where the MELSEC-A CPU communicates with SCADA or HMI platforms via RS-232C or RS-422, a failing communication module can mask analog data transmission errors that appear to originate from the A616AD.

For the analog signal wiring side, inspect the terminal block assemblies and shielded signal cables connecting field instruments — thermocouples, pressure transmitters, flow meters — to the A616AD input terminals. Corroded terminals or damaged cable shielding introduce noise that degrades 12-bit resolution and causes process variable drift. Replacing terminal blocks and re-terminating signal cables during the same outage eliminates a common source of recurring analog faults.

If your MELSEC-A system includes A616DA or A62DA analog output modules driving control valves or variable-speed drives, these should be bench-tested alongside the A616AD. Analog input and output modules in the same control loop share calibration dependencies; replacing one without verifying the other can introduce loop offset errors that are difficult to trace during commissioning.

The A1SCPU or A2ACPU CPU module battery should be inspected and replaced on a fixed schedule — typically every two to three years — during any planned maintenance that involves removing modules from the base unit. A low-battery condition risks loss of program memory and parameter data, which can extend a planned maintenance window into an unplanned outage.

For facilities running multiple MELSEC-A cabinets, consider stocking the A38B or A68B base unit as a cold spare. Base unit backplane connector degradation is a low-frequency but high-impact failure mode; having a spare base unit allows rapid system restoration without waiting for procurement lead times.

Finally, A1SX40 or A1SX80 digital input modules and A1SY10 or A1SY40 digital output modules in the same cabinet should be functionally tested during the same maintenance cycle. In mixed analog/digital control architectures, a failed digital output module can prevent actuator response even when the A616AD is reading process variables correctly, creating a fault condition that appears to implicate the analog subsystem.

Strategic Replacement Solutions

The MELSEC-A Series has been in service for decades, and Mitsubishi Electric has transitioned its current PLC portfolio to the MELSEC-Q and MELSEC-iQ-R platforms. This means the A616AD is no longer in active production — availability depends entirely on original stock held by specialist industrial spare parts suppliers.

For facilities that cannot migrate to a newer PLC platform due to budget constraints, system complexity, or regulatory requirements, sourcing original A616AD modules from verified suppliers is the most cost-effective path to system continuity. A genuine original module ensures full compatibility with existing ladder logic, parameter settings, and I/O assignments — no reprogramming, no recalibration, no integration risk.

Compared to third-party replacement or refurbished alternatives, an original A616AD eliminates compatibility uncertainty. The module slots directly into any MELSEC-A base unit, is recognized immediately by the CPU, and maintains the original channel-to-address mapping that your existing program relies on. For maintenance teams operating under tight shutdown windows, this plug-and-play compatibility is operationally critical.

For facilities planning a longer-term migration to MELSEC-Q or MELSEC-iQ-R, stocking one or two A616AD units as bridge spares provides insurance during the transition period. A single unplanned A616AD failure during a migration project can halt production for days if no spare is available. Holding a verified original spare eliminates that risk and gives engineering teams the flexibility to execute migration on their own schedule rather than under emergency pressure.

All A616AD units supplied by TOPNLMS are sourced as original Mitsubishi Electric components, functionally tested before shipment, and covered by a 12-month warranty. Units are shipped with appropriate anti-static packaging and documentation to support incoming inspection and traceability requirements.

Support FAQ

Q1: Is the A616AD compatible with all MELSEC-A Series base units and CPUs?
The A616AD is compatible with the full range of MELSEC-A base units including the A38B, A68B, A52B, A55B, and A58B, and is supported by MELSEC-A CPUs including the A2A, A2AS, A3A, A2U, A3U, A4U, A2USH, A3H, and A3M. If your specific base unit or CPU model is not listed, contact us with your system configuration for compatibility confirmation before ordering.

Q2: What testing is performed before shipment?
Each A616AD unit undergoes functional verification prior to dispatch, including power-on testing and channel integrity checks. Units that do not pass testing are not shipped. A test report can be provided upon request for incoming inspection purposes.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, physical impact, or operation outside specified environmental parameters. Warranty claims are processed with return shipping coordination and replacement or refund at our discretion.

Q4: How should I manage A616AD inventory for a multi-cabinet MELSEC-A installation?
For installations with three or more MELSEC-A cabinets each containing an A616AD, we recommend holding a minimum of one spare unit on-site. For critical process applications where downtime cost exceeds procurement cost within hours, holding two spares is advisable. Bulk procurement pricing is available — contact us for volume quotation.
