Mitsubishi AY81 Replacement/Upgrade Solution for MELSEC-A

Product Overview

Mitsubishi AY81 Replacement/Upgrade Solution for MELSEC-A: Smooth Transition from Legacy Systems

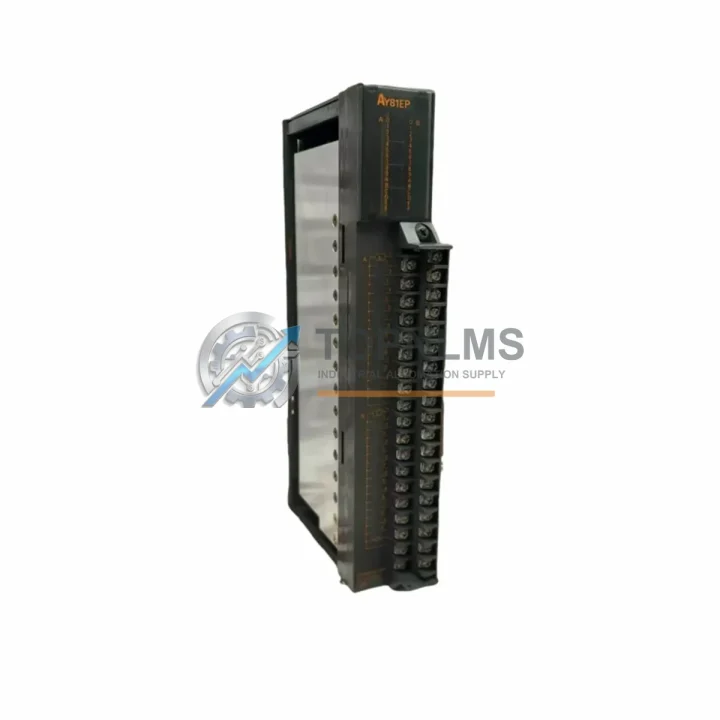

The Mitsubishi Electric AY81 is a 16-point transistor output module designed for the MELSEC-A Series programmable logic controller platform. As industrial facilities worldwide accelerate the retirement of aging A-Series control systems, the AY81 remains a critical component for both direct replacement of failed units and as a bridge module during phased migration projects. Whether your plant is maintaining an existing MELSEC-A rack or executing a controlled cutover to a newer platform, sourcing a verified AY81 with documented compatibility is the first step toward minimizing unplanned downtime.

The AY81 occupies a single slot on the standard MELSEC-A Series base unit, sharing the same backplane connector and slot pitch as other A-Series I/O modules such as the AX80 (16-point DC input) and AX40Y80C mixed I/O module. This physical interchangeability means that field engineers can swap the AY81 into an existing rack without mechanical modification, preserving the original control cabinet layout and wire-duct routing. Output wiring to field devices — solenoid valves, relay coils, indicator lamps, and variable-frequency drive enable signals — connects via the module’s 40-pin connector, which is pin-compatible with legacy AY81 installations.

From a programming perspective, the AY81 maps directly to the output (Y) device addresses already defined in your existing GX Developer or MELSEC Medoc ladder programs. No address remapping or I/O parameter changes are required when replacing a like-for-like AY81 unit. This is a significant advantage over cross-series migrations, where engineers must reconcile address offsets between the A-Series CPU — such as the A2UCPU or A3UCPU — and a replacement Q-Series or iQ-R platform. For sites that are not yet ready for a full CPU migration, the AY81 replacement extends the operational life of the existing system while long-term modernization plans are finalized.

Power supply compatibility is another key consideration. The AY81 draws its logic power from the A-Series base unit backplane, supplied by the rack’s dedicated power supply module — typically the A61P or A62P. No separate field-side power wiring to the module itself is required beyond the load voltage supplied to the output commons. Engineers should verify that the existing power supply module’s total current budget accommodates the AY81’s backplane consumption alongside other installed modules, particularly when the rack also houses analog output modules such as the DA58 or communication modules like the A1SJ71UC24-R4 serial interface unit.

For facilities undertaking a phased migration from MELSEC-A to MELSEC-Q or iQ-R architecture, the AY81 is frequently retained in service on the A-Series side of a dual-system configuration during parallel-run commissioning. During this period, the Q-Series or iQ-R CPU — connected via a QJ71C24N serial communication module or Ethernet interface — may shadow the A-Series outputs while engineers validate the new program logic against live process data. Once validation is complete, the AY81 rack is decommissioned and field wiring is transferred to the new Q-Series output module, such as the QY80 or QY81P, which offers an equivalent 16-point transistor output configuration with improved response time and diagnostic capability.

Signal isolation requirements should also be reviewed during the replacement process. In applications where the AY81 drives inductive loads or interfaces with third-party equipment operating at different voltage levels, external signal isolators or interposing relays may already be installed between the module’s output terminals and the field devices. These isolation components remain fully compatible with the replacement AY81 and do not require reconfiguration. Where isolation is not currently in place but is recommended by the updated system safety review, DIN-rail-mounted signal isolators can be added to the existing control cabinet without affecting the AY81’s wiring footprint.

All AY81 units supplied by TOPNLMS are sourced from verified industrial supply channels, individually inspected prior to dispatch, and shipped with full electrostatic discharge protection packaging. Units are available from stock in Xiamen, China, with express international freight options to minimize lead time for urgent replacement scenarios. Each unit is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AY81 replacement or migration project rarely involves a single module in isolation. In most MELSEC-A installations, the AY81 coexists with a range of complementary components that must be evaluated as part of the upgrade scope. The AX80 DC input module and AX40Y80C combined I/O module are the most common rack-mates and should be inspected for wear or intermittent faults at the same time as the AY81 replacement. The rack’s A61P or A62P power supply module should be load-tested to confirm it can sustain the full complement of installed modules without voltage droop.

For sites adding remote I/O capability during the upgrade, the A1SJ71UC24-R4 serial communication module enables the A-Series CPU to communicate with remote stations or SCADA systems using RS-232C/RS-422 protocols, extending system reach without a full CPU replacement. Where the migration roadmap includes eventual transition to Q-Series, pre-positioning a QJ71C24N communication module in the new rack during the parallel-run phase allows engineers to validate inter-system data exchange before the final cutover. Output modules on the Q-Series side — such as the QY80 transistor output module — accept the same field wiring as the AY81 after minor terminal adapter changes, simplifying the final wiring migration. Programming cable SC-09 or USB-SC09-A is required for GX Developer connection to the A-Series CPU during commissioning and should be on-hand for the replacement procedure.

Retrofit Guidance FAQ

Q: Can I replace the AY81 without modifying my existing ladder program?
A: Yes. A like-for-like AY81 replacement requires no program changes. The Y-device output addresses remain identical, and the module is recognized automatically by the A-Series CPU on power-up.

Q: Is the AY81 wiring compatible with my existing terminal block layout?
A: The AY81 uses the same 40-pin connector and terminal block arrangement as the original module. Field wiring can be transferred directly without re-termination in most cases. Verify wire labeling against the original I/O list before powering up.

Q: What communication protocol does the AY81 use?
A: The AY81 communicates via the MELSEC-A Series proprietary backplane bus. No external network configuration is required. It is not compatible with MELSEC-Q or iQ-R backplanes without a base unit change.

Q: Will the AY81 fit in my existing control cabinet without modification?
A: Yes. The AY81 occupies a single standard A-Series slot. Cabinet layout, DIN rail mounting, and wire duct routing are unaffected.

Q: How do I commission the replacement AY81 on-site?
A: Power down the rack, remove the faulty module, insert the replacement AY81 into the same slot, restore power, and perform an output force-on test via GX Developer to verify each of the 16 output points before returning the system to automatic mode.

Warranty Assurance

Every Mitsubishi Electric AY81 module supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failure under normal industrial operating conditions. Prior to dispatch, each unit undergoes a functional output test to verify all 16 transistor output channels operate within specification. Units are packaged in anti-static bags with foam cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is reachable via email and phone to support fault diagnosis, shipping coordination, and documentation for maintenance records. We understand that control system downtime carries significant operational cost, and our procurement guarantee is designed to give engineering and procurement teams confidence when sourcing critical spare parts.

Express shipping from our Xiamen warehouse is available for urgent replacement orders, with tracking provided from dispatch to delivery. Bulk orders for maintenance stock programs are supported with volume pricing and consolidated shipment options.
