Mitsubishi AY40 MELSEC-A Replacement/Upgrade Solution

Product Overview

Mitsubishi AY40 MELSEC-A Replacement/Upgrade Solution: Seamless Transition from Legacy Systems

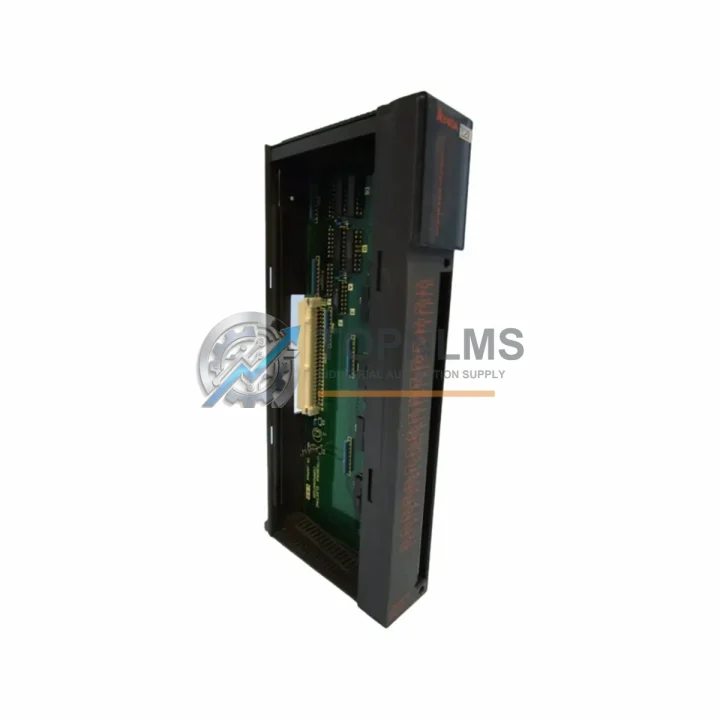

The Mitsubishi AY40 is a 32-point transistor output module designed for the MELSEC-A Series programmable logic controller platform — one of Mitsubishi Electric’s most widely deployed industrial automation architectures across Asia-Pacific, Southeast Asia, and global manufacturing facilities. As the MELSEC-A Series has reached end-of-life status, many facilities operating A2SCPU, A3NCPU, A1SCPU, or A2NCPU-based control systems are now facing the critical challenge of sourcing reliable replacement modules to sustain production continuity without committing to a full system overhaul.

TOPNLMS specializes in exactly this scenario: supplying tested, verified, and warranty-backed AY40 modules to engineers and procurement teams who need a drop-in replacement that preserves existing wiring, rack architecture, and ladder logic programs — minimizing downtime and capital expenditure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AY40 replacement or MELSEC-A system migration rarely involves a single module in isolation. In practice, field engineers working on aging A-series control cabinets encounter a constellation of interdependent components that must be evaluated together to ensure system integrity.

When replacing the AY40 output module, the adjacent AX40 or AX41 input modules — which handle the 32-point DC input side of the same I/O rack — are frequently inspected simultaneously, as they share the same backplane slot architecture and connector pinout standard. If the control cabinet also includes analog signal conditioning, the A68AD analog input module or A62DA analog output module may be part of the same rack assembly and should be verified for firmware and wiring compatibility.

For facilities where the AY40 is installed in an extension rack connected via the A1SC12B or A1SC06B extension cable, the cable integrity and termination resistors must be confirmed before commissioning the replacement module. Extension rack configurations using the A52B or A62B base units are common in larger panel installations and are fully compatible with the AY40’s slot interface.

Communication between the MELSEC-A CPU and upstream SCADA or HMI systems is typically handled through a dedicated A1SJ71UC24-R4 or A1SJ71C24-R2 serial communication module, which operates independently of the I/O modules and does not require reconfiguration when swapping the AY40. However, if the migration scope includes upgrading the CPU from an A2SCPU to an A2SCPU-S1 or transitioning to a Q-series platform, the communication module and I/O addressing scheme will require a structured migration plan.

Power supply integrity is a critical factor in any MELSEC-A retrofit. The A1S61P or A1S62P power supply module should be load-tested when adding or replacing output modules, as cumulative inrush current from transistor outputs can stress aging PSU capacitors. Replacing the power supply module in parallel with the AY40 is a best practice for systems that have been in continuous operation for more than eight years.

For programming and diagnostics during commissioning, a SC-09 RS-232 programming cable or USB-SC09-A adapter is required to connect GX Developer or GX Works2 to the A-series CPU. Online monitoring of Y-device output states allows engineers to verify that the replacement AY40 is responding correctly to ladder logic commands before returning the system to production.

If the retrofit scope extends to the HMI layer, legacy Mitsubishi F940GOT or A985GOT graphic operation terminals communicate with the A-series CPU via RS-422 and do not require driver changes when the output module is replaced at the I/O level. Signal isolation between the PLC output and field devices — particularly for long cable runs or mixed-voltage environments — can be addressed with DIN-rail-mounted signal isolators compatible with 24 VDC transistor outputs.

Retrofit Guidance FAQ

Q: Can I replace the AY40 without modifying my ladder logic program?
A: Yes. The AY40 is a direct slot-in replacement. Y-device output addresses are preserved. No program changes are required provided the replacement module is the same sink-type (NPN) variant. If substituting with an AY40A (source/PNP type), field wiring polarity at the load terminal must be reversed.

Q: Is the AY40 compatible with both A1S and A2S racks?
A: Yes. The AY40 is compatible with all standard MELSEC-A series main and extension base units, including A32B, A52B, A62B, A1S33B, A1S65B, and A1S68B configurations. Slot position does not affect module function.

Q: What communication protocol does the AY40 use?
A: The AY40 communicates via the MELSEC-A proprietary backplane bus. It does not have an independent network interface. All I/O data exchange is managed by the CPU module through the rack backplane — no additional configuration is required.

Q: How do I verify the replacement AY40 is functioning correctly after installation?
A: Connect a programming device via SC-09 cable and use GX Developer’s device monitor to force Y-device outputs ON/OFF individually. Verify load activation at each output terminal with a multimeter or indicator lamp. Check the LED status indicators on the module face for per-point output confirmation.

Q: What if my control cabinet has limited space for module removal and reinstallation?
A: The AY40 uses a standard A-series module form factor with a front-release locking lever. No tools are required for module extraction. The 40-pin connector disengages cleanly from the backplane. Cabinet depth requirements are identical to the original module.

Q: Can the AY40 be used as a long-term spare for a system being migrated to Q-series?
A: Yes. Maintaining AY40 spares during a phased Q-series migration is a common strategy. The A-series system can remain operational on the original rack while Q-series hardware is commissioned in parallel, with cutover performed during a planned maintenance window.

Warranty Assurance

Every AY40 module shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including output point actuation testing, connector integrity inspection, and visual examination for component condition. Modules that do not meet our quality threshold are not listed for sale.

In the event of a warranty claim, TOPNLMS provides direct replacement support. Our after-sales response target is within 24 business hours of claim submission. Replacement units are dispatched from our Xiamen warehouse, with express shipping options available for urgent production-critical situations.

We understand that procurement decisions for industrial control system components involve more than price — lead time certainty, documentation availability, and post-sale support are equally critical. TOPNLMS maintains stock of MELSEC-A series modules specifically to serve facilities that cannot afford extended lead times from distribution channels. Our inventory is available for immediate shipment, and we provide packing lists, commercial invoices, and country-of-origin documentation to support customs clearance for international orders.

For bulk procurement, system integrators, and MRO purchasing teams, we offer volume pricing and reserved stock arrangements. Contact our technical sales team to discuss your specific requirements.
