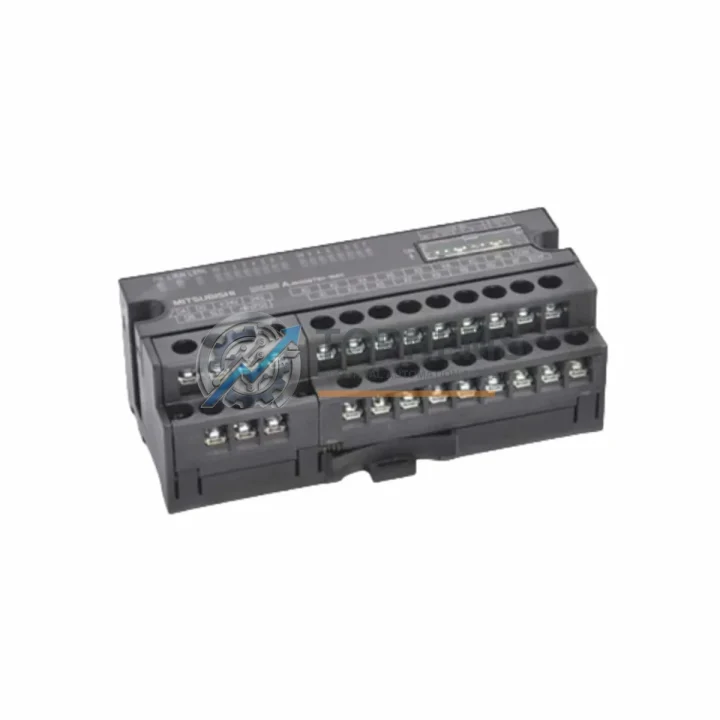

Mitsubishi AJ65MBTL1N-16D Ruggedized Remote I/O Module

Product Overview

Mitsubishi AJ65MBTL1N-16D Ruggedized Remote I/O Module: Industrial Resilience for Harsh Environments

The Mitsubishi AJ65MBTL1N-16D is a high-reliability CC-Link remote I/O module engineered for demanding industrial automation environments where signal integrity, thermal stability, and continuous uptime are non-negotiable. As part of Mitsubishi Electric’s proven MELSEC CC-Link Series, this 16-point DC input module is purpose-built to maintain stable field-level communication across distributed control architectures — even under conditions of elevated temperature, mechanical vibration, airborne particulates, and electromagnetic interference.

Designed for integration with Mitsubishi MELSEC PLC systems including the Q Series CPU modules and L Series controllers, the AJ65MBTL1N-16D connects seamlessly to the CC-Link master station, enabling deterministic, high-speed I/O scanning across the control network. Its compact, DIN-rail-mountable form factor makes it an ideal fit for space-constrained control cabinets in process plants, machine tool lines, and automated assembly systems.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, the AJ65MBTL1N-16D does not operate in isolation — it functions as a critical node within a layered protection and control ecosystem. When deployed alongside the Mitsubishi Q64RD thermocouple input module, engineers can achieve synchronized temperature monitoring and discrete I/O control within a single CC-Link segment, eliminating the latency risks associated with separate communication loops.

For applications requiring coordinated motion and safety interlocking, the AJ65MBTL1N-16D pairs effectively with Mitsubishi MR-J4 servo amplifiers and FR-A800 series variable frequency drives, both of which support CC-Link communication for centralized parameter management and fault diagnostics. In high-vibration environments such as compressor stations or press lines, the module’s robust terminal block design and conformal-coated PCB (standard on MELSEC thin-type modules) ensure long-term contact reliability without requiring frequent maintenance cycles.

Power supply stability is equally critical. The AJ65MBTL1N-16D is typically powered through a Mitsubishi Q61P or Q62P industrial power supply module, which provides regulated 24 VDC with built-in overvoltage and overcurrent protection — ensuring that field-side input signals remain clean and free from power-rail noise. In installations where ground loops or common-mode interference are a concern, pairing the module with Mitsubishi AJ65BT-64AD analog input modules and proper shielded cable routing further suppresses EMI-induced false triggering.

For safety-critical zones, the AJ65MBTL1N-16D is commonly integrated with Mitsubishi safety relay modules such as the AJ65SBTB1-16D safety-rated remote I/O variant, enabling SIL-compliant architectures where standard and safety I/O coexist on the same CC-Link network segment. Communication integrity is maintained through the AJ65BT-R2 RS-232C communication module or AJ65BT-G4-S3 gateway module for protocol bridging to PROFIBUS or DeviceNet field devices.

Terminal wiring is simplified using Mitsubishi A6TBXY36 terminal block conversion units, which reduce field wiring errors and accelerate commissioning in multi-drop I/O configurations. Together, these components form a cohesive, field-proven control cabinet solution that minimizes single points of failure and supports rapid fault isolation during unplanned shutdowns.

Application in Critical Infrastructure

The AJ65MBTL1N-16D has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas upstream operations, it monitors discrete signals from wellhead pressure switches, emergency shutdown valves, and flame detection systems — environments where module failure is not an option and mean time between failures (MTBF) is a primary procurement criterion.

In coal and metal mining, the module withstands the combined stresses of coal dust ingress, continuous mechanical vibration from conveyor drives, and wide ambient temperature swings between underground tunnels and surface control rooms. Its thin-type (TL) form factor reduces panel footprint in mobile mining equipment where space is at a premium.

At thermal and hydroelectric power generation facilities, the AJ65MBTL1N-16D is deployed in turbine control panels and auxiliary equipment monitoring systems, where it interfaces with generator protection relays and synchronization circuits. The module’s deterministic CC-Link scan cycle — typically 2.5 ms at 10 Mbps — ensures that protective trip signals are processed within the response time requirements of IEC 61511 functional safety standards.

In municipal water treatment and wastewater management, the module controls pump station I/O across geographically distributed remote terminal units (RTUs), where long cable runs and outdoor electrical enclosures introduce significant EMI and surge risks. Its compliance with IEC 61000-4-5 surge immunity standards makes it a reliable choice for these exposed installations.

Across steel and aluminum smelting operations, the AJ65MBTL1N-16D manages discrete inputs from furnace door limit switches, ladle transfer position sensors, and cooling water flow monitors — all in environments where ambient temperatures routinely exceed 45°C and radiated heat from molten metal poses a constant thermal challenge to control electronics.

Security & Quality FAQ

Q1: Does the AJ65MBTL1N-16D come with a warranty, and what does it cover?
Yes. Every AJ65MBTL1N-16D unit supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. All units undergo functional verification testing prior to shipment, including I/O point continuity checks and CC-Link communication handshake validation. Warranty claims are processed with priority turnaround to minimize your production downtime.

Q2: How do you verify compatibility with my existing MELSEC PLC system?
The AJ65MBTL1N-16D is compatible with all CC-Link Ver. 1.10 master stations, including the QJ61BT11N CC-Link master/local module and legacy AJ61BT11 masters. Compatibility is confirmed against Mitsubishi Electric’s official CC-Link partner certification database. If you provide your existing CPU model and CC-Link master module number, our technical team will verify the configuration before order confirmation at no charge.

Q3: What pre-shipment testing is performed on each unit?
Each module is tested for: (1) all 16 input point functionality under rated 24 VDC signal conditions; (2) CC-Link communication link establishment with a reference master station; (3) power consumption within rated specification; and (4) visual inspection for physical damage, connector integrity, and label accuracy. A test report is available upon request for critical infrastructure procurement.

Q4: Can you support long-term or repeat supply of the AJ65MBTL1N-16D for ongoing maintenance programs?
Yes. TOPNLMS maintains dedicated stock of high-demand MELSEC CC-Link modules to support planned maintenance, emergency breakdown replacement, and multi-site rollout programs. We offer blanket purchase order arrangements and reserved stock agreements for customers with recurring demand. Contact our team to discuss volume pricing, lead time commitments, and consignment stocking options tailored to your maintenance schedule.
