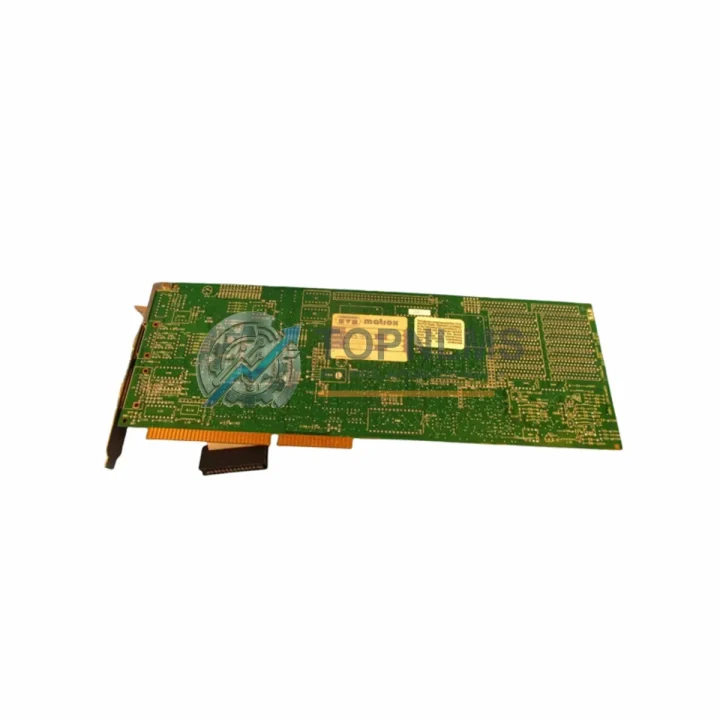

Matrox IP-8/AT/256 Replacement Upgrade for Imaging Series

Product Overview

Matrox IP-8/AT/256 Replacement Upgrade for Imaging Series: Smooth Transition from Legacy ISA Systems

The Matrox IP-8/AT/256 ISA frame capture card has served as a cornerstone of machine vision and industrial imaging systems for decades. As ISA bus infrastructure reaches end-of-life and original equipment manufacturers discontinue support, facilities running legacy Matrox Imaging Series platforms face mounting pressure to modernize without disrupting production. TOPNLMS supplies verified replacement and upgrade solutions for the IP-8/AT/256, enabling engineering teams to execute a controlled, low-risk migration from obsolete ISA-based capture hardware to current-generation Matrox Imaging architectures — while preserving existing wiring harnesses, camera interfaces, and vision application logic wherever possible.

The IP-8/AT/256 was designed for analog composite video acquisition in ISA slot-based industrial PCs. Its 256 KB on-board frame buffer and 8-bit digitization pipeline were well-suited to early machine vision inspection, robotic guidance, and process monitoring applications. Today, facilities that still depend on this card face a dual challenge: sourcing genuine replacement units for immediate continuity, and planning a longer-term migration path to PCI, PCIe, or GigE Vision-based capture platforms that align with current Matrox Imaging Series product lines.

TOPNLMS maintains verified stock of the IP-8/AT/256 for emergency replacement scenarios, with same-day dispatch from Xiamen and international express logistics to minimize unplanned downtime. Each unit undergoes functional verification prior to shipment and is covered by a 12-month warranty against manufacturing defects and operational failure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration away from the IP-8/AT/256 rarely involves swapping a single card in isolation. In practice, engineering teams must evaluate the entire signal chain and control architecture. For facilities still operating ISA-slot industrial PCs, a direct replacement IP-8/AT/256 unit from TOPNLMS provides immediate continuity while a phased migration plan is developed. Where the host PC itself is being modernized, the Matrox Meteor-II/Standard or Matrox Meteor-II/Digital offers a PCI-bus bridge for analog camera installations that are not yet ready for Camera Link or GigE conversion.

Camera-side upgrades frequently accompany frame grabber migrations. Analog cameras connected to the IP-8/AT/256 via BNC or S-Video can often be retained during an intermediate migration stage using a Matrox Solios eA frame grabber, which accepts analog composite inputs on a PCIe platform and supports the same MIL API calls used in legacy IP-8 applications. This approach allows vision application software to be validated on the new hardware before cameras are replaced.

For facilities moving to Camera Link sensors, the Matrox Solios eCL or Matrox Radient eCL provides Base, Medium, and Full Camera Link configurations with PCIe x4 bandwidth, eliminating the frame buffer bottleneck inherent in the IP-8/AT/256 design. Power delivery to Camera Link cameras is handled via the frame grabber’s PoCL (Power over Camera Link) circuit, removing the need for separate camera power supplies that were common in ISA-era installations.

GigE Vision migration paths are increasingly preferred for new installations due to cable distance flexibility. The Matrox Radient eV-CXP or a GigE Vision-compatible NIC paired with Matrox MIL X software allows existing Ethernet infrastructure to carry vision data, reducing panel wiring complexity significantly compared to the coaxial or ribbon cable runs associated with the IP-8/AT/256. Signal isolation between the camera network and the plant control network is typically achieved using an industrial managed switch with VLAN segmentation rather than a dedicated signal isolator, though DIN-rail-mounted signal conditioners remain relevant for analog sensor inputs feeding auxiliary I/O modules in the same control cabinet.

Where the IP-8/AT/256 is integrated into a broader machine control architecture — for example, triggering image acquisition from a Siemens S7-300 PLC output or a Mitsubishi MELSEC Q-series digital output module — the trigger wiring interface must be re-evaluated during migration. Modern Matrox frame grabbers accept TTL, LVDS, or opto-isolated trigger inputs via auxiliary I/O connectors, and the trigger signal routing from the PLC’s digital output card can typically be preserved with minor terminal block rewiring. TOPNLMS can advise on trigger interface compatibility for specific PLC and frame grabber combinations upon request.

Retrofit Guidance FAQ

Q: Can I install the IP-8/AT/256 replacement in a modern industrial PC?
A: The IP-8/AT/256 requires a 16-bit ISA slot. Modern industrial PCs do not include ISA slots. If your host PC has been modernized, a platform migration to a PCI or PCIe frame grabber (such as the Matrox Meteor-II or Solios series) is required. TOPNLMS supplies both direct ISA replacements for legacy hosts and migration-path alternatives.

Q: Will my existing MIL application code run on a replacement IP-8/AT/256?
A: Yes. A direct replacement unit uses the same driver and MIL API as the original card. No software changes are required for a like-for-like swap.

Q: What happens to my analog camera wiring during migration to a PCIe grabber?
A: Analog composite cameras use standard BNC or S-Video connectors. Matrox Solios eA and Meteor-II grabbers accept the same connector types, so existing camera cables can typically be reconnected without modification. Verify signal termination (75 Ω) at the new grabber input.

Q: Is the MIL software license transferable from the old IP-8/AT/256 system?
A: Matrox MIL licensing is host-PC-bound in most legacy configurations. When migrating to a new host or a new grabber generation, a new MIL license or upgrade may be required. Contact Matrox or your authorized distributor for license transfer options.

Q: How do I handle the ISA IRQ and DMA settings on a replacement card?
A: The IP-8/AT/256 uses jumper-configurable IRQ and DMA settings. TOPNLMS ships units with factory-default jumper configurations. If your system requires non-default settings due to IRQ conflicts with other ISA peripherals, jumper reconfiguration instructions are included with the shipment.

Q: Can the IP-8/AT/256 coexist with PCI cards in the same industrial PC?
A: Yes, provided the motherboard supports both ISA and PCI slots (common in late-1990s to early-2000s industrial PCs). IRQ sharing between ISA and PCI devices must be managed in BIOS. TOPNLMS recommends verifying IRQ allocation before installation.

Q: What is the physical installation space requirement?
A: The IP-8/AT/256 is a full-length ISA card. Ensure the chassis provides adequate clearance. In compact control cabinet installations where space is constrained, a migration to a half-length PCIe grabber may offer a better physical fit.

Warranty Assurance

Every Matrox IP-8/AT/256 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each card undergoes a functional verification process including power-on self-test, video input signal acquisition check, and frame buffer read/write validation. Units that do not pass verification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to return inspection confirming the defect is not attributable to installation error, ESD damage, or unauthorized modification. Warranty claims are processed within 5 business days of receiving the returned unit at our Xiamen facility.

For time-critical production environments, TOPNLMS offers advance replacement shipping — a verified replacement unit is dispatched before the defective unit is returned, minimizing production downtime. This service is available for qualified accounts upon request.

Purchasing teams can request a formal quotation, proforma invoice, and certificate of conformity for each shipment. Export documentation for international shipments is prepared in compliance with Chinese customs regulations and destination country import requirements.
