LAM Research DGF-710-031325-002 Replacement for IGS Series

Product Overview

LAM Research DGF-710-031325-002 Replacement for IGS Series: Seamless Transition & Legacy System Upgrade

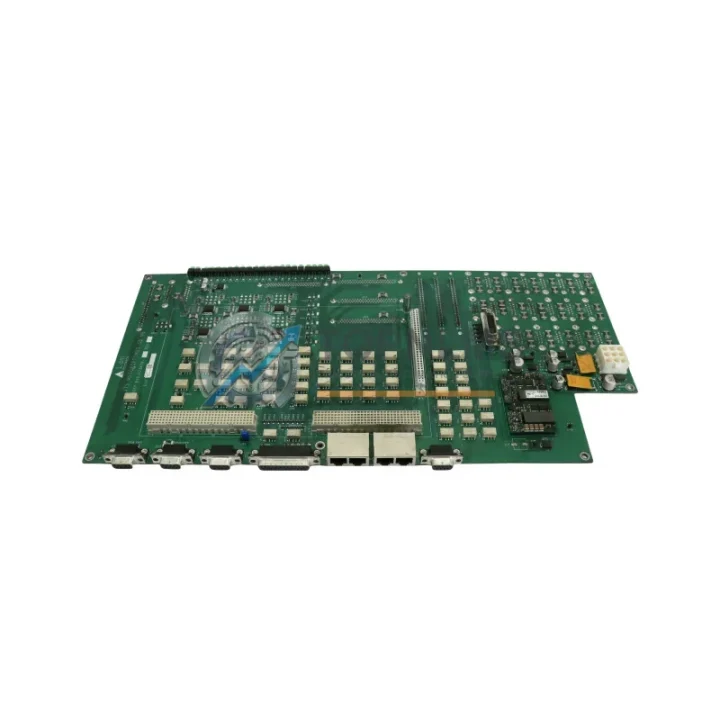

The LAM Research DGF-710-031325-002 is a 16-channel gas control motherboard designed for the IGS (Integrated Gas System) platform used extensively in semiconductor etch and CVD process equipment. As LAM Research continues to evolve its process control architecture, many fabs operating legacy IGS-based systems face the challenge of sourcing reliable, specification-accurate replacements for discontinued or end-of-life boards. TOPNLMS stocks the DGF-710-031325-002 as a verified drop-in replacement, enabling engineering teams to restore full gas delivery control without redesigning the surrounding system architecture.

The DGF-710-031325-002 motherboard serves as the central coordination layer for up to 16 independent gas channels within the IGS enclosure. It interfaces directly with downstream mass flow controller (MFC) driver cards, upstream recipe management controllers, and the chamber-level process control network. When this board fails or reaches end-of-life, the entire gas delivery subsystem becomes inoperable, making rapid, specification-matched replacement critical to minimizing unplanned downtime in high-throughput production environments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IGS gas control system restoration rarely involves replacing the DGF-710-031325-002 motherboard in isolation. In practice, field engineers undertaking a planned upgrade or emergency repair will typically audit the surrounding subsystem components at the same time. The IGS MFC driver cards that plug into the motherboard’s channel slots are a common co-failure item; replacing worn or intermittent driver cards alongside the motherboard eliminates the risk of a secondary fault shortly after the primary repair. Similarly, the IGS backplane assembly should be inspected for oxidized contacts or cracked traces, particularly on systems that have operated in corrosive process gas environments for extended periods.

On the power distribution side, the IGS power supply module providing the +5 VDC and ±15 VDC rails to the card cage is a logical inspection point during any motherboard replacement. A marginal power supply that has been stressing the original board may accelerate failure of the replacement if left unaddressed. For systems where the gas control network communicates upstream via SECS/GEM or a proprietary LAM host interface, the IGS communication interface card should be confirmed functional before returning the tool to production, as a faulty interface card can mask successful motherboard installation during initial checkout.

Facilities teams performing a broader control system modernization — moving from legacy IGS architecture toward a more current LAM process module controller — may also need to address the IGS I/O expansion modules that handle discrete valve control signals, the gas panel solenoid driver boards responsible for pneumatic valve actuation, and the process module interlock controller that monitors pressure, temperature, and flow interlocks across the gas delivery train. Where the existing HMI terminal or operator workstation is running end-of-life software tied to the legacy IGS platform, a coordinated upgrade of both the motherboard and the host-side software environment will deliver the most stable long-term outcome. Finally, for fabs maintaining a spares inventory strategy, stocking a matched set of IGS channel calibration reference modules alongside the DGF-710-031325-002 ensures that post-replacement MFC calibration can be completed on-site without waiting for additional parts.

Retrofit Guidance FAQ

Q: Can the DGF-710-031325-002 be installed without modifying existing wiring?
A: Yes. The board uses the standard IGS backplane edge connector. No field wiring changes are required. All gas channel signal routing is handled through the backplane to the individual MFC driver cards. Confirm that the backplane slot assignment matches the original board’s position before powering up.

Q: Will existing process recipes need to be re-entered after replacement?
A: In most configurations, process recipes are stored at the host controller or recipe management server level, not on the motherboard itself. After a board swap and system initialization, the host controller re-downloads the active recipe set to the IGS platform. Verify with your process engineer that the host-side recipe archive is current before performing the swap.

Q: Is the DGF-710-031325-002 compatible with all IGS communication protocol versions?
A: The board is designed for the standard IGS internal serial bus and supports SECS/GEM upstream communication as implemented in the IGS platform generation it was designed for. If your tool is running a significantly older or newer IGS firmware revision, confirm firmware compatibility with your LAM service documentation or contact TOPNLMS for pre-sale technical verification.

Q: What physical space and installation precautions are required?
A: The DGF-710-031325-002 occupies a full-length card cage slot in the standard IGS enclosure. Power down the tool completely and follow ESD handling procedures before removal and installation. No additional mounting hardware or bracket modification is required. Allow the system a full initialization cycle after installation before running process recipes.

Q: Can this board replace earlier DGF-710 revision boards?
A: The DGF-710-031325-002 is intended as a direct replacement for boards sharing the DGF-710 base part number. Minor PCB revision differences may exist; compare the revision label on the failed board with the unit shipped. TOPNLMS technical support can assist with cross-reference verification prior to order confirmation.

Q: What if the system still shows faults after board replacement?
A: Persistent faults after a confirmed good board installation typically indicate a secondary fault in an adjacent subsystem — most commonly an MFC driver card, a backplane contact issue, or a host communication fault. TOPNLMS provides post-sale technical support to assist with fault isolation during commissioning.

Warranty Assurance

Every LAM Research DGF-710-031325-002 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a functional inspection and visual quality check to confirm physical integrity, connector condition, and component completeness. Units showing any signs of damage, corrosion, or non-conformance are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS will assess the returned unit and provide either a direct replacement or a full refund, depending on stock availability and customer preference. Our after-sales response target is within 24 business hours of claim receipt. We understand that unplanned downtime in semiconductor fabrication carries significant production cost, and our warranty process is designed to minimize the time between fault identification and replacement dispatch.

For procurement teams requiring documentation, TOPNLMS can provide a certificate of conformance, packing list, and commercial invoice with each shipment. Export from Xiamen, China is handled via DHL, FedEx, or UPS Express, with typical transit times of 3–7 business days to major global destinations. Customs documentation is prepared in compliance with destination country import requirements.

For volume orders, blanket purchase agreements, or technical pre-sale consultation, contact our team directly.
