LAM RESEARCH 839-034095-301 Original Spare Etch CVD Compatible

Product Overview

LAM RESEARCH 839-034095-301 Original Spare Etch CVD Compatible: System Stability & Industrial Spare Maintenance Value

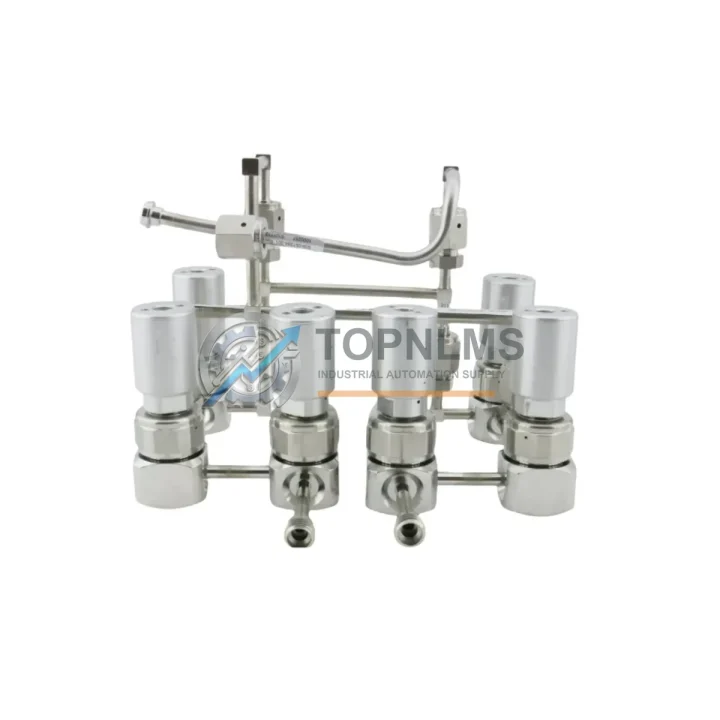

The LAM RESEARCH 839-034095-301 Five-Port Manifold Valve Assembly is a precision-engineered original spare component designed for sustained operational reliability in semiconductor Etch and CVD (Chemical Vapor Deposition) process equipment. In high-throughput fab environments, unplanned downtime caused by a failed gas delivery or valve manifold assembly can cascade into hours of lost production and costly process re-qualification. Stocking a verified original replacement — such as the 839-034095-301 — is a cornerstone of any proactive maintenance strategy for LAM RESEARCH Etch and CVD tool fleets.

This manifold valve assembly governs the precise routing and isolation of process gases within the chamber gas box. Its five-port configuration supports multi-line gas delivery architectures common in advanced Etch and CVD chambers, where gas switching speed, leak integrity, and cycle durability are non-negotiable. Whether you are managing a scheduled PM window, responding to an unplanned chamber fault, or building out your critical spare inventory ahead of a tool qualification cycle, the 839-034095-301 delivers the dimensional and functional compatibility required to restore your system to spec without process re-tuning.

Critical Technical Specs Table

Preventive Maintenance Strategy

A manifold valve assembly replacement is rarely an isolated event. In practice, when a technician opens a gas box to replace the 839-034095-301, it is the optimal moment to inspect and — where warranted — replace adjacent components that share the same PM cycle, process gas exposure, and wear profile. Overlooking these components during the same maintenance window often leads to a repeat chamber down event within weeks.

During a gas box PM that involves the 839-034095-301, experienced process engineers routinely inspect the mass flow controllers (MFCs) serving each gas line routed through the manifold, since MFC drift and valve seat wear tend to co-occur after extended process hours. The gas line filter assemblies and point-of-use purifiers upstream of the manifold should be checked for particle loading and replaced if the pressure drop across them has increased. Pneumatic solenoid valve banks that pilot the manifold actuators are another common co-failure item — a degraded solenoid can cause intermittent valve actuation faults that are misdiagnosed as manifold failures.

The VCR or Swagelok face-seal fittings and high-purity tubing segments connecting the manifold to the chamber gas inlet should be visually inspected for corrosion, discoloration, or micro-cracking, particularly in fluorine-chemistry Etch applications. Pressure transducers and capacitance manometers mounted on the gas delivery lines adjacent to the manifold are sensitive instruments that benefit from recalibration or replacement during the same PM window. If the tool uses a gas panel interlock relay module or safety interlock PCB to monitor manifold valve position feedback, verifying its signal integrity during reassembly prevents nuisance faults after restart.

For CVD applications, the precursor delivery lines and ampoule valve assemblies that feed into the manifold zone should be inspected for deposition buildup or seal degradation. Exhaust isolation valves and foreline butterfly valves downstream of the chamber also experience correlated wear in high-cycle CVD processes and are worth including in the PM scope. Finally, the chamber lid seal and process kit components — including the edge ring, focus ring, and liner — should be assessed for replacement eligibility while the tool is already in a down state, maximizing the value of each maintenance window and minimizing the frequency of future unplanned outages.

Strategic Replacement Solutions

The 839-034095-301 is cross-referenced against several alternate part numbers — including 839-034098-101, 0190-50951, 6LV-BNBW4-C, and 0050-09639 — reflecting its use across multiple LAM RESEARCH tool generations and regional BOM revisions. This cross-reference coverage means that facilities managing mixed-vintage Etch and CVD fleets can consolidate their spare inventory around a single verified assembly, reducing the number of unique line items in their critical spare stock and simplifying procurement cycles.

For fabs operating older LAM RESEARCH Etch or CVD tools that are no longer under OEM service contracts, sourcing original spare assemblies like the 839-034095-301 through a qualified industrial spare supplier is the most cost-effective path to extending tool life without committing to a full chamber refurbishment. The original OEM design ensures that gas flow coefficients, actuation timing, and leak-check acceptance criteria remain within the process window established during tool qualification — a critical consideration when the alternative is a non-OEM substitute that may require process re-characterization.

Facilities with aggressive uptime targets benefit from maintaining at least one 839-034095-301 in on-site critical spare inventory, staged and ready for same-shift installation. The combination of pre-shipment functional testing, helium leak verification, and a 12-month warranty from TOPNLMS provides the procurement confidence needed to justify stocking this assembly as a strategic spare rather than a reactive purchase.

Support FAQ

Q1: Is the 839-034095-301 a new original part or a refurbished assembly?
All units supplied by TOPNLMS are original spare assemblies sourced from authorized supply channels. Each unit undergoes functional actuation testing and helium leak verification prior to shipment. Condition and traceability documentation are available upon request.

Q2: What is the warranty coverage and what does it include?
The 839-034095-301 carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from improper installation, process chemistry exposure beyond rated limits, or unauthorized modification.

Q3: How do I verify compatibility with my specific LAM RESEARCH tool configuration?
Compatibility should be confirmed against your tool’s Bill of Materials (BOM) or the chamber gas box assembly drawing. The cross-reference SKUs (839-034098-101, 0190-50951, 6LV-BNBW4-C, 0050-09639) can assist in identifying applicable tool configurations. Contact our technical team at [email protected] with your tool model and BOM revision for confirmation before ordering.

Q4: What is the typical lead time and how is the part packaged for shipment?
In-stock units are dispatched within 1–3 business days. The assembly is packaged in anti-static, moisture-barrier packaging with foam cushioning to protect precision-machined surfaces and sealing faces during international transit. Tracking information is provided upon dispatch. Express shipping options are available for urgent maintenance requirements.
