LAM RESEARCH 715-330825-007 Ruggedized Chamber Kit 9600PTX: Industrial Resilience for Harsh Semiconductor Environments

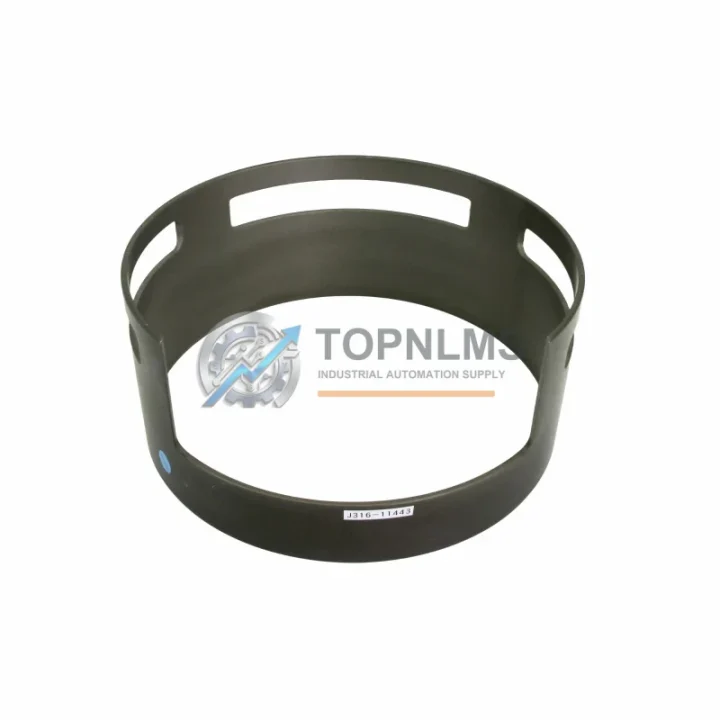

The LAM RESEARCH 715-330825-007 Chamber Reanodized Kit is a precision-engineered replacement component designed for the LAM RESEARCH 9600PTX Plasma Etch System — one of the most demanding semiconductor process platforms in high-volume wafer fabrication. Operating inside a plasma etch chamber means continuous exposure to corrosive process gases, high-frequency RF energy, elevated temperatures, and aggressive chemical environments. This reanodized chamber kit restores the protective anodized surface layer that shields aluminum chamber walls from plasma erosion, chemical attack, and particle contamination, ensuring process stability and equipment longevity in the most unforgiving fab conditions.

Semiconductor process chambers are among the harshest operating environments in any industrial setting. Plasma etch processes generate reactive species — fluorine, chlorine, and oxygen radicals — that aggressively attack unprotected metal surfaces. The 715-330825-007 kit addresses this directly: the reanodized coating provides a dense, hard aluminum oxide barrier that resists chemical penetration, reduces metallic contamination of the wafer surface, and extends mean time between preventive maintenance (MTBM) cycles. For fabs running 24/7 production schedules, this translates directly into higher uptime, lower cost of ownership, and more consistent etch uniformity across wafer lots.

The 9600PTX platform integrates tightly with a range of subsystems that depend on chamber integrity for reliable operation. The RF match network and generator assembly — including components such as the LAM RESEARCH EMGA-60-P-G5-SAS-55 RF match unit — require a stable, low-contamination chamber environment to maintain impedance matching accuracy and prevent arcing events. Similarly, the electrostatic chuck (ESC) and its associated power supply rely on consistent chamber wall conditions to maintain wafer clamping uniformity. The cable harness assembly referenced as CABLES 550111 and the motion/sensor module EMMS-AS-55-M-LS-TM are integral to chamber lift, slit valve, and endpoint detection functions — all of which perform most reliably when chamber particle levels are minimized through proper surface maintenance.

Beyond the chamber itself, the broader 9600PTX system architecture includes the IC693PWR3215 power supply module, which provides regulated DC power to the system’s control electronics and I/O subsystems. Stable power delivery is critical in a plasma etch environment where RF interference and ground loops can introduce noise into control signals. The chamber reanodization process contributes to overall system electromagnetic cleanliness by maintaining proper grounding contact between chamber components and the system frame, reducing the risk of RF leakage that could affect sensitive control electronics, endpoint detection sensors, and process recipe execution.

In critical semiconductor infrastructure — including logic foundries, memory fabs, MEMS production lines, and advanced packaging facilities — unplanned chamber downtime carries severe financial consequences. A single etch tool running at full utilization can process hundreds of wafers per day; any unscheduled maintenance event disrupts production scheduling, impacts yield, and triggers costly expedite fees across the supply chain. Maintaining an inventory of qualified replacement parts such as the 715-330825-007 Chamber Reanodized Kit is a standard best practice for fab equipment engineers and process integration teams managing tool availability targets.

The 715-330825-007 kit is also relevant in refurbishment and tool requalification scenarios. When a 9600PTX system is relocated, recommissioned after extended storage, or upgraded to support a new process node, chamber reanodization is a standard step in the requalification checklist. Paired with replacement of consumable components such as focus rings, edge rings, and upper electrode assemblies, the reanodized chamber kit helps restore the tool to a baseline process condition that meets OEM specifications for etch rate, uniformity, and selectivity.

TOPNLMS maintains verified stock of the LAM RESEARCH 715-330825-007 and associated 9600PTX system components. Each unit undergoes pre-shipment inspection to confirm part number accuracy, physical condition, and packaging integrity. Orders are processed promptly with full traceability documentation, and all parts are covered by a 12-month warranty against defects in materials and workmanship. Our team supports B2B procurement for fab equipment engineers, MRO buyers, and equipment resellers worldwide.

Rugged Specifications Table

Comprehensive Protection Solutions

The 715-330825-007 Chamber Reanodized Kit is most effective when deployed as part of a structured preventive maintenance program for the 9600PTX platform. Chamber surface integrity directly affects the performance of adjacent subsystems. The EMGA-60-P-G5-SAS-55 RF match network maintains plasma ignition stability and power delivery efficiency — a clean, properly anodized chamber wall reduces impedance variability and protects the match unit from arcing stress. The EMMS-AS-55-M-LS-TM motion and sensor module governs slit valve actuation and wafer transfer sequencing; particulate contamination from a degraded chamber surface can trigger sensor faults and interrupt automated wafer handling routines.

The CABLES 550111 harness assembly interconnects chamber sensors, heaters, and actuators to the system controller — maintaining signal integrity in a high-RF, high-temperature environment requires that all grounding paths through the chamber remain low-resistance and free of oxide buildup on contact surfaces. The IC693PWR3215 power supply module, which supports the system’s control electronics, benefits from a stable RF environment that a well-maintained chamber provides. In broader 9600PTX system maintenance, engineers also routinely service the upper electrode assembly, the focus ring, the edge ring, the chamber liner, the gas distribution plate, and the throttle valve assembly — all of which interact with the chamber wall condition addressed by this reanodized kit. Sourcing these components from a single qualified supplier simplifies procurement, reduces lead time risk, and ensures cross-component compatibility within the same tool generation.

Application in Critical Infrastructure

The LAM RESEARCH 9600PTX Etch System is deployed across some of the most demanding semiconductor manufacturing environments globally. In logic foundry applications — including advanced node gate and contact etch processes — chamber condition directly impacts critical dimension (CD) control and etch profile uniformity. In DRAM and NAND memory fabs, where etch selectivity between dielectric and conductor layers is tightly controlled, chamber wall contamination can shift process baselines and trigger yield excursions. In MEMS and power device fabrication, deep silicon etch processes place extreme demands on chamber surfaces due to the high-power, long-duration plasma exposures involved.

Beyond semiconductor fabs, the 9600PTX platform and its associated components are also found in advanced packaging facilities, compound semiconductor lines (GaAs, GaN, SiC), and research institutions operating pilot-scale process development tools. In all of these environments, the ability to rapidly restore chamber condition through a qualified reanodized kit — rather than waiting for OEM depot repair — is a significant operational advantage. TOPNLMS supports procurement teams at IDMs, foundries, OSATs, and equipment resellers with verified inventory, fast order processing, and technical documentation to support incoming inspection and installation.

Security & Quality FAQ

Q: What warranty coverage is provided for the LAM RESEARCH 715-330825-007?
A: All units shipped by TOPNLMS are covered by a 12-month warranty against defects in materials and workmanship from the date of shipment. If a part is found to be defective within the warranty period, we will arrange replacement or refund in accordance with our standard warranty policy. Contact [email protected] to initiate a warranty claim.

Q: How is the 715-330825-007 inspected before shipment?
A: Each unit undergoes a pre-shipment inspection that includes part number verification against the physical label and packaging, visual inspection for surface damage, coating integrity check, and secure packaging to prevent transit damage. Traceability documentation is available upon request for incoming inspection purposes.

Q: Is the 715-330825-007 compatible with all 9600PTX configurations?
A: The 715-330825-007 Chamber Reanodized Kit is designed for the LAM RESEARCH 9600PTX Plasma Etch System platform. Compatibility with specific chamber configurations (e.g., 200mm vs. 300mm, specific process module variants) should be confirmed against your tool’s BOM or by contacting our technical team at [email protected] or +86 18359293191 prior to ordering.

Q: Can TOPNLMS support long-term or recurring supply of this part?
A: Yes. TOPNLMS maintains ongoing inventory of 9600PTX system components and can support scheduled procurement programs, blanket orders, and emergency expedite requests. We work with fab MRO teams, equipment engineers, and resellers to ensure consistent availability of critical replacement parts. Reach out to discuss volume pricing and supply agreements.
